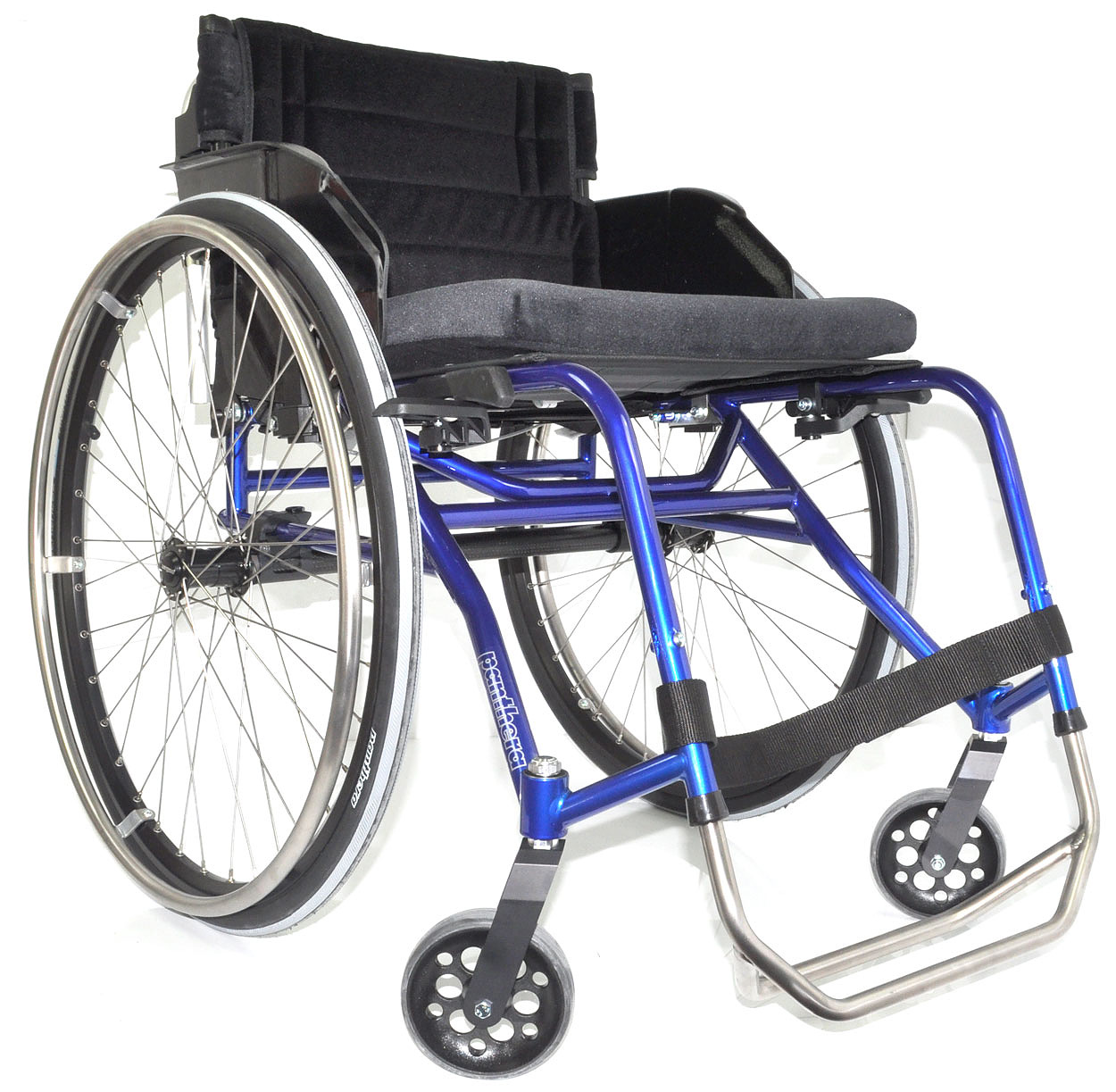

PANTHERA S2

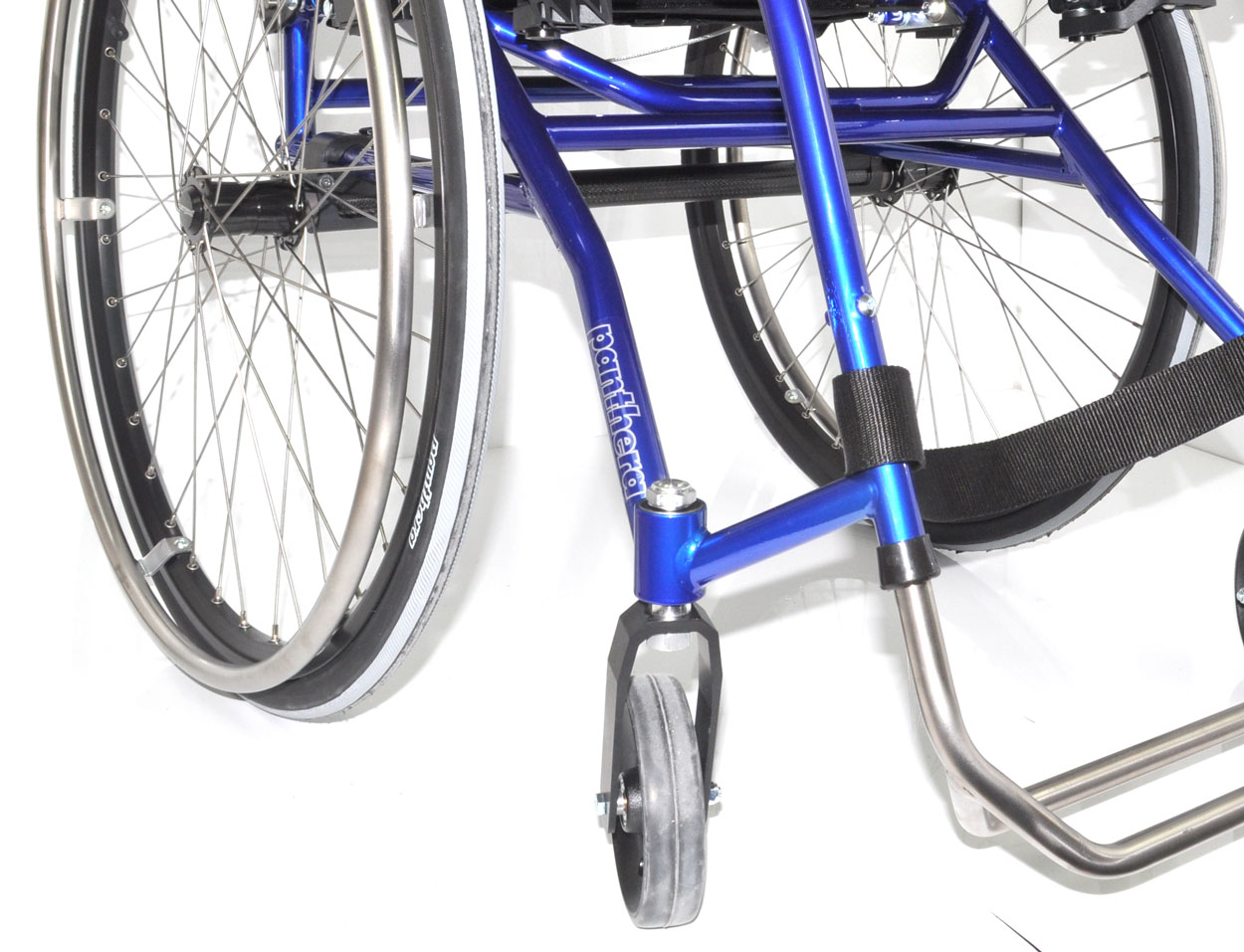

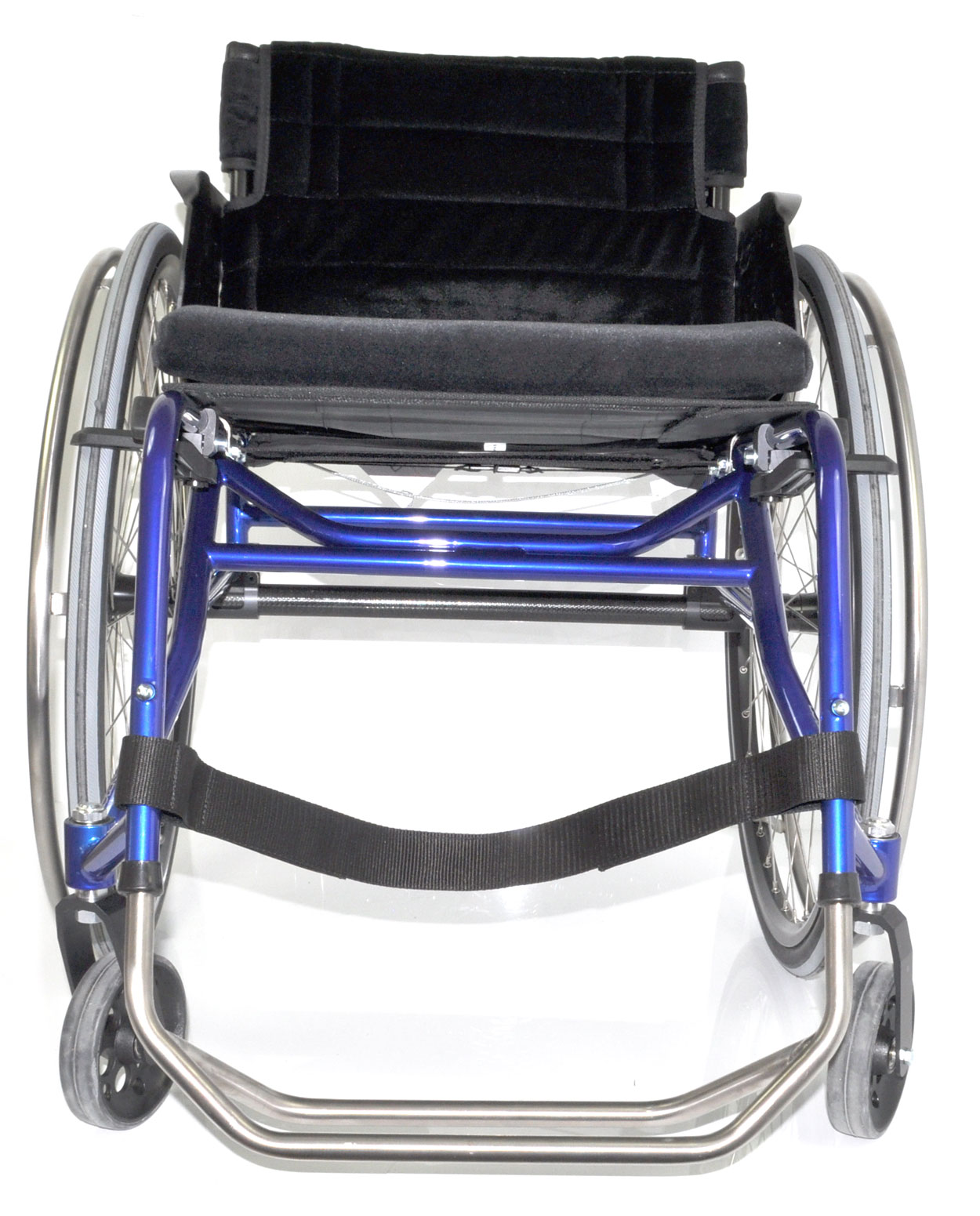

Panthera S2 is our standard model. Panthera S2 replaces the previous model Panthera Standard. S2 has a full frame width at the front and is 5 cm shorter than Panthera Standard. The front wheels are placed further out which provides plenty of room for the feet and prevents the caster wheels from catching on your heels. We have also remoulded the tubing of the chassis to allow for free space behind the legs, an improvement especially designed for users with a kick technique. The new moulding also makes it easier to assemble alternative foot rests as required. Panthera S2 is shorter than Panthera Standard since we have positioned the footrest 5 cm further back.
You are here: start / products / S2 family / S2
TRANSPORT WEIGHT: from 4744 g

FACTS S2


Model code G348 G348 G348 G348 G348 G348
A Seat width cm 33 36 39 42 45 50
B Total width 54 57 60 63 66 71
C Total length cm 78-90 78-90 78-90 78-90 78-90 78-90
D Total height cm 64-84 64-84 64-84 64-84 64-84 64-84
E Seat angle degrees 7° 7° 7° 7° 7° 7°
F Seat height rear cm 43 43 43 43 43 43
G Seat height front cm 47 47 47 47 47 47
H Seat depth cm 40 40 40 40 40 40
I Backrest angle back - forwards 11,5° -( -7,3°) 11,5° -( -7,3°) 11,5° -( -7,3°) 11,5° -( -7,3°) 11,5° -( -7,3°) 11,5° -( -7,3°)
J Backrest height cm 20 - 45 20 - 45 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height mm min - max 35 - 115 35 - 115 35 - 115 35 - 115 35 - 115 35 - 115
L Footrest angle degrees 105° 105° 105° 105° 105° 105°
M Width cm 46 49 52 55 59 64
N Length cm 75 75 75 75 75 75
O Height cm 38 38 38 38 38 38
  Weight
Total (g) 8300 8360 8420 8480 8716 8776
  Transport (g) 4744 4804 4864 4924 5160 5220
  User weight (kg) 100 100 100 100 150 150
STANDARD DESIGN Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum tubing Width 33 3483300BLG 3483300G
Rear axle Carbon Width 36 3483600BLG 3483600G
Balancing Ungraded adjustable Width 39 3483900BLG 3483900G
Rear wheels 24"  Width 42 3484200BLG 3484200G
Push rim Titanium Width 45 3484500BLG 3484500G
Brakes High brake  Width 50 3485000BLG 3485000G
Castors 5"
Foot rest Titanium
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual

ACCESSORIES S2

PUSH HANDLES
CUSHION
ARM REST
SIDEGUARD WITH COVER
SIDEGUARD PLAST
ANTI-TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTORS
OTHERS

PARTS S2

Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
