PANTHERA S2 SWING

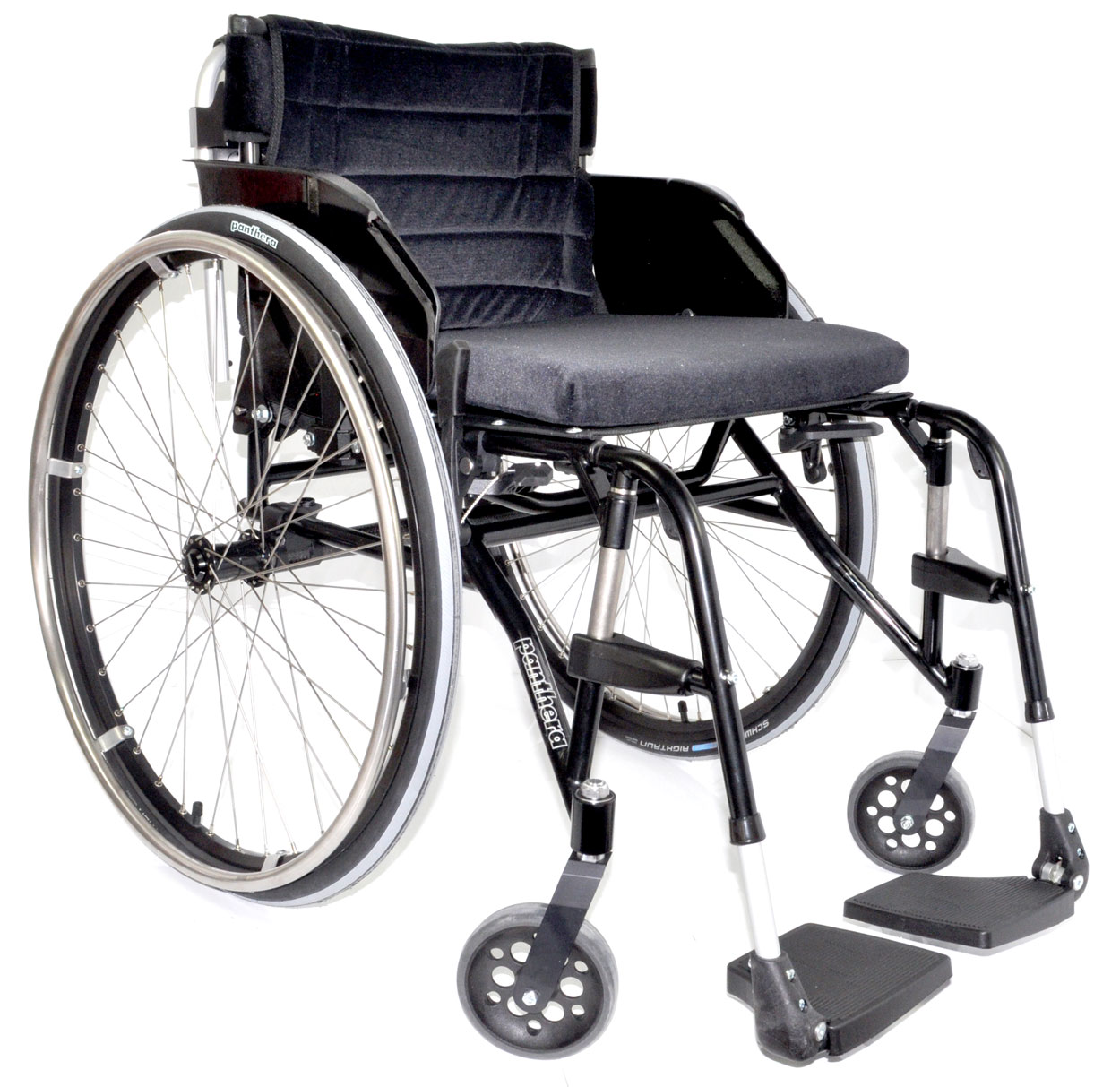

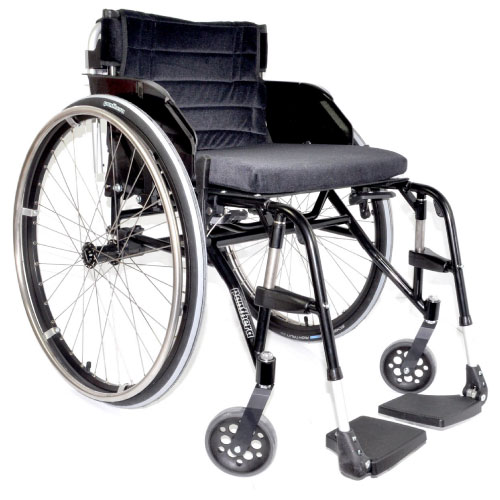

Panthera S2 Swing is intended for those who need an easy to drive wheelchair with good seating, driving and lifting properties combined with movable leg supports. This wheelchair has all the positive properties of an active wheelchair with a stable construction in lightweight class, along with discreetly and compactly designed movable leg supports. This wheelchair has movable leg supports and foldable footrests in the standard design. The locking mechanism for the leg supports is discreet and practically integrated with an easy to handle construction in the tubing of the leg support. With an easy hand movement you can swing aside or remove one or both of the leg supports to allow you to kick yourself forward and to enable easy transfers. Panthera S2 Swing has a seat angle of 4 degrees which allows new options for finding a good seating position also for those who kick drive or need a flatter sitting position for other reasons. The new high brake is discreetly positioned along the frame tubing and does not get in the way when you transfer. The brakes can be finely adjusted without using tools. S2 Swing is designed to be light for lifting in and out of your car. Small outer dimensions make the chassis the lightest model with movable leg supports on the market. The rear axle tie rod is designed to give you a sound and balanced grip when lifting the chair into your car.
Highslide JS
You are here: start / products / S2 swing family / S2 swing
TRANSPORT WEIGHT: from 6104 g

FACTS S2 SWING


  Model code G347 G347 G347 G347
A Seat width cm 36 39 42 45
B Total width 57 60 63 66
C Total length cm 78-90 78-90 78-90 78-90
D Total height cm 64-84 64-84 64-84 64-84
E Seat angle degrees 4° 4° 4° 4°
F Seat height rear cm 43 43 43 43
G Seat height front cm 45 45 45 45
H Seat depth cm 40 40 40 40
I Backrest angle back - forwards 7°- 8,5° 7°- 8,5° 7°- 8,5° 7°- 8,5°
J Backrest height cm 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height mm min - max 60-140 60-140 60-140 60-140
L Footrest angle degrees 105° 105° 105° 105°
M Width cm 49 52 55 59
N Length cm 64 64 64 64
O Height cm 38 38 38 38
  Weight
Total (g) 9660 9720 9780 10016
Transport (g) 6104 6164 6224 6460
User weight (kg) 100 100 100 150
STANDARD DESIGN Art.nr. för konfigurering. ej separat beställbart
Chassis Chrome molybdenum Bredd 36 3473600G
Rear axle Carbon Bredd 39 3473900G
Balancing Ungraded adjustable   Bredd 42 3474200G
Rear wheels 24"  Bredd 45 3474500G
Push rim Titanium
Brakes High brake
Castors 5"
Foot rest Devided foldable
Back rest Vinkelställbar steglös
Back rest upholstery Ungraded adjustable angle
Others Calf band, Tool kit, Manual

ACCESSORIES S2 SWING

PUSH HANDLES
CUSHION
ARM REST
SIDEGUARD WITH COVER
SIDEGUARD PLAST
ANTI-TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTORS
OTHERS

PARTS S2 SWING

Fotplattor Broms Fotstöd Framgaffel Drivhjul Bakaxel Rygglås Rygg Sits Chassi Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
