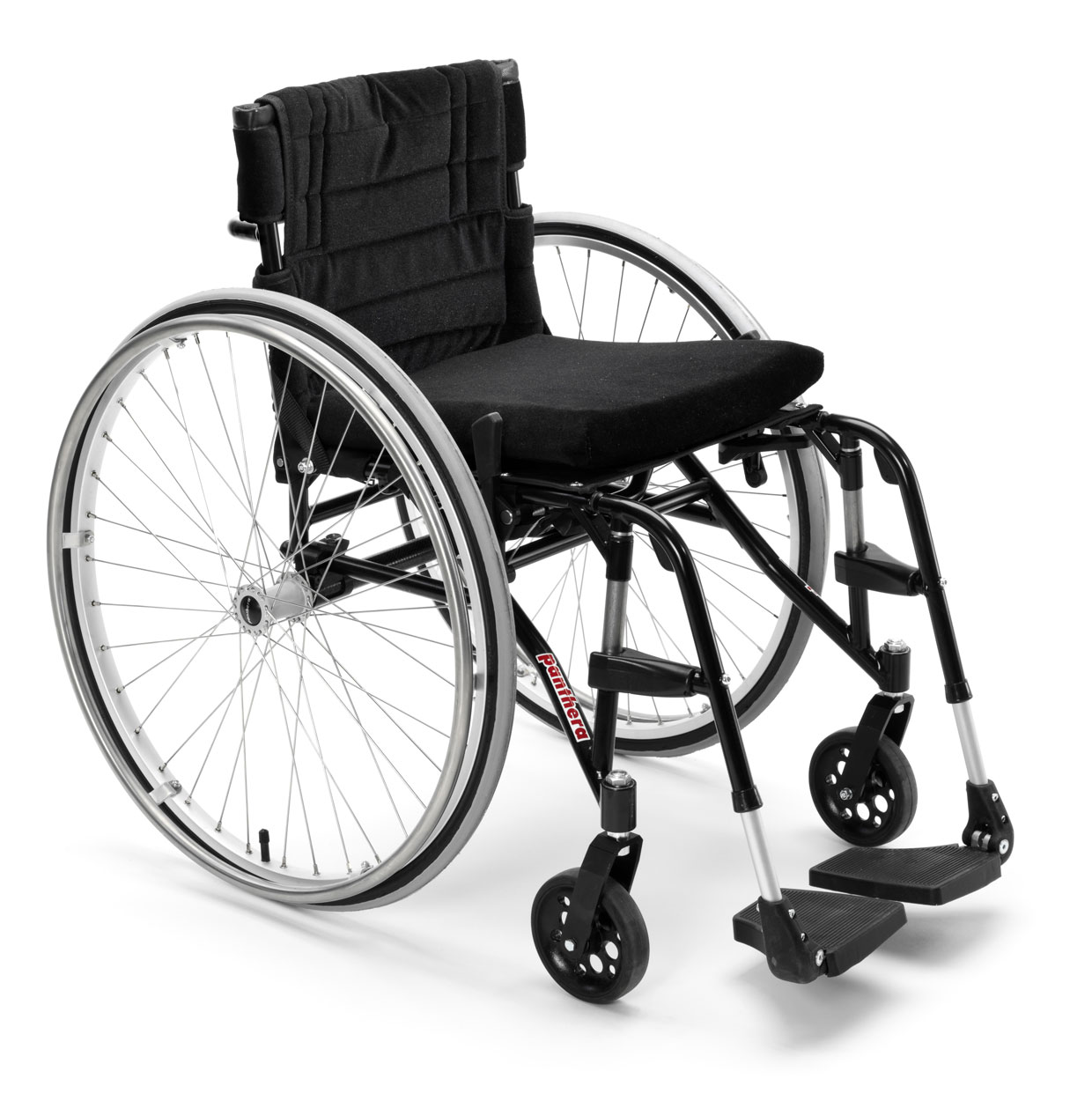

PANTHERA S2 SWING SHORT

Panthera S2 Swing short is a common adaptation of the standard S2 Swing that now becomes a permanent member in the S2 Swing family.  Delivery time and price will be the same as a standard S2 Swing.  The chassis is shortened 50 mm compared to a standard S2 Swing, to better suit the smaller users. Otherwise  the chassis has the same design as the standard S2 Swing.
Highslide JS
You are here: start / products / S2 swing family / S2 swing short
TRANSPORT WEIGHT: from 5904 g

FACTS S2 SWING SHORT

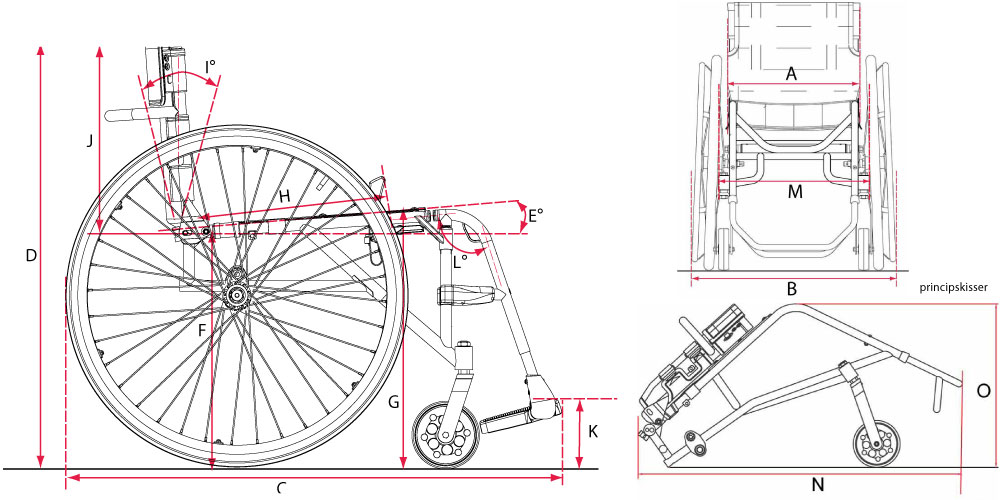

  Model code G353 G353 G353 G353
A Seat width cm 33 36 39 42
B Total width 54 57 60 63
C Total length cm 73-85 73-85 73-85 73-85
D Total height cm 64-84 64-84 64-84 64-84
E Seat angle degrees 4° 4° 4° 4°
F Seat height rear cm 43 43 43 43
G Seat height front cm 45 45 45 45
H Seat depth cm 35 35 35 35
I Backrest angle back - forwards 7°- 8,5° 7°- 8,5° 7°- 8,5° 7°- 8,5°
J Backrest height cm 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height mm min - max 60-140 60-140 60-140 60-140
L Footrest angle degrees 105° 105° 105° 105°
M Width cm 46 49 52 55
N Length cm 59 59 59 59
O Height cm 38 38 38 38
  Weight
Total (g) 9460 9520 9580 9640
Transport (g) 5904 5964 6024 6084
User weight (kg) 100 100 100 100
STANDARD DESIGN Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum Bredd 33 3533300BLG
Rear axle Carbon Bredd 36 3533600BLG
Balancing Ungraded adjustable   Bredd 39 3533900BLG
Rear wheels 24"  Bredd 42 3534200BLG
Push rim Titanium
Brakes High brake
Castors 5"

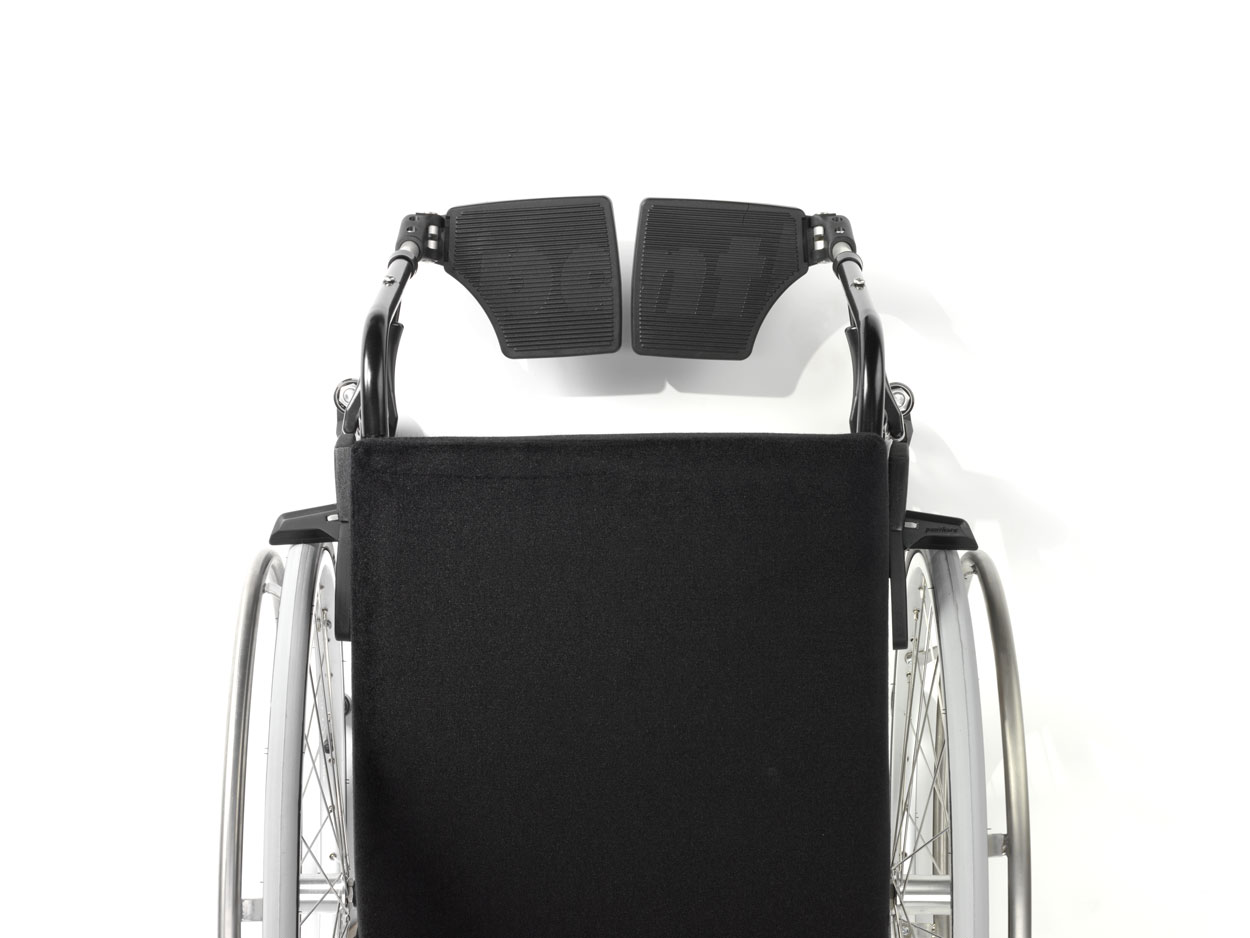

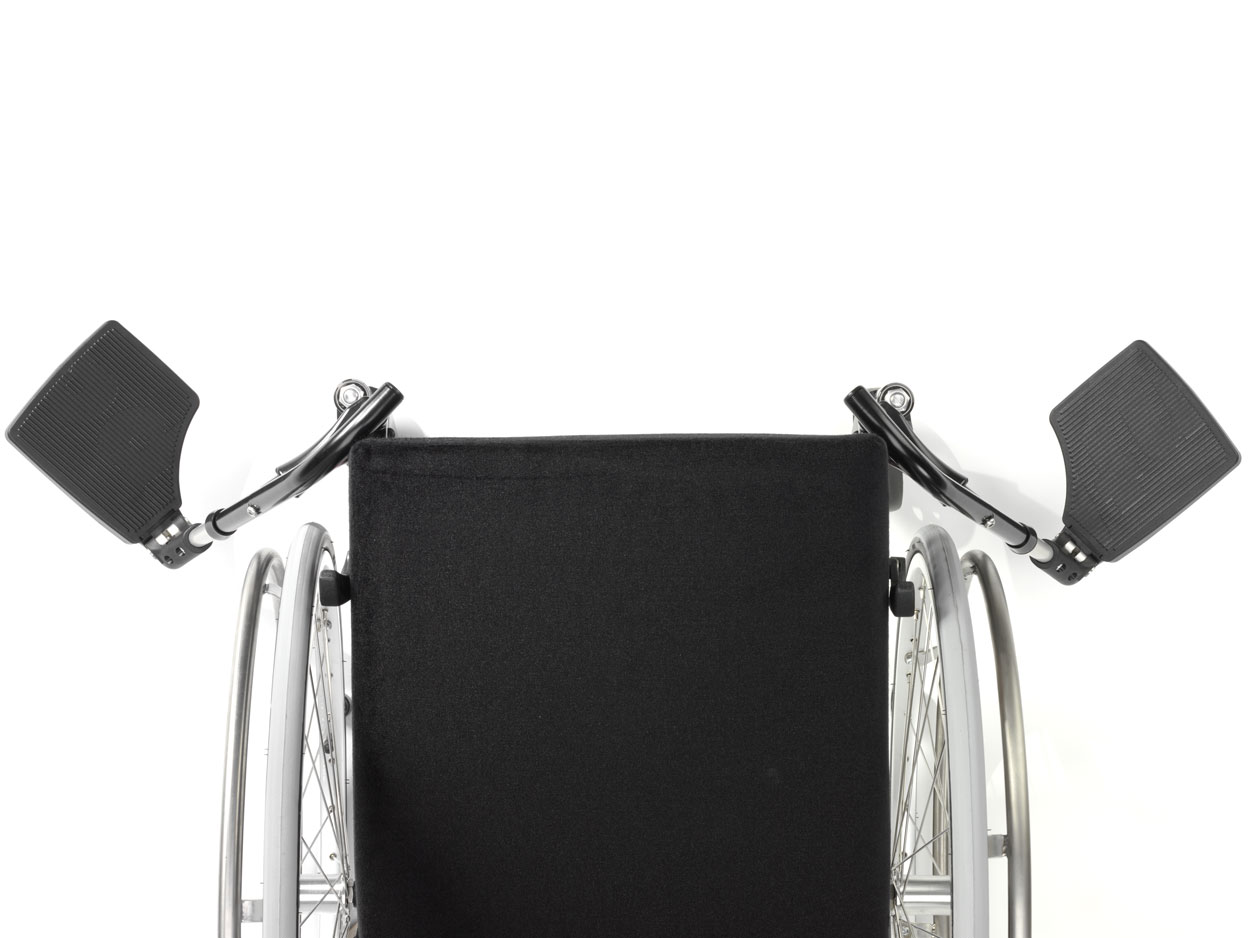

Foot rest Devided foldable
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual

ACCESSORIES S2 SWING SHORT

PUSH HANDLES
CUSHION
ARM REST
SIDEGUARD WITH COVER
SIDEGUARD PLAST
ANTI-TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTORS
OTHERS

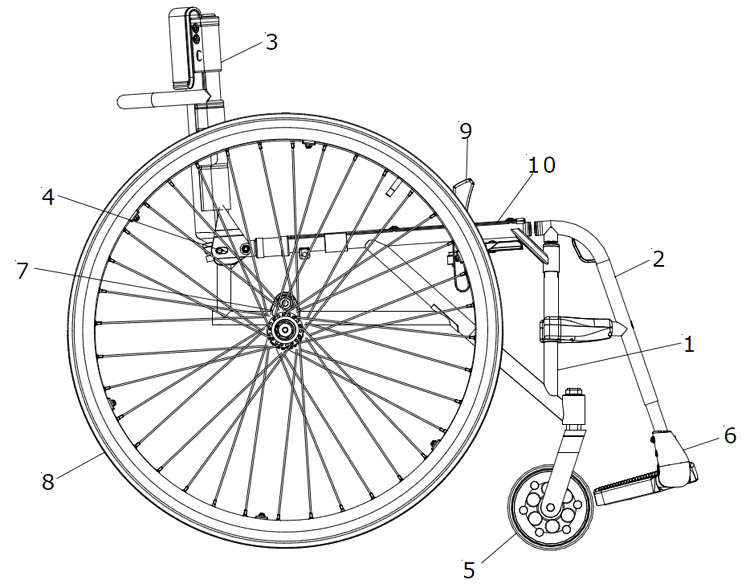

PARTS S2 SWING SHORT

Fotplattor Broms Fotstöd Framgaffel Drivhjul Bakaxel Rygglås Rygg Sits Chassi Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
