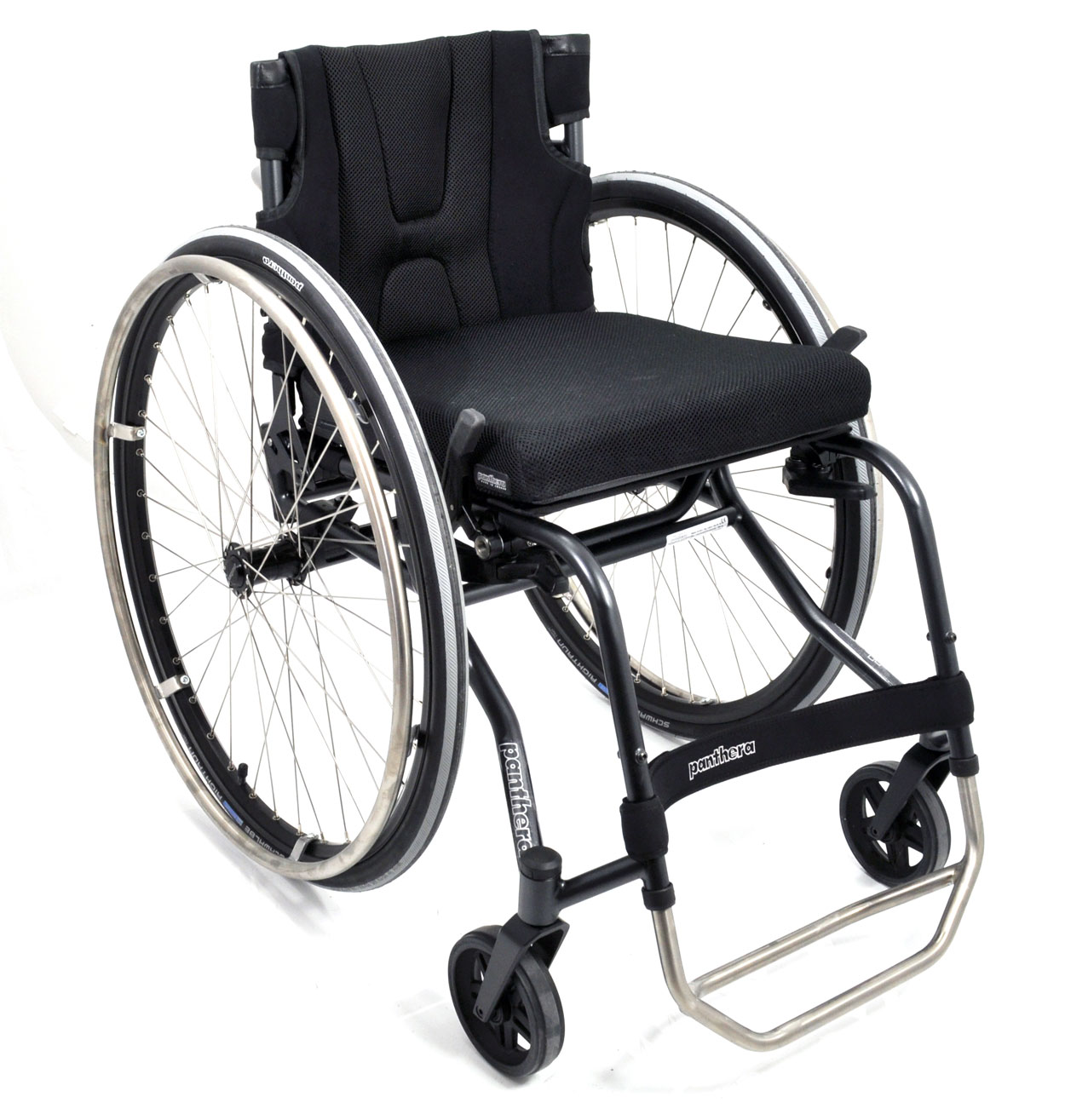

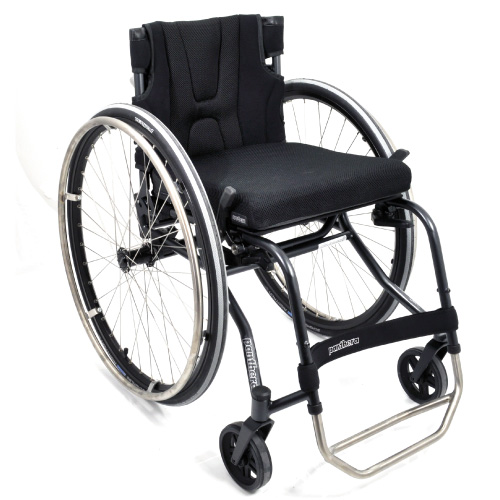

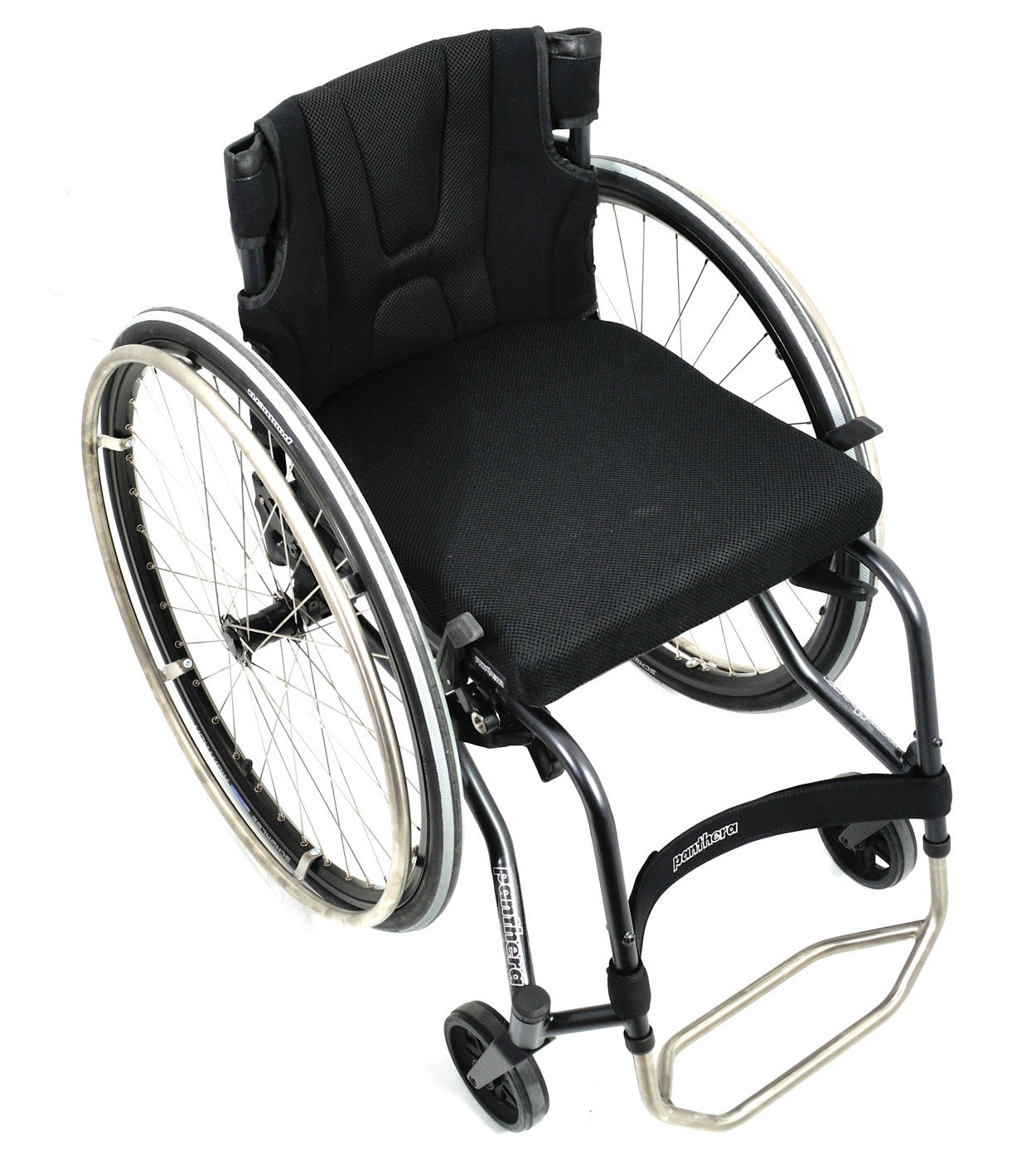

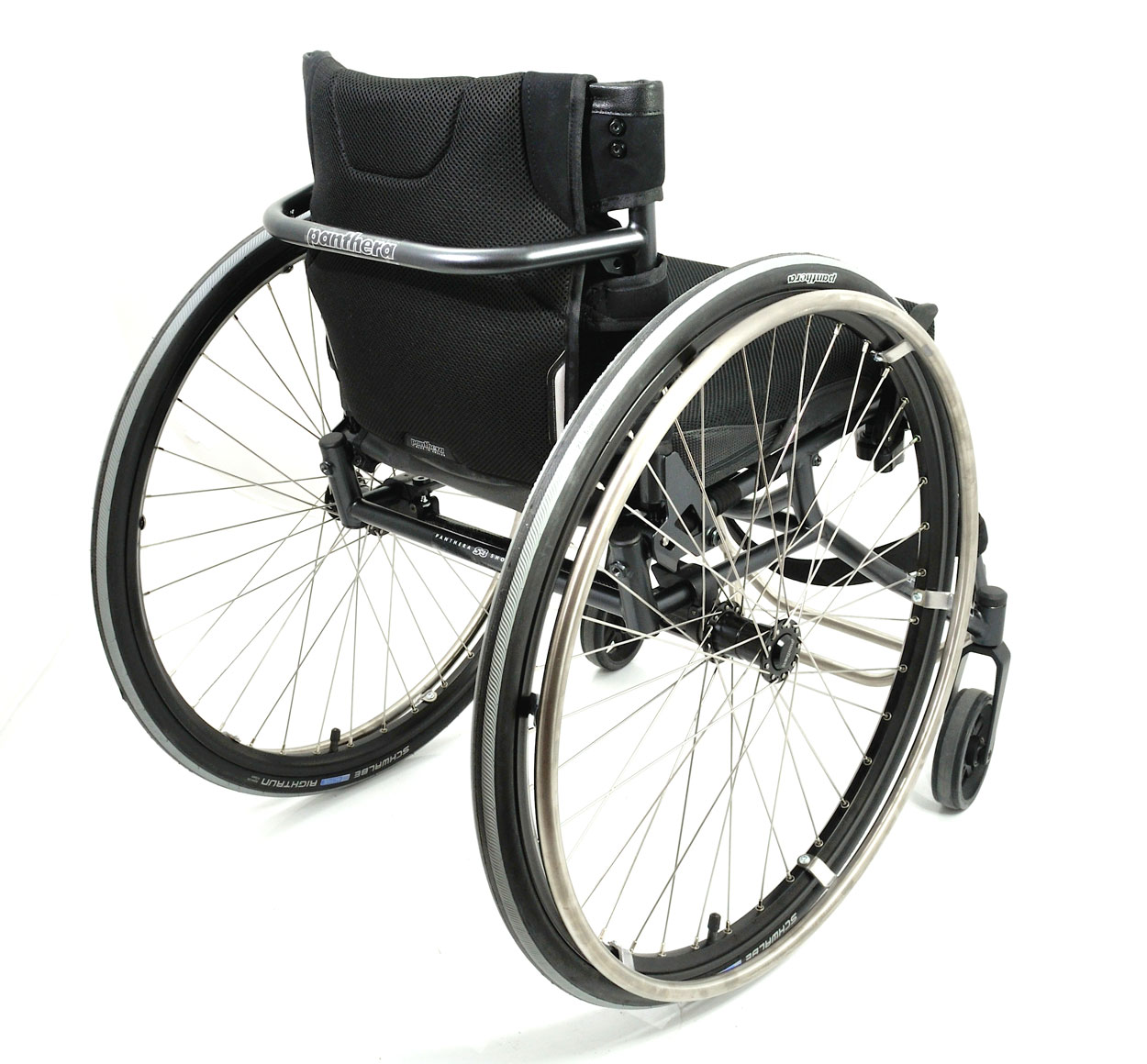

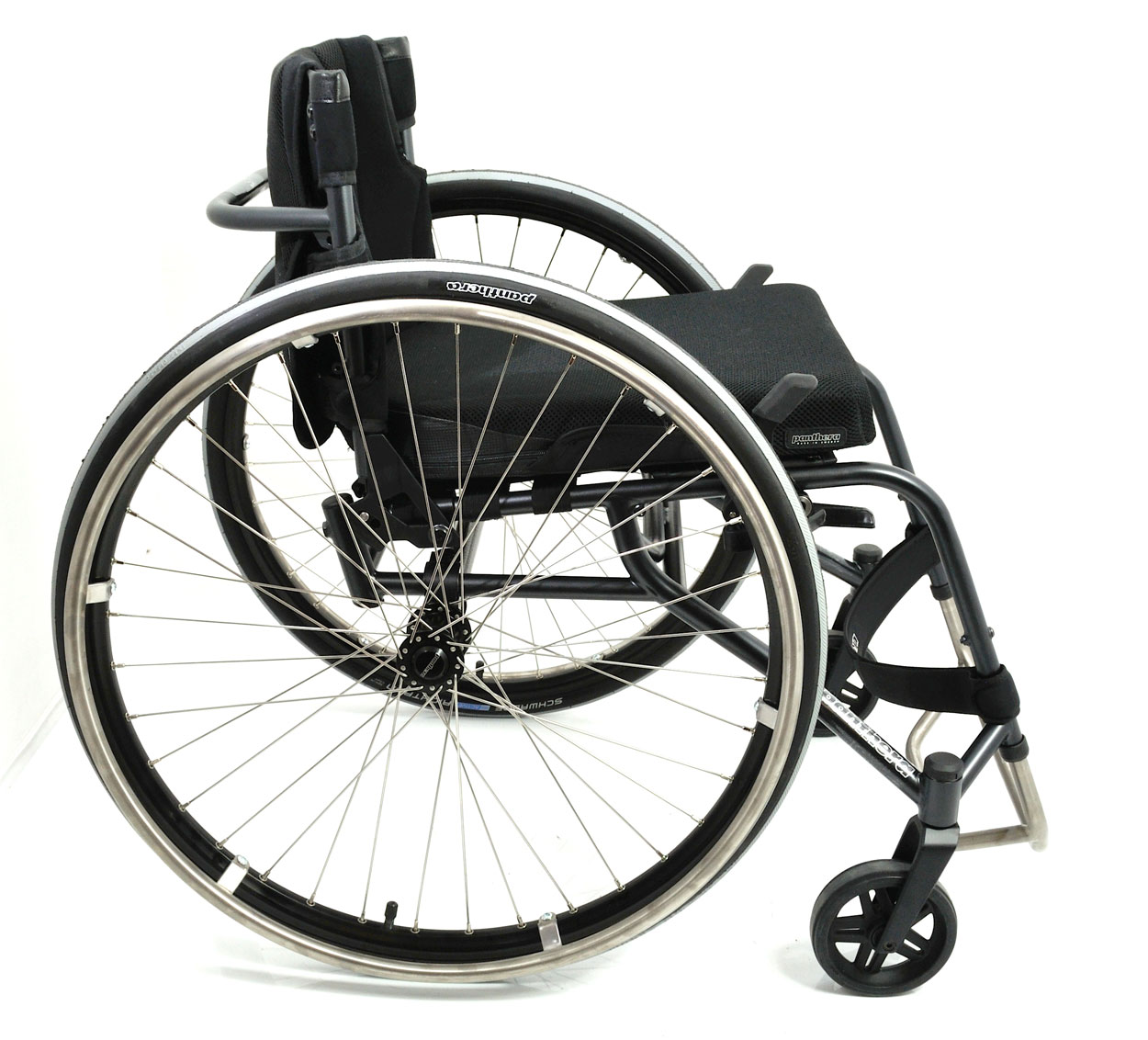

PANTHERA S3 SHORT LOW

The Panthera S3 short is an active wheelchair designed to let you live life as actively as possible. It is characterised by the attention that we have put into all of its details.
Its low weight combined with the stable fixed frame and casters with a unique profile on the tread surface make this wheelchair very easy to manoeuvre.
The chassis’ seating angle, along with adjustable backrest and seat upholstery and the backrest tilt function combine to provide extremely good seating comfort.
The fabric used in the backrest upholstery has also been carefully selected for ergonomic and comfortable sitting.
The chair’s balance point can be adjusted to enable you to find a setting that offers a feeling of security. Accessories such as armrests and side guards have a unique design and you can adjust the height and fore-aft position of the armrests yourself without using tools.
The soft upper section of the side guards fold down when loaded such as when moving into or out of the wheelchair. You can place your hands on the side guards when you lift yourself up or down.
The attractively integrated anti-tip device can be folded in and out by yourself while you are seated in the wheelchair. Panthera S3 short low is 50 mm shorter and 25 mm lower compared to S3.
You are here: start / products /S3 family / S3 short low
TRANSPORT WEIGHT: from 4483 g

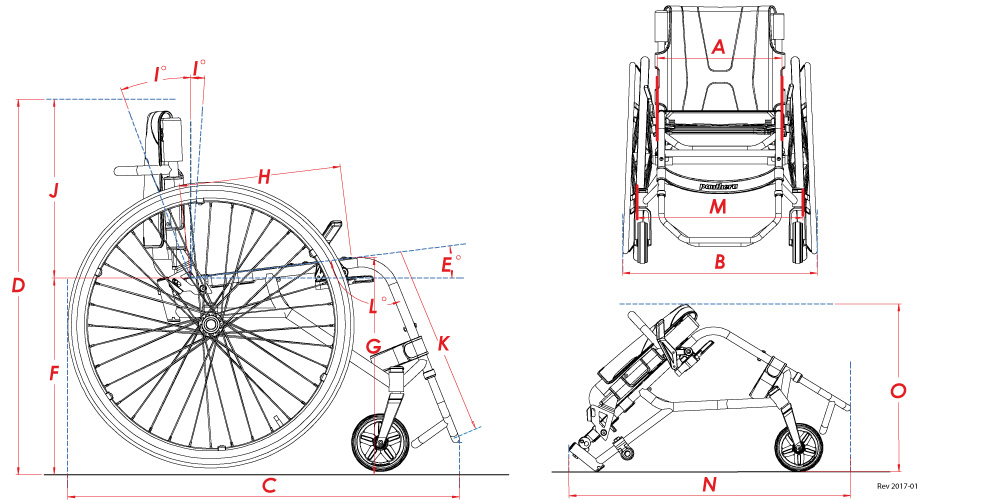

TECHNICAL FACTS S3 SHORT LOW


Model code G552 G552 G552
A Seat width cm 33 36 39
B Total width 54 57 60
C Total length cm 73-85 73-85 73-85
D Total height cm 64-84 64-84 64-84
E Seat angle degrees
F Seat height rear cm 40,5 40,5 40,5
G Seat height front cm 44,5 44,5 44,5
H Seat depth cm 27-33 35 35
I Backrest angle back - forwards 17,3°- (-5°) 17,3°- (-5°) 17,3°- (-5°)
J Backrest height cm 20 - 45 20 - 45 20 - 45
K Footrest height mm min - max 35 - 115 35 - 115 35 - 115

L Footrest angle degrees 105° 105° 105°
M Width cm 46 49 52
N Length cm 71 71 71
O Height cm 50 50 50
Weight
Total (g) 8123 8211 8299
  Transport (g) 4563 4651 4739
  User weight (kg) 100 100 100
STANDARD DESIGN Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum Width 33 5523300BLG
Rear axle Carbon Width 36 5523600BLG
Balancing Ungraded adjustable  Width 39 5523900BLG
Rear wheels 24"
Push rim Titanium
Brakes High brake S3
Castors 120 mm
Foot rest Titanium
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual

ACCESSORIES S3 SHORT LOW

ARM REST S3
SIDEGUARD S3
PUSH HANDLE
HEIGHT ADJUSTABLE
PUSH BAR
PUSH HANDLE
FOLDABLE
ANTI-TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTION
OTHER

PARTS S3 SHORT LOW

Drivhjul Drivhjul Bakaxel Bakaxel sITS SITS cHASSI cHASSI Fotsstöd Fotstöd Rygglås Rygglås Rygg Framgaffel Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
