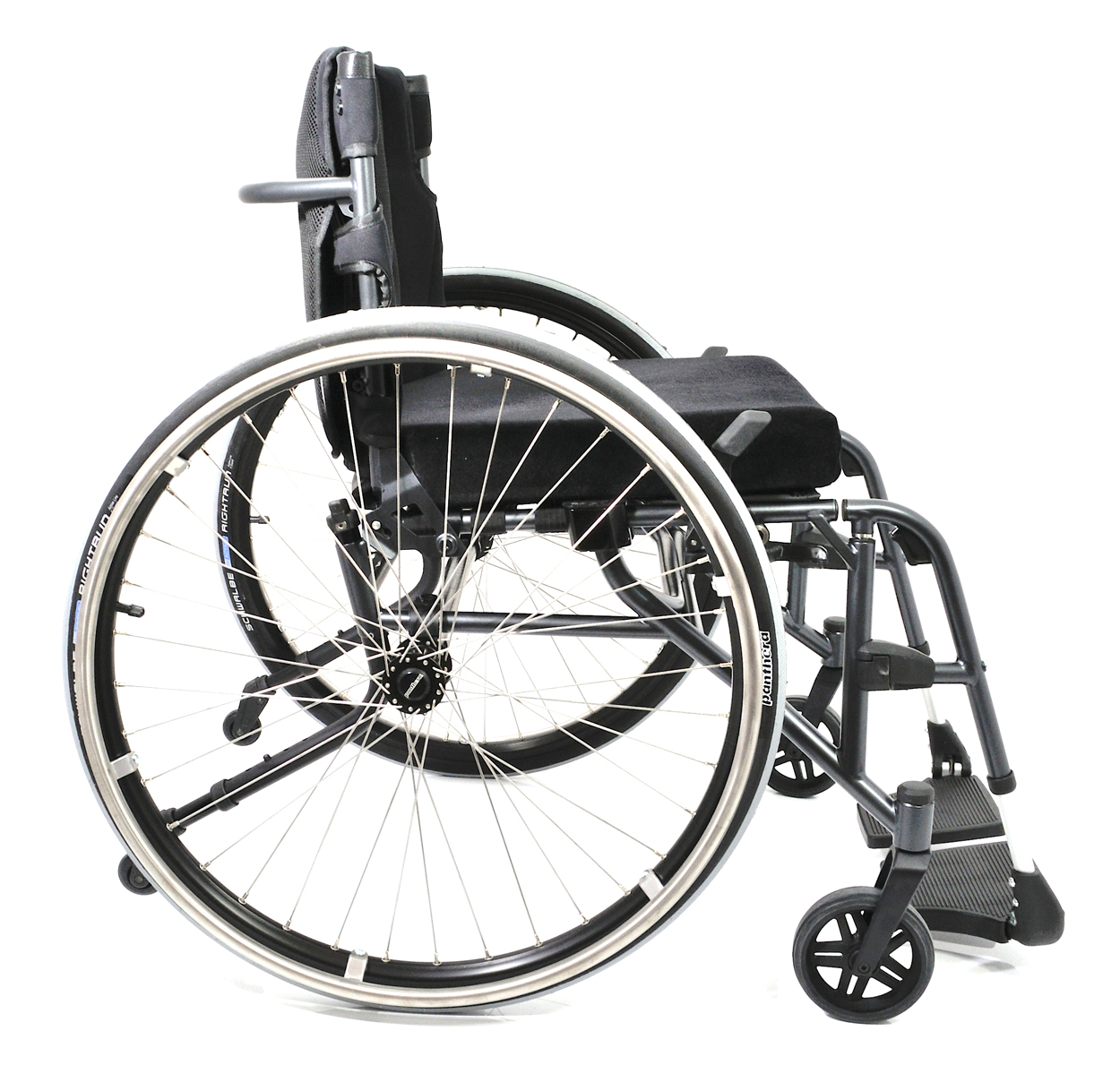

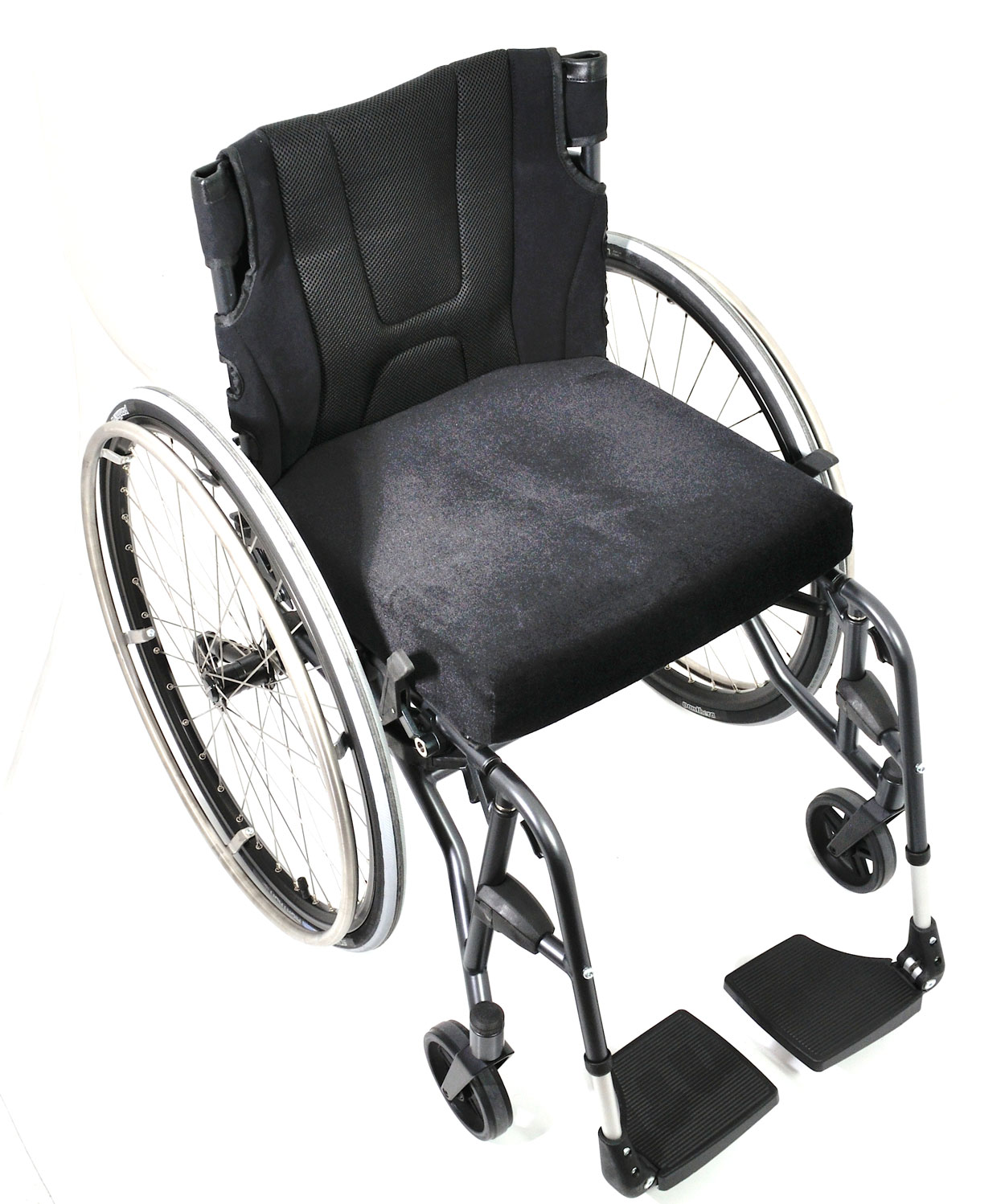

PANTHERA S3 SWING SHORT

Panthera S3 Swing short is basically the same chair as S3, but with divided swing away foot rest. The locking mechanism for the foot rest is discrete and practical integrated inside the tube with a user friendly design. You can easily swing away one or both foot rest with your hands to, e.g, use your feet to maneuver the wheelchair and to make transfer to the wheelchair easy.
Panthera S3 Swing short has a seat angle of 4 degrees, which opens up new possibilities to find a good sitting position, even for those who need to use their legs to move about with the wheelchair or for other reasons need to have a more flat seat angle.
The chassis’ seating angle, along with adjustable backrest and seat upholstery and the backrest tilt function combine to provide extremely good seating comfort.
The fabric used in the backrest upholstery has also been carefully selected for ergonomic and comfortable sitting.
The chair’s balance point can be adjusted to enable you to find a setting that offers a feeling of security. Accessories such as armrests and side guards have a unique design and you can adjust the height and fore-aft position of the armrests yourself without using tools.
The soft upper section of the side guards fold down when loaded such as when moving into or out of the wheelchair. You can place your hands on the side guards when you lift yourself up or down.
The attractively integrated anti-tip device can be folded in and out by yourself while you are seated in the wheelchair.

Panthera S3 Swing short is 50mm shorter than S3 Swing.
You are here: start / products / Swing family / S3 Swing short
TRANSPORT WEIGHT: from 4020 g

FACTS S3 SWING SHORT


Model code G553 G553 G553
A Seat width cm 33 36 39
B Total width 54 57 60
C Total length cm 78-90 78-90 78-90
D Total height cm 64-84 64-84 64-84
E Seat angle degrees 7° 7° 7°
F Seat height rear cm 43 43 43
G Seat height front cm 45 45 45
H Seat depth cm 35 35 35
I Backrest angle back - forwards 17,3° - (-8°) 17,3° - (-8°) 17,3° - (-8°)
J Backrest height cm 20 - 45 20 - 45 20 - 45
K Footrest height in cm for the footrest positions
  Foldable footrest 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46
  Foldable footrest extended 40,42,44,46,48 40,42,44,46,48 40,42,44,46,48
L Footrest angle degrees 105° 105° 105°
M Width cm 46 49 52
N Length cm 78 78 78
O Height cm 50 50 50
  Weight
Total (g) 9128 9216 9304
  Transport (g) 4280 4368 4456
  User weight (kg) 100 100 100
STANDARD DESIGN Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum Width 33 5533300G
Rear axle Carbon Width 36 5533600G
Balancing Ungraded adjustable  Width 39 5533900G
Rear wheels 24"
Push rim Titanium
Brakes High brake S3
Castors 120 mm
Foot rest Devided footplates
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manua

ACCESSORIES S3 SWING SHORT

ARM REST S3
SIDEGUARD S3
PUSH HANDLE
PUSH BAR
CUSHION
ANTI_TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTION
OTHER

PARTS S3 SWING SHORT

Drivhjul Drivhjul Bakaxel Bakaxel sITS SITS cHASSI cHASSI Fotsstöd Fotstöd Rygglås Rygglås Rygg Framgaffel Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
