Panthera Bambino

Panthera Bambino is an easy rolling everyday wheelchair for children with the same excellent qualities as its larger family members.

Its easy to drive
Its easy to adapt
Its easy to lift
It's quite simply an active chair for children.

Who is it for?
Children from around 4-12 who need an easy-to-handle everyday chair.

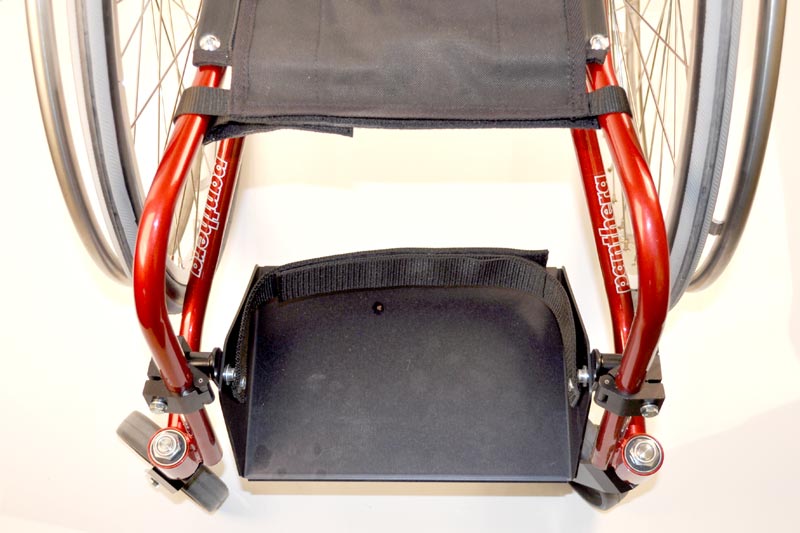

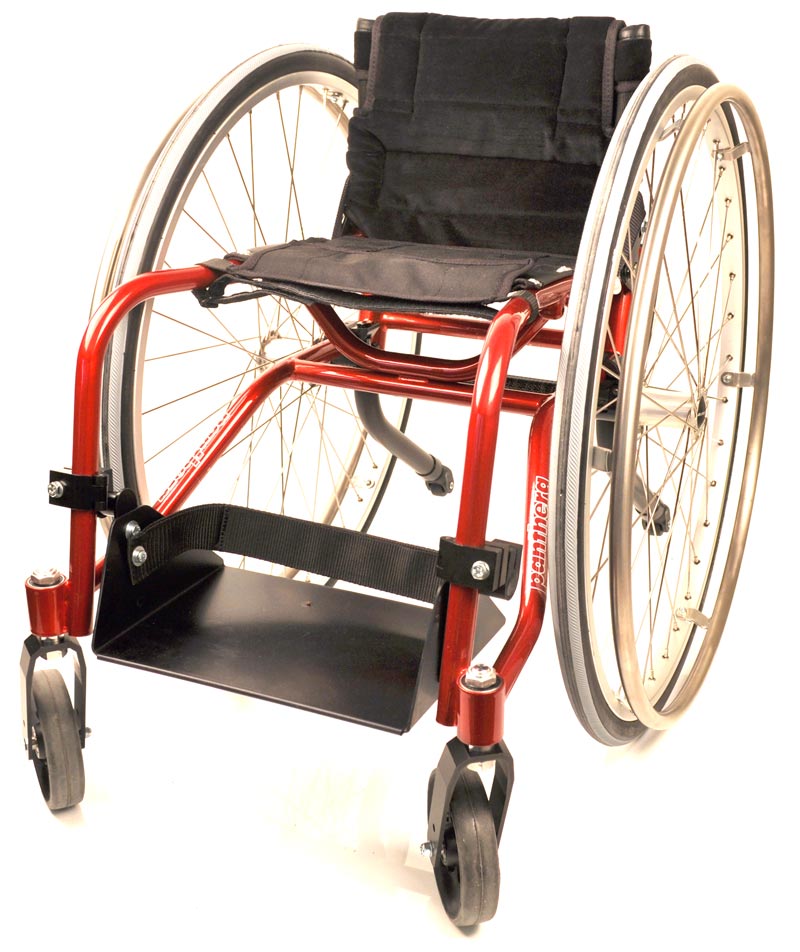

Now also available with abduction front. See image.

Note! Only available in red, except standard chassis without abduktion in seat width 27, 30 and 33 cm, that can be ordered in black color.

























Technical facts - Panthera Bambino
Back

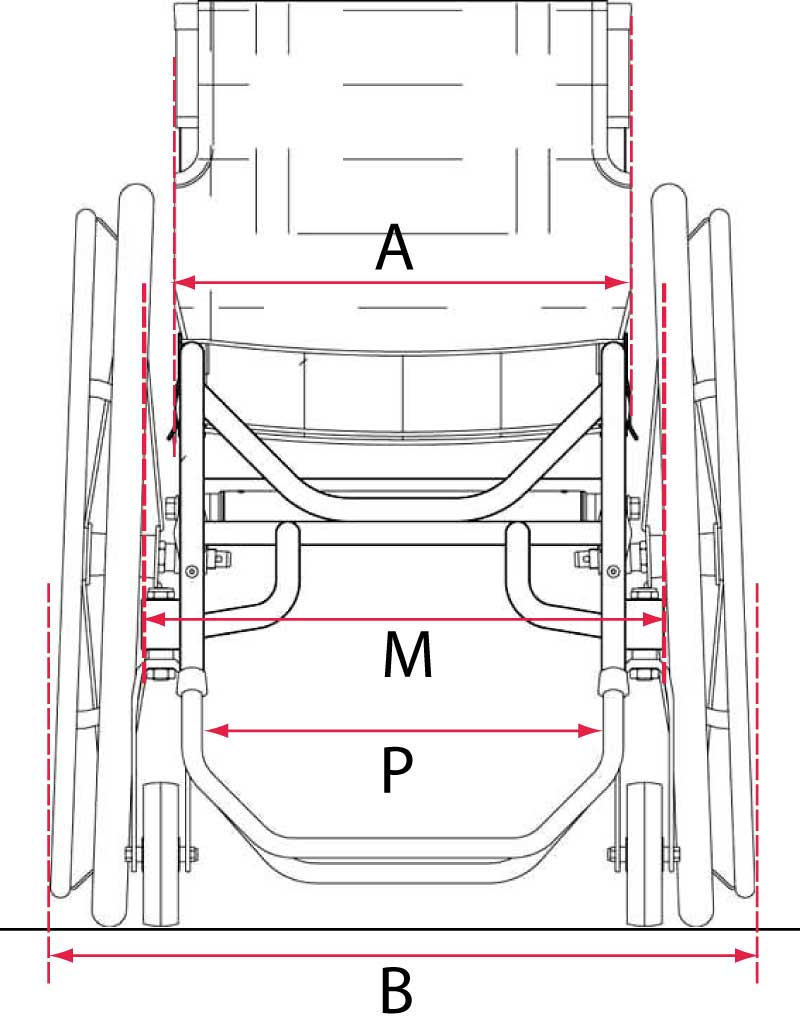

Seat width



Seat width cm

 A

24

 27 30 33
Seat width inch A 9,45 10,63 11,81 12,99

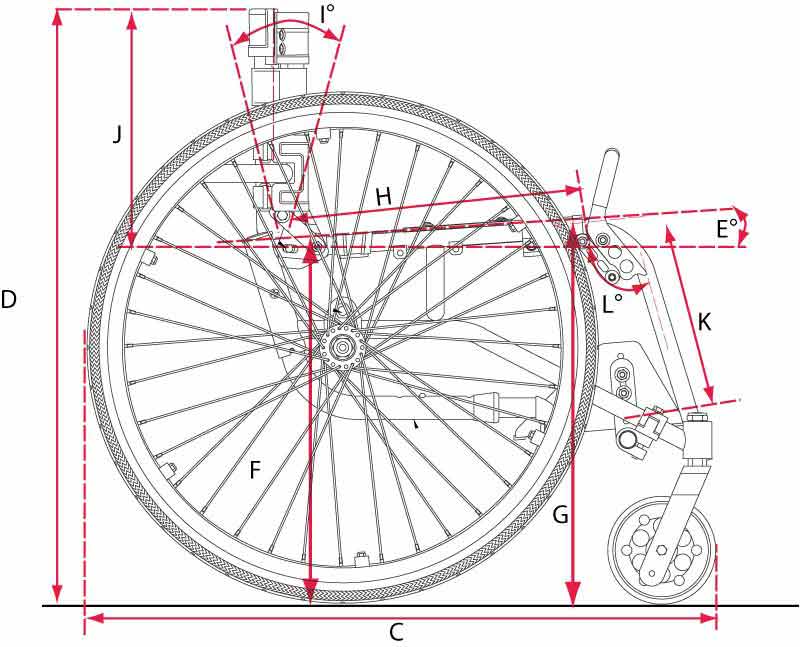

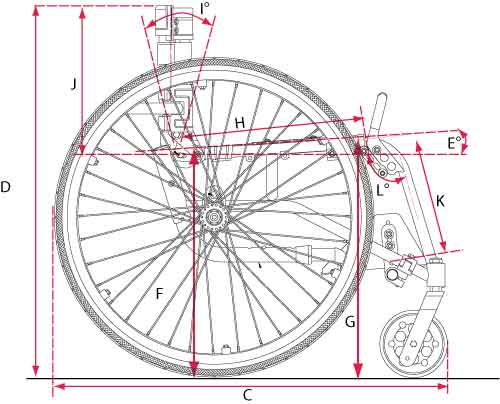

Total measurements


Total width (carbon axel + 0 cm) B 45 48 51 54
Total width inch B 17,72 18,90 20,08 21,26
Total length cm C 65 - 71,5 65 - 71,5 65 - 71,5 65 - 71,5
Total length inch C 28,15 - 25,59 28,15 - 25,59 28,15 - 25,59 28,15 - 25,59
Total height cm D 57,5-65 57,5-65 57,5-65 57,5-65
Total height inch D 22,64 - 25,59 22,64 - 25,59 22,64 - 25,59 22,64 - 25,59

Seat


Seat angle degrees E 4° 4° 4° 4°
Seat height rear cm F 39 39 39 39
Seat height rear inch F 15,35 15,35 15,35 15,35
Seat height front cm G 41 41 41 41
Seat height front inch G 16,14 16,14 16,14 16,14
Seat depth cm H 18-25 23-30 23-30 23-30
Seat depth inch H 7,09 - 9,84 9,06 - 11,81 9,06 - 11,81 9,06 - 11,81
Backrest
Backrest angle for - backwards I 7,7°-12° 7,7°-12° 7,7°-12° 7,7°-12°
Backrest height cm J 17- 25 alt. 27- 35
Backrest height inch J 16,69 -  9,84   alt. 10,63 -  13,78
Footrest
Footrest length cm min - max  K
Footrest length inch min - max  K
Footrest width cm std /  abd   P 19 / 25 22 / 28 25 / 31 28 / 34
Footrest width inch std /  abd  P 7,48 / 9,84 8,66 / 11,02 9,84 / 12,20 11,02 / 13,39
Footrest angle degrees L

103°

103°

103°

103°

Transport measurements


Width cm M 29,5 32,5 35,5 38,5
Width inch M 11,61 12,80 12,80 12,80
Length cm N 60 60 60 60
Length inch N 23,62 23,62 23,62 23,62
Height cm O 32 32 32 32
Height inch O 12,60 12,60 12,60 12,60

Weight


Total (g) 8120 8348 8576 8804
Total (lb) 17,9 18,4 18,9 19,4
Transport (g) 4894 5140 5368 5596
Transport (lb) 10,8 11,3 11,8 12,4
User weight (kg) 60 60 60 60
User weight (lb) 132 132 132 132



















Standard design Panthera Bambino

Back
Chassis Rear axle
Chrome molybdenum tubing red or black Carbon + 0 cm
Balancing Rear wheels
Ungraded adjustable 20", 22" or 24"
Push rim Brakes
Titanium
Castors Foot rest
5" Footplate, adjustable in height, angle and depth.
Back Back upholstery
Ungraded adjustable angle Adjustable
Others




Calf band
Tool kit
Manual





















Accessories - Panthera Bambino
Back
Side guards   Trunk support
Plastic (w. adaptation) Bambino 20" Standard
  Bambino 22"
  Bambino 24"
  Bambino 20" winter
With armrest (w. adaptation) Bambino 22" winter
    Bambino 24" winter

Push handles Spoke protectors
Fixed With print
Foldable Without print
Height adjustable
Pushbar
Anti tipp Cushion

Bambino

  Bambino

Tetra QR Foot rest
Standard wheel



Bambino
Castors   Others
  Other accessories
5"
6" (with adaptaion)
