Panthera Micro

David, 18 months, have a muscle disease which means that he is very weak. He is so weak that he is unable to drive any of the wheelchairs currently available. To be able to move about on his own is essential as we all know.
Not least for a child. David's mum contacts us at Panthera and asks if we could help David.
Our designer decides to let this design go to the extreme and uses only the absolute best available with today's technology.

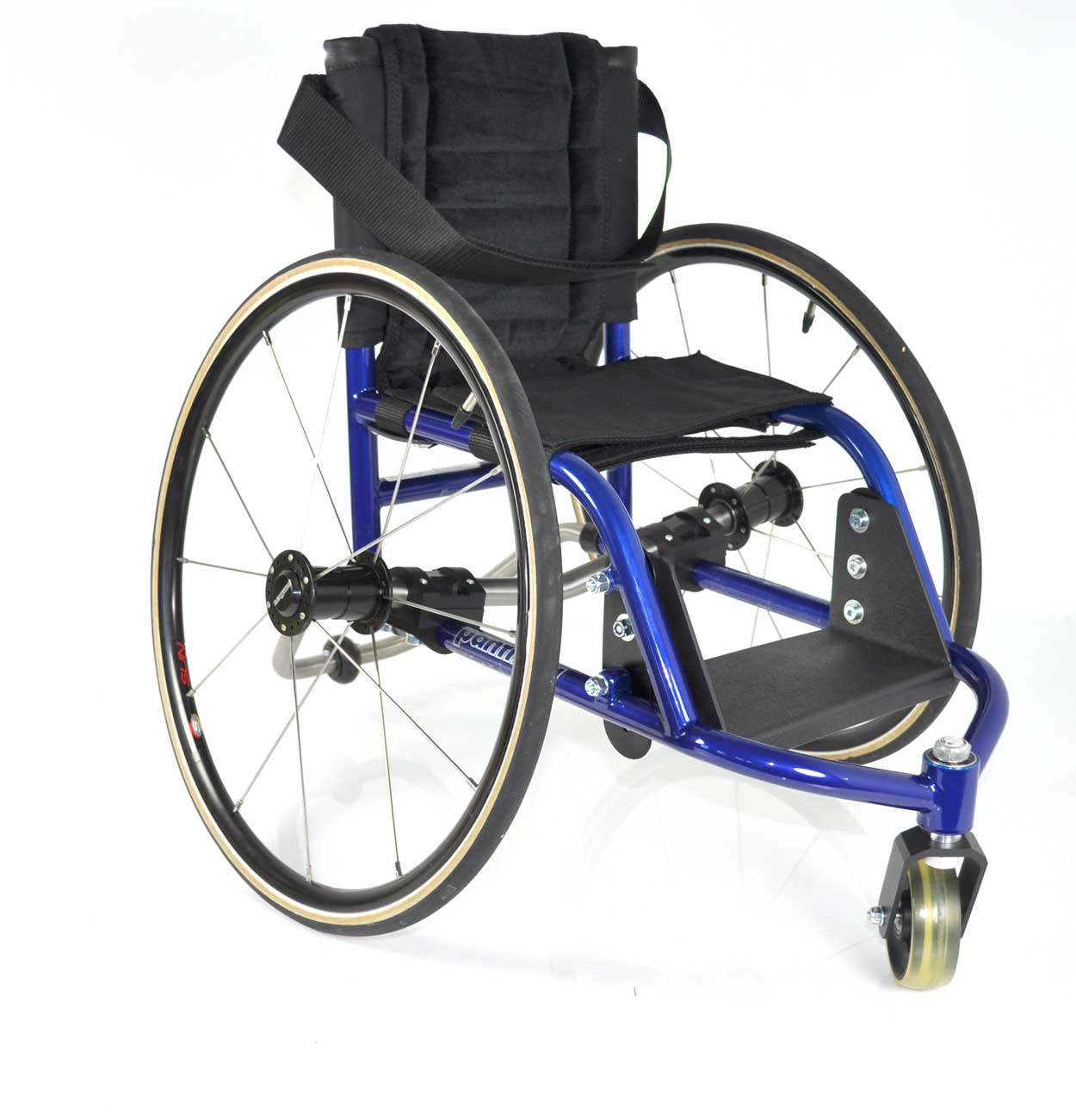

Chrome molybdenum and titanium form the frame, castor wheels from marathon racing chairs become rear wheels. Just as on tennis chairs, there is a single castor wheel for easier rotation.
After a couple of months the first example of the Panthera Micro was born. A wheelchair with the sole task of giving David the chance to be able to move where he wants.. After a few months we and many who know David learn that the chair works beyond our expectations.
Since then we have discovered that there are lots more children with the same needs as David. That's why we produce Panthera Micro.































Technical facts - Panthera Micro
Back

Seat with

Seat width (cm)

24 27 24 long 27 long

Totalmått

Total width 46 49 46 49
Total length 62 62 72,5 72,5
Total length 51,5 51,5 54 54

Seat

Seat angle 0° 0° 0° 0°
Seat height rear 31 31 31 31
Seat height front 31 31 31 31
Seat depth 15-20 15-20 20-25 20-25

Transport measurements

Width 31 34 31 34
Length 62 62 72,5 72,5
Height 50 50 52 52

Weights

Total (g) 3518 3564 3782 3828
Transport  2342 2388 2474 2520
User weight (kg) 30 30 30 30





















Standard design Panthera Micro

Back
Chassis Rear axle
Chrome molybdenum tubing blue Micro
Balancing Rear wheels
Ungraded adjustable 18" or 20" racingwheels with high pressure tire
Push rim Brakes
No
Castors Foot rest
3" hard footplate, adjustable in height
Backrest Back upholstery
Fixed Adjustable
Anti tip device
U-shaped titanium tube with support wheel
Others




Calf band
Tool kit
Manual



























Accessories - Panthera Micro
Back
Side guards
Plastic (w. adaptation)







Push handles Spoke protectors


Height adjustable (with adaptation)
Pushbar

Anti tipp Cushion


Micro
Micro long
  Micro

Foot rest
Micro





Castors   Others
3" Other accessories
