Panthera S2 Large

Panthera S2 large is a common adaptation of the standard S2 that now becomes a permanent member in the S2 family.

Delivery time and price will be the same as a standard S2.

The chassis is extended 50 mm and raised 25 mm compared to a standard S2, to better suit the larger users. The chassis is reinforced to cope userweights up to 150 kg.

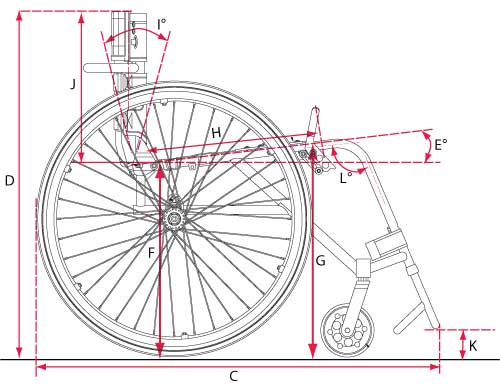

Technical facts - Panthera S2 Large
Back


Seat width



Seat width cm

 A 39 42 45 50

Total measurements


Total width (carbon axle + 0 cm) B 60 63 66 71
Total length cm C 83-95 83-95 83-95 83-95
Total height cm D 66,5-86,5 66,5-86,5 66,5-86,5 66,5-86,5

Seat


Seat angle degrees E 7° 7° 7° 7°
Seat height rear cm F 45,5 45,5 45,5 45,5
Seat height front cm G 49,5 49,5 49,5 49,5
Seat depth cm H 45 45 45 45
Backrest
Backrest angle back - forwards I 7,3°-11,5° 7,3°-11,5° 7,3°-11,5° 7,3°-11,5°
Backrest height cm

J

20 - 45

20 - 45

20 - 45

20 - 45

Footrest
Footrest lenght cm min - max  K
Footrest angle degrees L

105°

105° 105° 105°

Transport measurements


Width cm M 52 55 58 63
Length cm N 80 80 80 80
Height cm O 40,5 40,5 40,5 40,5

Weight


Total (g) 8384 8444 8504 8564
Transport (g) 4884 4944 5004 5064
User weight (kg) 150 150 150 150



















Standard design Panthera S2 Large

Back
Chassis Rear axle
Chrome molybdenum tubing Carbon + 0 cm
Balancing Rear wheels
Ungraded adjustable 24"
Push rim Brakes
Titanium High brake
Castors Foot rest
5" Titanium
Backrest Back upholstery
Ungraded adjustable angle Adjustable
Others




Calf band
Tool kit
Manual























Accessories - Panthera S2 large
Back
Side guards   Trunk support
Plastic   Standard
With cover
With cover for 26" wheel
With cover extended
With armrest


Push handles Spoke protectors
Fixed With print
Foldable Without print
Height adjustable
Pushbar
Anti-tip device Cushion
Standard Standard




Tetra QR Foot rest
Standard wheel Standard
Spox wheel
S2 30-33 cm
Foldable
Bambino (to width 33, 36, 39, 42 cm)
Castors   Others
  Other accessories
5"
6"
