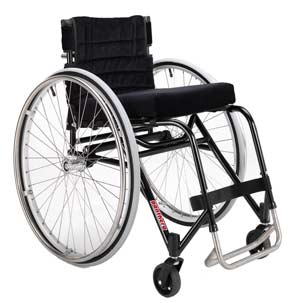

Panthera U2 is a modern active chair. The slim line front and ergonomic design makes it wonderfully smooth to drive and many people discover a better sitting position.

This is the most easy wheelchair to manoeuvre on the market.
To drive: With a chassis of chrome molybdenum and a footrest and pushrims of titanium the chair is naturally very light and extremely easy to handle.

The seat: An ungraded adjustable back angle, wonderfully soft back upholstery with a padded, adjustable upper edge and a Velcro band the whole way across to allow you to shape the back upholstery for the exact support required. A 7 degree sitting angle and a seat depth of 35-46 cm.

Lifting: Low weight, low chassis along with a natural and balanced grip means that it's a piece of cake to lift this chair in and out of your car.

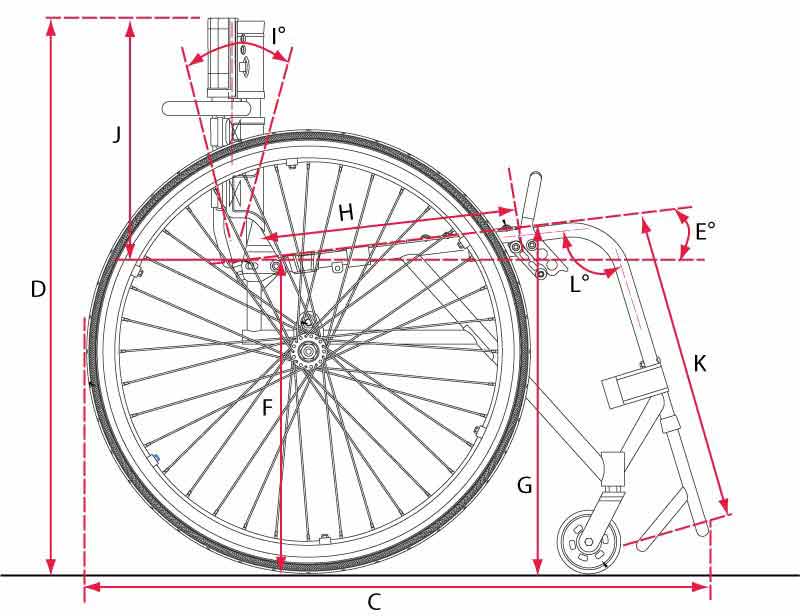

Technical facts - Panthera U2

Back

Seat width
Seat width cm	A	33	36	39	42	45
Total measurements
Total width (carbon axle + 0 cm)	B	54	57	60	63	66
Total length cm	C	75-87	75-87	75-87	75-87	75-87
Total height cm	D	64-84	64-84	64-84	64-84	64-84
Seat
Seat angle degrees	E	7°	7°	7°	7°	7°
Seat height rear cm	F	43	43	43	43	43
Seat height front cm	G	47	47	47	47	47
Seat depth cm	H	35-46	35-46	35-46	35-46	35-46
Backrest
Backrest angle back - forwards	I	7,3°-11,5°	7,3°-11,5°	7,3°-11,5°	7,3°-11,5°	7,3°-11,5°
Backrest height cm	J	20 - 45	20 - 45	20 - 45	20 - 45	20 - 45
Footrest
Footrest lenght cm min - max	K	X
Footrest angle degrees	L	100°	100°	100°	100°	100°
Transport measurements
Width cm	M	41	44	47	50	53
Length cm	N	72	72	72	72	72
Height cm	O	38	38	38	38	38
Weight
Total (g)		8220	8330	8390	8450	8686
Transport (g)		4714	4774	4834	4894	5130
User weight (kg)		100	100	100	100	150

Standard design Panthera U2
Back
Chassis	Rear axle
Chrome molybdenum tubing black	Carbon + 0 cm
Balancing	Rear wheels
Ungraded adjustable	24"
Push rim	Brakes
Titanium	High brake
Castors	Footrest
3"	Titanium
Backrest	Back upholstery
Ungraded adjustable angle	Adjustable
Others
Calf band Tool kit Manual

Accessories - Panthera U2
Back
Side guards		Trunk support
	Plastic		Standard
	With cover
	With cover for 26" wheel
	With cover extended
	With armrest



Push handles		Spoke protectors
	Fixed		With print
	Foldable		Without print
	Height adjustable
	Pushbar (for width 33 and 36 cm)


Anti tipp		Cushion
	Standard		Standard





Tetra QR		Foot rest
	Standard wheel
	Spox wheel		U2


			Bambino (to width 33, 36, 39, 42 cm)

Castors		Others
	3"		Other accessories
	5" (with adaptation)
