Panthera U2 light

The U2 light is a wheelchair designed for the experienced active-user who can handle a "tippy" wheelchair without anti-tips.

After long-terme sitting in a wheelchair many people develop problems with neck and shoulder pain. To help them reduce and/or prevent further problems we have designed the U2 light to make lifting and driving the chair as easy as it can possibly be without, of course, reducing the ergonomic features from the U2.
The constructing is optimized for easy handling in and out of cars and extremely good driving characteristics.
The very clean and minimalistic construction gives the experienced active-user a big opportunity for improvements in his or her daily life.
In its standard configuration, the U2 light has a carbon fibre rear axle, Spinergy rear wheels, and a seat bag with integrated magnet.
The U2 light exists in two different set-ups. U2 light with normal balance, and U2 light with a more "tippy" balance. It's possible to adjust the position of the backrest by +/- 10mm, forward or backward, to calibrate the balance.

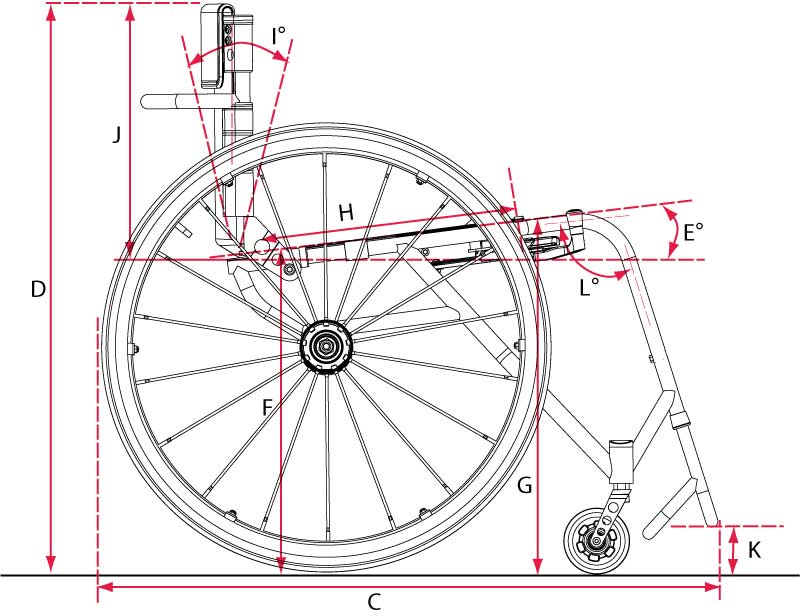

Technical facts - Panthera U2 light
Back

Seat width



Seat width cm

A 33 36 39 42 45

Total measurements


Total width cm B 54 57 60 63 66
Total length cm  C 84,5 84,5 84,5 84,5 84,5
Total height cm  D 69-79 69-79 69-79 69-79 69-79

Seat


Seat angle degrees E 7° 7° 7° 7° 7°
Seat height rear cm F 43 43 43 43 43
Seat height front cm G 47 47 47 47 47
Seat depth cm H 35-46 35-46 35-46 35-46 35-46
Backrest
Backrest angle back - forwards I 4,5°-11,5° 4,5°-11,5° 4,5°-11,5° 4,5°-11,5° 4,5°-11,5°
Backrest height cm J 25 - 35 25 - 35 25 - 35 25 - 35 25 - 35
Footrest
Footrest height mm min - max in step of 20mm K 40-120 40-120  40-120 40-120  40-120
Footrest angle degrees L 100° 100° 100° 100° 100°

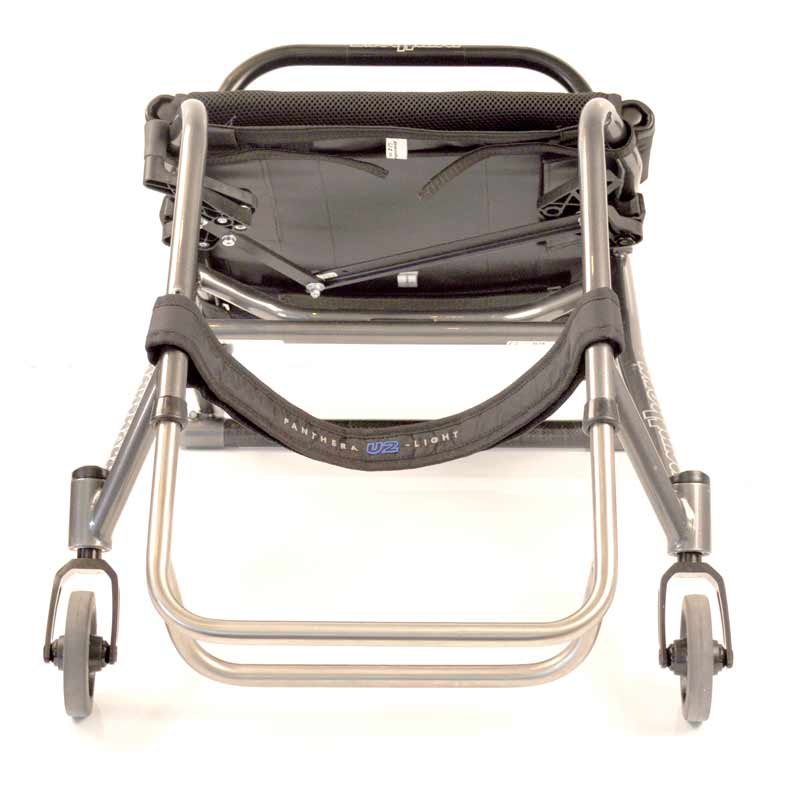

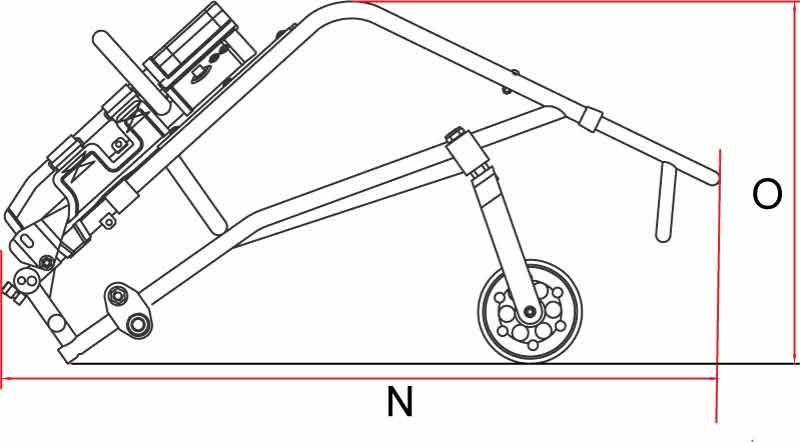

Transport measurements


Width cm  M 41 44 47 50 53
Length cm  N 72 72 72 72 72
Height cm  O 38 38 38 38 38

Weight


Total (g) U2 light 6844 6924 7004 7084 7164
Total (g) U2 light / L 6906 6986 7066 7146 7226
Transport (g) U2 light 3856 3936 4016 4096 4176
Transport (g) U2 light / L 3918 3998 4078 4158 4238
User weight (kg) 100 100 100 100 100























Standard design Panthera U2 light

Back
Chassis Rear axle
Chrome molybdenum tubing gray metallic or black U2 light
Balancing Rear wheels
Standard or Light 24"
Push rim Brakes
Titanium Onehand brake
Castors Footrest
3" Titanium
Backrest Back upholstery
Ungraded adjustable angle Adjustable
Others




Calf band
Tool kit
Manual





























Accessories - Panthera U2 Light
Back
Side guards   Bålstöd





  U2 light


Push handles Ekerskydd
  With print
  Without print



Anti tip device Cushion
  Standard





Tetra QR Footrest
Standard wheel
Spox wheel U2




Castor   Others
3" Other accessories
