Rearwheel
Standard LX with PBO spokes
Spox  Spox  light
Spox Sport Spider
Micro Mountainbike

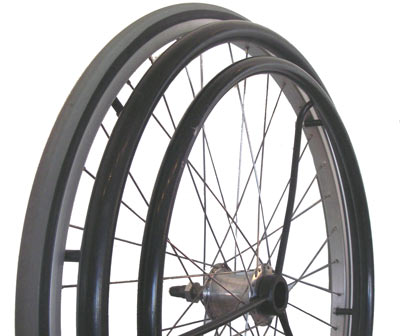

One- arm drive X

SUN





























Rearwheel standard with titanium pushrim

Description

art.no

qty

Rearwheel 20" Max grip 17" thin

(spoke mount)

1100008

1

Rearwheel 20" Max grip 17" thin

(spoke mount) no tyre

1100008R

1

Rearwheel 20" punct.free without rim

no drivrim

1102003

1

Rearwheel 20" punct.free titanium rim



1102002

1

Rearwheel 20" titanium rim



1102000

1

Rearwheel 20" titanium rim

no tyre

1102000R

1

Rearwheel 20" no drivrim



1102001

1

Rearwheel 20" no push rim and tyre



1102001R

1

Rearwheel 22" Max grip 18" thin

(spoke mount)

1100009

1

Rearwheel 22" Max grip 18" thin

(spoke mount) no tyre

1100009R

1

Rearwheel 22" PRC-drivrim



1102204

1

Rearwheel 22" PRC-drivrim

no tyre

1102204R

1

Rearwheel 22" punct.free without rim

no drivrim

1102203

1

Rearwheel 22" punct.free titanium rim



1102202

1

Rearwheel 22" titanium rim



1102200

1

Rearwheel 22" titanium rim

no tyre

1102200R

1

Rearwheel 22" no push rim 6 holes



1102201

1

Rearwheel 22" no push rim 6 holes

without tyre

1102201R

1

Rearwheel 22" no punct.freett tyre

titanium rim

1102205

1

Rearwheel 24" 4-clips



1100000

1

Rearwheel 24" 4-clips ALU-drivrim



1100039

1

Rearwheel 24" 4-clips Gele

push rim without tyre

1100002R

1

Rearwheel 24" 4-clips Geleplastad

push rim

1100002

1

Rearwheel 24" 4-clips PRC-push rim



1100003

1

Rearwheel 24" 4-clips PRC-push rim

no tyre

1100003R

1

Rearwheel 24" 4-clips Titanpush rim



1100004

1

Rearwheel 24" 4-clips Titanpush rim

no tyre

1100004R

1

Rearwheel 24" 4-clips no tyre



1100000R

1

Rearwheel 24" Max grip 21"

thin (4-clips)

1100001

1

Rearwheel 24" Max grip 21"

thin (4-clips) without tyre

1100001R

1

Rearwheel 24" Max grip 21" thick

(spoke mount)

1100011

1

Rearwheel 24" Max grip 21" thick

(spoke mount) no tyre

1100011R

1

Rearwheel 24" punct.free 4-clip



1100007

1

Rearwheel 24" punct.free 4-clip

without tyre

1100007R

1

Rearwheel 24" punct.free borrat



1100006

1

Rearwheel 24" punct.free borrat

without tyre

1100006R

1

Rearwheel 24" punct.free gel coated

gel coated push rim

1102471

1

Rearwheel 24" punct.free Max grip

Max grip push rim

1102472

1

Rearwheel 24" punct.free PRC

push rim

1102470

1

Rearwheel 24" punct.free PRC  without tyre



1102470R

1

Rearwheel 24" punct.free titanium rim



1100005

1

Rearwheel 24" std titanium rim



1000000

1

Rearwheel 24" std titanium rim without tyre



1000000R

1

Rearwheel 24" no clips pre drilled



1100060

1

Rearwheel 24" no clips pre drilled

without tyre och push rim

1100060R

1

Rearwheel 24" no punct.freett tyre

titanium rim

1100010

1

Rearwheel 26" MBL-hub Max grip 22"

thin (spoke mount)

1100013

1

Rearwheel 26" MBL-hub Max grip 22"

thin (spoke mount) no tyre

1100013R

1

Rearwheel 26" MBL-hubt itanium rim



1102610

1

Rearwheel 26" MBL-hub titanium rim

no tyre

1102610R

1

Rearwheel 26" MBL-hub no push rim



1102600

1

Rearwheel 26" MBL-hub no push rim

no tyre

1102600R

1


Rearwheel standard
Fits chair:
S2 Yes, standard
S2 short Yes, standard
S2 short-low Yes, standard
S2 large Yes, standard
S2 swing Yes, standard
S2 swing-short Yes, standard
U2 Yes, standard
U2 light No
Bambino Yes, standard
Micro No
BT No
Panthera X No
Back

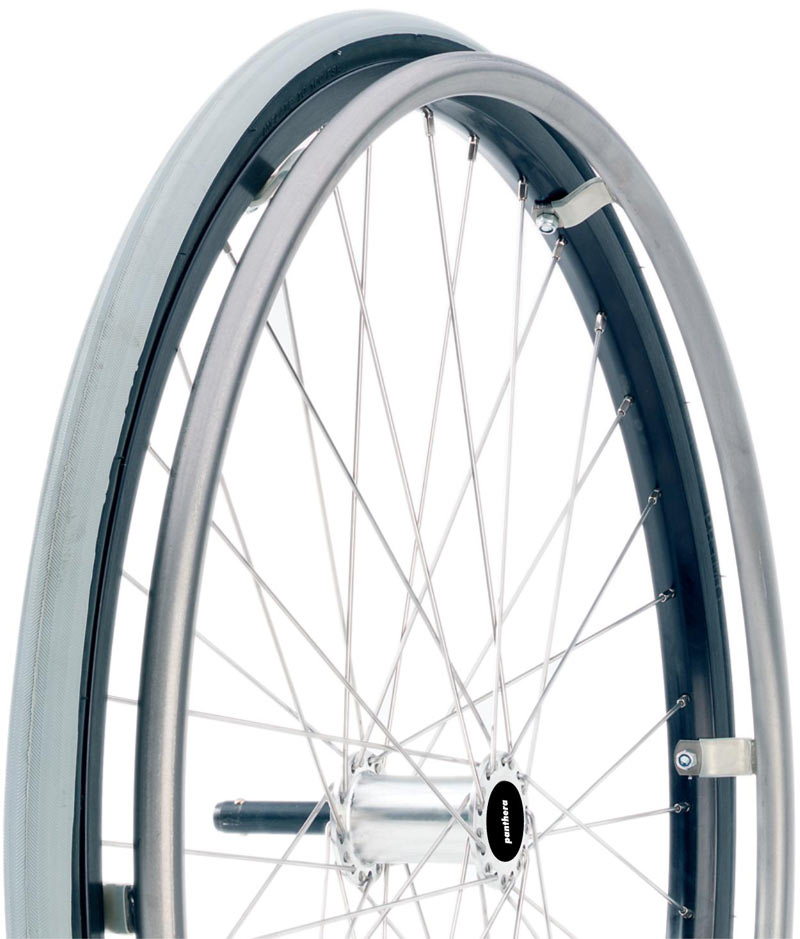

Rearwheel with SUN rim with titanium pushrim

Description art.no qty
Rearwheel 24", Sun-rim, titanium pushrim, pcs 1102410 1
Rearwheel 24", basket, titanium pushrim, pcs 1102400 1
Rearwheel, 24", 4-clips, Sun-rim , pcs 1102440 1

Rearwheel with SUN rim
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light Yes
Bambino Yes
Micro No
BT Yes
Panthera X Yes
Back





























Rearwheel Spox

Description

art.no

qty

Rearwheel 24" Spox std 6 clips



1100083

1

Rearwheel 24" Spox std 6 clips

no tyre

1100083R

1

Rearwheel 24" Spox std 6 clips Red



1100084

1

Rearwheel 24" Spox std 6 clips Red

no tyre

1100084R

1

Rearwheel 24" Spox std no ring - tyre

no pushrim or tyre, Red spokes

1100089R

1

Rearwheel 24" Spox std gel coated

pushrim

1100086

1

Rearwheel 24" Spox std gel coated

pushrim no tyre

1100086R

1

Rearwheel 24" Spox std gel coated

pushrim Red spokes

1100088

1

Rearwheel 24" Spox std gel coated

pushrim Red eker no tyre

1100088R

1

Rearwheel 24" Spox std PRC

no tyre

1100085R

1

Rearwheel 24" Spox std PRC-pushrim



1100085

1

Rearwheel 24" Spox std PRC-pushrim

Red spokes

1100087

1

Rearwheel 24" Spox std PRC-pushrim

Red spokes no tyre

1100087R

1

Rearwheel 24" Spox std titanium rim



1100080

1

Rearwheel 24" Spox std titanium rim

no tyre

1100080R

1

Rearwheel 24" Spox std titanium rim Red



1100082

1

Rearwheel 24" Spox std titanium rim Red

no tyre

1100082R

1

Rearwheel 24" Spox std no pushrim



1100081

1

Rearwheel 24" Spox std no pushrim

no tyre

1100081R

1

Rearwheel 24" Spox std no pushrim

Röda ekrar

1100089

1

Rearwheel 25" Spox std geleplastad

pushrim

1100132

1

Rearwheel 25" Spox std geleplastad

pushrim no tyre

1100132R

1

Rearwheel 25" Spox std PRC pushrim

no tyre

1100133R

1

Rearwheel 25" Spox std PRC-pushrim



1100133

1

Rearwheel 25" Spox std titan pushrim



1100131

1

Rearwheel 25" Spox std titan pushrim

no tyre

1100131R

1

Rearwheel 25" Spox std no pushrim



1100130

1

Rearwheel 25" Spox std no pushrim

no tyre

1100130R

1

Rearwheel 26" Spox std 6 clips



1100103

1

Rearwheel 26" Spox std 6 clips

no tyre

1100103R

1

Rearwheel 26" Spox std gel coated

pushrim

1100105

1

Rearwheel 26" Spox std gel coated

pushrim no tyre

1100105R

1

Rearwheel 26" Spox std PRC-pushrim



1100104

1

Rearwheel 26" Spox std PRC-pushrim

no tyre

1100104R

1

Rearwheel 26" Spox std titanium rim



1100101

1

Rearwheel 26" Spox std titanium rim

no tyre

1100101R

1

Rearwheel 26" Spox std no pushrim



1100100

1

Rearwheel 26" Spox std no pushrim

no tyre

1100100R

1



Rearwheel Spox
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light Yes
Bambino Yes
Micro No
BT Yes
Panthera X Yes
Back

























Rearwheel Spox light

Description art.no qty
Rearwheel  24" Spox light titanium rim, Black 1100120 1
Rearwheel  24" Spox light titanium rim, Black no tyre 1100120R 1
Rearwheel  24" Spox light titanium rim, Red 1100121 1
Rearwheel  24" Spox light titanium rim, Red no tyre 1100121R 1


Rearwheel Spox light
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light Yes
Bambino Yes
Micro No
BT Yes
Panthera X Yes
Back

































Rearwheel Spox Sport

Description



art.no

qty

Rearwheel 24" Spox sport 6 clips



1100073

1

Rearwheel 24" Spox sport 6 clips

utan däck

1100073R

1

Rearwheel 24" Spox sport titanium rim



1100070

1

Rearwheel 24" Spox sport titanium rim

utan däck

1100070R

1

Rearwheel 24" Spox sport no rim



1100071

1

Rearwheel 24" Spox sport

no rim and tyre

1100071R

1

Rearwheel 26" Spox sport 6 clips



1100093

1

Rearwheel 26" Spox sport 6 clips

no tyre

1100093R

1

Rearwheel 26" Spox sport titanring



1100090

1

Rearwheel 26" Spox sport titanring

no tyre

1100090R

1

Rearwheel 26" Spox sport

no rim

1100091

1

Rearwheel 26" Spox sport

no rim and tyre

1100091R

1



Rearwheel Spox Sport
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light Yes
Bambino Yes
Micro No
BT Yes
Panthera X Yes
Back





















Rearwheel Spider

Description

art.no

qty

Rearwheel  22" Spider rim  friction

compact round  st

1100043

Rearwheel  22" Spider rim  friction

compact round  st no däck

1100043R

Rearwheel  22" Spider rim  titanium  pcs



1100041

Rearwheel  22" Spider rim  titanium  pcs

no tyre

1100041R

Rearwheel  22" Spider no rim



1100042

Rearwheel  22" Spider no rim

no tyre

1100042R

Rearwheel  24" Spider rim Max grip

thin

1100031

Rearwheel  24" Spider rim Max grip

thin  no tyre

1100031R



Rearwheel  24" Spider rim Max grip

punkteringsfritt tyre

1100038



Rearwheel  24" Spider rim friction

compact round  pcs

1100030



Rearwheel  24" Spider rim friction

compact round  pcs no tyre

1100030R



Rearwheel  24" Spider rim friction

compact punkfri

1100032



Rearwheel  24" Spider rim titanium  pcs



1100020



Rearwheel  24" Spider rim titanium  pcs

no  tyre

1100020R



Rearwheel  24" Spider black blaster

rim titanium  16mm 5-öron

1100047



Rearwheel  24" Spider black blaster

rim titanium  16mm 5-öron no tyre

1100047R



Rearwheel  24" Spider black blaster

rim polykomp 5 popnuts

1100048



Rearwheel  24" Spider black blaster

rim polykomp 5 popnuts no tyre

1100048R



Rearwheel  24" Spider black blaster

drivring Max grip  thin

1100049



Rearwheel  24" Spider black blaster

drivring Max grip  thin  no tyre

1100049R



Rearwheel  24" Spider black blaster

no drivring

1100051



Rearwheel  24" Spider black blaster

no drivring no tyre

1100051R



Rearwheel  24" Spider titanium  pcs .

punct. free tyre

1100021



Rearwheel  24" Spider no pushrim



1100040



Rearwheel  24" Spider no pushrim

no tyre

1100040R



Rearwheel  26" Spider rim friction

compact round  pcs

1100046



Rearwheel  26" Spider rim friction

compact round  pcs no tyre

1100046R



Rearwheel  26" Spider rim titanium  pcs



1100044



Rearwheel  26" Spider rim titanium  pcs

no tyre

1100044R



Rearwheel  26" Spider no pushrim



1100045



Rearwheel  26" Spider no pushrim

no tyre

1100045R





Rearwheel Spider
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light No
Bambino Yes
Micro Yes
BT No
Panthera X No
Back



























Rearwheel Micro

Description art.no qty
Rearwheel, 18" Micro 1000018 1
Rearwheel, 20" Micro 1000120 1

The adapter is only included when you order a Micro-chair. Not when you order the Micro rearwheels.
.

Rearwheel Micro
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino Yes, with adaptation
Micro Yes
BT No
Panthera X No
Back























Rearwheel Mountainbike

Description art.no qty
Rearwheel 24", MTB, alu pushrim, pcs 1102460 1
Rearwheel 24", MTB, 18" Max grip pushrim, pcs 1102461 1
Rearwheel 24"x2" MTB, without pushrim 1102450 1
Tire, Mountainbike, 24x2 1102465 1

Rearwheel Mountainbike
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light Yes
Bambino Yes
Micro No
BT No
Panthera X No
Back























Rearwheel one-arm drive with QR

You need to order one rearaxle tube and one drive shaft for the current chairwidth to get a complete onearm drive set.
Description art.no qty
One-armdrive kit, 20" wheels with quick release, alu push-rim 1101520 1
One-armdrive kit, 22" wheels with quick release, alu push-rim 1101522 1
One-armdrive kit, 24" wheels with quick release, alu push-rim 1101524 1
One-armdrive kit, 26" wheels with quick release, alu push-rim 1101526 1
One-armdrive kit, 20" wheels with quick release, friction push-rim 1101530 1
One-armdrive kit, 22" wheels with quick release, friction push-rim 1101532 1
One-armdrive kit, 24" wheels with quick release, friction push-rim 1101534 1
One-armdrive kit, 26" wheels with quick release, friction push-rim 1101536 1

Rearwheel one-arm drive
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light No
Bambino Yes
Micro No
BT No
Panthera X No
Back























Rearwheel X

Description  art.no qty
Rearwheel 24" Spinergy X Aluminum pushrim with axle 1100140 1

Rearwheel X
Fits:
S2 Yes
S2 short Yes
S2 short -low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light Yes
Bambino Yes
Micro No
BT No
Panthera X Yes
Back



















Exploded view rearwheel Standard with titanium pushrim

no Description art.no qty
1 Wheelrim 24", Rigida Silver 1000001 1
Wheelrim 22", Rigida Silver 1000011 1
Wheelrim 20", Rigida Silver 1000111 1
2 Rim stripe, 24" 1000006 1
Rim stripe, 22" 1000009 1
Rim stripe, 20" 1000029 1
3 Inner tube, 24" 1000005 1
Inner tube, 22" 1000008 1
Inner tube, 20" 1000028 1
4 Tires 24", Cheng Shin 1000044 1
Tires 22", Cheng Shin 1000007 1
Tires 20", Cheng Shin 1000027 1
5 Pushrim 24" titanium, pcs 1902400 1
Pushrim 22" titanium, pcs 1902200 1
Pushrim 20" titanium, pcs 1902000 1
6 Pushrim, plastic, pcs 1902403 6
7 Bolt, ECS steel M5x10 6005510 6
8 Lock nut DIN 985 steel M5 fzb 7000050 6
9 Nippel 1000003 36
10 Spoke, stainless 24" 1000002 36
Spoke, stainless 22" 1000042 36
Spoke, stainless 20" 1000041 36
11 Hub, comp. 1700000 1
  Hubshell Delfi with bearings 1700070 1
Back





















Exploded view rearwheel Standard with 4-clips for other pushrim

Description art.no qty
Rearwheel, 4-clips , pcs 1100000 1
Rearwheel, 24", 4-clips, Sun-rim , pcs 1102440 1


no Description art.no qty
1 Wheelrim 24", Rigida Silver 1000001 1
2 Rim stripe, 24" 1000006 1
3 Inner tube, 24" 1000005 1
4 Tires, 24" Cheng Shin 1000044 1
5 Nippel 1000003 36
6 Spoke, stainless 1000002 36
7 Wheel clips 1100050 4
8 Rivets, wheel-clips 1100055 8
9 Hub, comp. 1700000 1
  Hubshell Delfi with bearings 1700070 1
Back





























Exploded view rearwheel Standard without clips for other pushrim

Description art.no qty
Rearwheel 24", no pushrim, pcs 1100060 1
Rearwheel 22", no pushrim, pcs 1102201 1
Rearwheel 20", no pushrim, pcs 1102001 1



no Description art.no qty
1 Wheelrim 24", Rigida Silver 1000001 1
Wheelrim 22", Rigida Silver 1000011 1
Wheelrim 20", Rigida Silver 1000111 1
2 Rim stripe, 24" 1000006 1
Rim stripe, 22" 1000009 1
Rim stripe, 20" 1000029 1
3 Inner tube, 24" 1000005 1
Inner tube, 22" 1000008 1
Inner tube, 20" 1000028 1
4 Tires 24", Cheng Shin 1000004 1
Tires 22", Cheng Shin 1000007 1
Tires 20", Cheng Shin 1000027 1
5 Nippel 1000003 36
6 Spoke, stainless 24" 1000002 36
Spoke, stainless 22" 1000042 36
Spoke, stainless 20" 1000041 36
7 Hub, comp. 1700000 1
  Hubshell Delfi with bearings 1700070 1
Back

























Exploded view rearwheel SUN with titanium pushrim
no Description art.no qty
1 Wheelrim, 26" Sun 1000012 1
Wheelrim, 24" Sun 1000013 1
2 Rim stripe, 26" 1000026 1
3 PR 1 MO 26" tubes 1000025 1
PR 1 MO 24" tubes 1000015 1
Inner tube PR1MO 26" car valve 1000025B 1
4 PR 1 MO 26" tires 1000024 1
Tires 24", Cheng Shin 1000044 1
5 Pushrim, 26", pcs 1102601 1
Pushrim, 24" titanium, pcs 1902400 1
6 Pushrim, plastic, pcs 1902403 6
7 Bolt, ECS steel M5x10 6005510 6
8 Lock nut DIN 985 steel M5 fzb 7000050 6
9 Nippel 1000003 36
10 Spoke, stainless 26" 1000062 36
Spoke, stainless 1000002 36
11 Hub, comp. 1700000 1
11b Hub MBL compl. 1700061 1

Back





















Exploded view rearwheel SUN without clips for other pushrim

Description art.no qty
Rearwheel, 26", compl , pcs 1102600 1
Rearwheel, 24", Sun-rim , pcs 1102420 1



no Description art.no qty
1 Wheelrim, 24" Sun 1000013 1
Wheelrim, 26" Sun 1000012 1
2 Rim stripe, 26" 1000026 1
3 PR 1 MO 24" tubes 1000015 1
PR 1 MO 26" tubes 1000025 1
4 Tires 24", Cheng Shin 1000044 1
PR 1 MO 26" tires 1000024 1
5 Nippel 1000003 36
6 Spoke, stainless 1000002 36
Spoke, stainless 26" 1000062 36
7 Hub, comp. 1700000 1
7b Hub MBL compl. 1700061 1

Back























Exploded view rearwheel Spox with titanium pushrim

NB! 25" Spox wheel has 24" tube.

no Description art.no qty
1 Rearwheel 24" Spox std titanium rim 1100080 1
Rearwheel 25" Spox std titanium rim 1100131 1
Rearwheel 26" Spox std titanium rim 1100101 1
2 Rim stripe 1000026 1
3 Inner tube 24"x1" schrader valve 1000005 1
PR1MO 26" tubes 1000025 1
Inner tube PR1MO 26" car valve 1000025B 1
4 Tire Schwalbe RightRun Lite 24" x 1 1000054 1
Tire Schwalbe RightRun 25" x 1 1000055 1
Tire Schwalbe RightRun Lite 26" x 1 1000056 1
5 Pushrim, 24" titanium, Spox 1902411 1
Pushrim, 25" titanium, Spox 1902511 1
Pushrim, 26" titanium, Spox 1902611 1
6 Bolt, ECS steel M5x10 6005510 6
7 Lock nut DIN 985 steel M5 fzb 7000050 6
8 Axle QR 1/2" / 12,7mm x 91 mm SJ 1100022 1
  Spoke Spox 24" 1000082 1
  Spoke Spox 24" Red  1000086 1
  Spoke Spox 25" std   1000085 1
  Spoke Spox 26"  1000083 1

Back



















Exploded view rearwheel Spox with friction pushrim

NB! Pushrim Max Grip and pushrim friction are mounted on rear wheels with 6-clips.
Pushrim Foam and pushrim PRC vinyl are mounted on rear wheels without rim.

NB! 25" Spox wheels has 24" tube.

no Description art.no qty
1
Rearwheel 24" Spox std no rim 1100081 1
Rearwheel 25" Spox std no rim 1100130 1
Rearwheel 26" Spox std 6 clips 1100103 1
Rearwheel 26" Spox std no rim 1100091 1
2 Max grip 21", thin (only for 24" wheels) 1903030 1
Pushrim foam 24" Spoxwheel 1904204 1
Pushrim PRC vinyl 24" Spoxwheel 1904304 1
Pushrim foam 25" Spoxwheel 1904205 1
Pushrim PRC vinyl 25" Spoxwheel 1904305 1
Pushrim friction 26" Spoxwheel ea 1903404 1
Pushrim foam 26" Spoxwheel 1904206 1
Pushrim PRC vinyl 26" Spoxwheel 1904306 1
3 Tire Schwalbe RightRun Lite 24" x 1 1000054 1
Tire Schwalbe RightRun 25" x 1 1000055 1
Tire Schwalbe RightRun Lite 26" x 1 1000056 1
4 Inner tube 24"x1" schrader valve 1000005 1
PR1MO 26" tubes 1000025 1
Inner tube PR1MO 26" car valve 1000025B 1
5 Rim stripe 1000026 1
6 Spacer short Max grip 1903101 6
Spacer long Max grip 1903501 6
7 Bolt MC6S M5x25, fzb 6002525 6
Bolt MC6S M5x35, fzb 6002535 6
9 Axle QR 1/2" / 12,7mm x 91 mm SJ 1100022 1
10 Wheel clips 1100050 6

Back























Exploded view rearwheel Spox light with titanium pushrim

no Description art.no qty
1 Rearwheel 24" Spox light titanium rim 1100120 1
Rearwheel 26" Spox light titanium rim, Red 1100121 1
2 Rim stripe 1000026 1
3 Inner tube, 24" light 1000010 1
4 Tires 24", Cheng Shin 1000044 1
5 Pushrim, 24" titanium, Spox light 1902412 1
6 Bolt, ECS steel M5x10 6005510 6
7 Lock nut DIN 985 steel M5 fzb 7000050 6
8 Axle QR 1/2" / 12,7mm x 91 mm SJ 1100022 1
  Spoke Spox 24" 1000082 1
  Spoke Spox 24" Red  1000086 1

Back

























Exploded view rearwheel Spox sport with titanium pushrim

no Description art.no qty
1 Rearwheel 24" Spox sport titanium rim 1100070 1
Rearwheel 24" Spox sport no rim 1100071 1
Rearwheel 26" Spox sport titanium rim 1100090 1
Rearwheel 26" Spox sport no rim 1100091 1
2 Rim stripe 1000026 1
3 PR 1 MO 24" tubes 1000015 1
PR 1 MO 26" tubes 1000025 1
Inner tube PR1MO 26" car valve 1000025B 1
4 Tires 24", Cheng Shin 1000044 1
PR 1 MO 26" tires 1000024 1
5 Pushrim 24" titanium, Spox sport 1902411 1
Pushrim 26" titanium, Spox sport 1102601 1
6 Bolt, ECS steel M5x10 6005510 6
7 Lock nut DIN 985 steel M5 fzb 7000050 6
8 Axle QR 1/2" / 12,7mm x 104 mm 1100026 1
  Spoke Spox 24" 1000082 1
  Spoke Spox 24" Red  1000086 1
  Spoke Spox 26"  1000083 1

Back



















Exploded view rearwheel Spox Sport with friction pushrim

no Description art.no qty
1 Rearwheel 24" Spox sport titanium rim 1100070 1
Rearwheel 26" Spox sport titanium rim 1100090 1
2a Max grip 21" thin 1903030 1
2b Pushrim friction 24" Spoxwheel ea 1903403 1
2c Pushrim friction 26" Spoxwheel ea 1903404 1
3a Tire 24" CST 24x1" std 1000044 1
3b PR 1 MO 26" tires 1000024 1
4a PR 1 MO 24" tubes 1000015 1
4b PR 1 MO 26" tubes 1000025 1
4c Inner tube PR1MO 26" car valve 1000025B 1
5 Rim stripe 1000026 1
6a Spacer short, Max grip 1903101 6
6b Spacer long, Max grip 1903501 6
7a Bolt MC6S M5x25, fzb 6002525 6
7b Bolt MC6S M5x35, fzb 6002535 6
8 Axle QR 1/2" / 12,7mm x 104 mm 1100026 1
9 Wheel clips 1100050 6

Back



























Exploded view rearwheel Spider with titanium pushrim

no Description art.no qty
1 Spider wheel 24" w titanium push-rim, pcs 1100020 1
Spider wheel 22" w titanium push-rim, pcs 1100041 1
2 Rim stripe, 24" 1000006 1
Rim stripe, 22" 1000009 1
3 Inner tube, 24" 1000005 1
Inner tube, 22" 1000008 1
4 Tires, 24" Cheng Shin 1000044 1
Tires, 22" Cheng Shin 1000007 1
5 Pushrim, 24" titanium, Spider 1902421 1
6 Screw torx MRT M5x10 A4 6000102 5
7 Lock nut DIN 985 steel M5 fzb 7000050 5
8 Washer, M5 8000510 5
9 Axle QR 1/2" / 12,7mm x 99 mm 1100025 1

BearingEE4 1/2" 2RS Spider   3440001

Back





























Exploded view rearwheel Spider with friction pushrim

no Description art.no qty
1 Spider wheel 24" w friction-pushrim, pcs 1100030 1
Spider wheel 22" w friction-pushrim, pcs 1100043 1
2 Rim stripe, 24" 1000006 1
Rim stripe, 22" 1000009 1
3 Inner tube, 24" 1000005 1
Inner tube, 22" 1000008 1
4 Tires, 24" Cheng Shin 1000044 1
Tires, 22" Cheng Shin 1000007 1
5 Pushrim, friction, 24" Spiderwheel ea. 1903402 1
Pushrim, friction, 22" Spiderwheel ea. 1903405 1
6 Screw torx MRT M6x40 A4 6000103 5
7 Axle QR 1/2" / 12,7mm x 99 mm 1100025 1

BearingEE4 1/2" 2RS Spider   3440001

Back























Exploded view rearwheel Micro

no Description art.no qty
1 Wheelrim, 18" Micro 1000019 1
Wheelrim, 20" Micro 1000121 1
2 Tube tires, 18" Micro 1000030 1
Tube tires, 20" Micro 1000122 1
3 Nippel 1000003 12,18
4 Spoke, Micro 18" 1000020 12
Spoke, Micro 20" 1000021 18
5 Hub, comp. 1700000 1
Back



























Exploded view rearwheel X

No Description art.no qty
  Rearwheel complete 1100140  1
1 Hub X with bearim 1700720 1
2 Rim   1
3 Spoke X   24

4

Tube 24” light

1000010

1

5

Tire Schwalbe Speed Run 24” x 1

1000053

1

6

Rim band

1000006

1

7

Push rim Aluminum 24” X

1904404

1

8

Bolt K6S M5x9 alu black

6003509

6
Back









Hub standard
Back

Older standard hub

Hub Delfi new standard hub since 2012-01-01
  Description  art.no qty
1 Hubshell 1700004 1
Hubshell Delfi with bearings 1700070 1
2 BearingEE4 2RS 3440002 2
3 Axel QR 1/2" / 12,7mm x 92 mm 1100027 1
Axle QR 1/2" / 12,7mm x 91 mm SJ 1100022 1
Back

























Hub MBL
Back
no Description art.no qty
1 Hub MBL compl. 1700061 1
2 Hub, basket, compl. 1700060 1
3 Axle QR 1/2" / 12,7mm x 112mm 1700010 1

Back





















Hub X
Back

  Description art.no qty
1 Hub hose X 1700024 1
2 Axle QR 1/2” / 12,7mm x 99mm ti X 1700710 1
3 Bearing EE4 2RS  3440002 2
Back

















The wheelchair total width with different rearwheels
Back
Valid for 24" rearwheels and rear axle Carbon with 2,2° camber (standard)
    Seat width (cm)
Rear axle Carbon (+ 0 mm)   24 27 30 33 36 39 42 45 50
Rearwheel Size Pushrim   Total width  (mm)
Std 24" Titanium 447 477 507 537 567 597 627 657 707
Std 24" PRC (clips) * 459 489 519 549 579 609 639 669 719
Std 24" Foam coated * 461 491 521 551 581 611 641 671 721
Spider 24" Titanium 459 489 519 549 579 609 639 669 719
Spider 24" Friction 461 491 521 551 581 611 641 671 721
SUN ** 24" Titanium 467 497 527 557 587 617 647 677 727

Rear axle Carbon (+ 15 mm)
Rearwheel Size Pushrim   Total width  (mm)
Std 24" Titanium 462 492 522 552 582 612 642 672 722
Std 24" PRC (clips) * 474 504 534 564 594 624 654 684 734
Std 24" Geléplast * 476 506 536 566 596 626 656 686 736
Spider 24" Titanium 474 504 534 564 594 624 654 684 734
Spider 24" Friction 476 506 536 566 596 626 656 686 736
Spox 24" Titanium 462 492 522 552 582 612 642 672 722
Spox 24" PRC (clips) 470 500 530 560 590 620 650 680 730
Spox 24" Foam coated * 472 502 532 562 592 622 652 682 732
SUN ** 24" Titanium 482 512 542 572 602 632 662 692 742
* short distance
** MBL hub
