Footrest

Standard U2 (light) S2 30-33 cm

Foldable, new





Swing

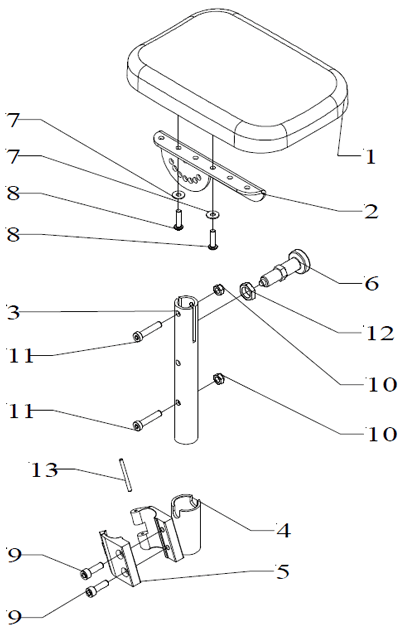

Amp.support

Bambino

Micro

Footrest plate

Footrest BT

 X Footrest special

























Footrest standard
Back Assembly instr. Fits All footrest
NOTE! Footrest width 50 cm only available in aluminum.

no Description art.no qty
1 Footrest w cover, plug, 33 3600133 1
Footrest w cover, plug, 36 3600136 1
Footrest w cover, plug, 39 3600139 1
Footrest w cover, plug, 42 3600142 1
Footrest w cover, plug, 45 3600145 1
2 Endplug, Typ UKB 19-15,5 S 9000367 2
3 Plastic, footrest 3600111 2
4 Bolt, K6S 10.9 M5x25 fzb 6003525 2
Footrest standard
Fits chair:
S2 Yes, standard (width 36-45)
S2 short Yes, standard (width 36-45)
S2 short-low Yes
S2 large Yes
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino No
Micro No
BT No
Panthera X No
Tillbaka





















Footrest U2 (light)
Back Assembly instr Fits All footrest


no Description art.no qty
1 Footrest U2, 33 3691533 1
Footrest U2, 36 3691536 1
Footrest U2, 39 3691539 1
Footrest U2, 42 3691542 1
Footrest U2, 45 3691545 1
2 Endplug, Typ UKB 19-15,5 S 9000367 2
3 Plastic, footrest 3600111 2
4 Bolt, K6S 10.9 M5x25 fzb 6003525 2
Footrest U2 (light)
Passar till:
S2 No
S2 short No
S2 short-low Yes
S2 large Yes
S2 swing No
S2 swing-short No
U2 Yes, standard
U2 light Yes, standard
Bambino No
Micro No
BT No
Panthera X Yes
Back





























Footrest S2 30-33 cm
Back Assembly instr Fits All footrest



no Description art.no qty
1 Footrest S2 30 with cover, plug 3600131 1
Footrest S2 33 with cover, plug 3600134 1
2 Endplug, Typ UKB 19-15,5 S 9000367 2
3 Plastic, footrest 3600111 2
4 Bolt, K6S 10.9 M5x25 fzb 6003525 2
Footrest S2 30-33 cm
Fits chair:
S2 Yes, standard (width 30-33)
S2 short Yes, standard (width 30-33)
S2 short-low Yes
S2 large Yes
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino No
Micro No
BT No
Panthera X No
Back

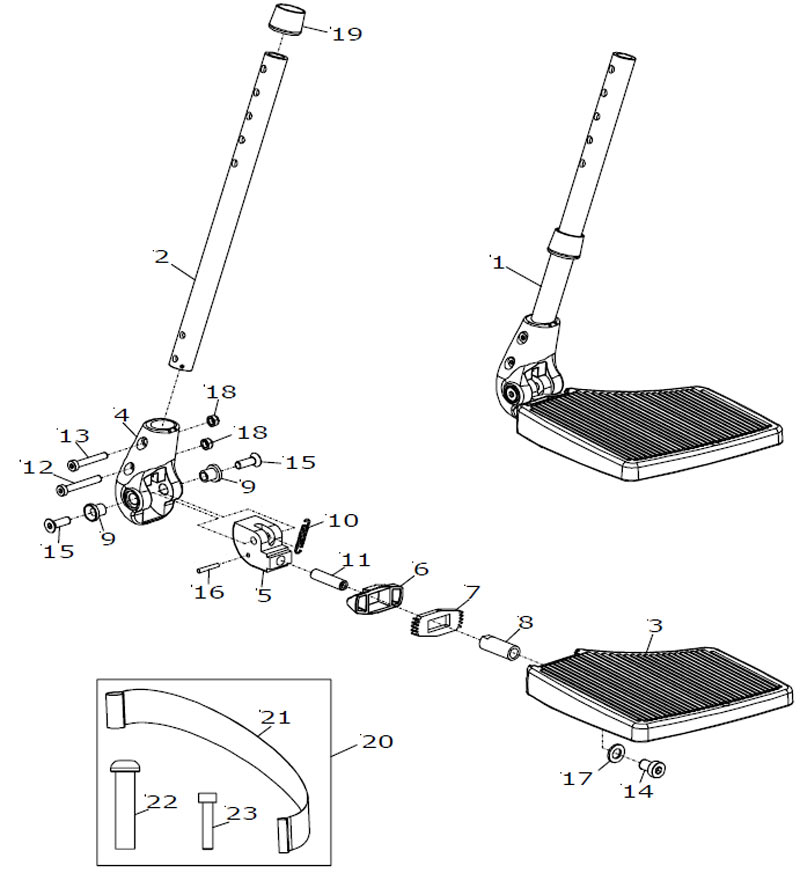

Foldable footrest, new

Description art.no qty
Foldable footrest new, 33/36, pair 6703300 1
Foldable footrest new, extended, 33/36, pair 6723300 1
Foldable footrest new, 39/42, pair 6703900 1
Foldable footrest new, extended, 39/42, pair 6723900 1
Foldable footrest new, 45, pair 6704500 1
Foldable footrest new, extended, 45, pair 6724500 1
Foldable footrest new, 50, pair 6705000 1
Foldable footrest new, extended, 50, pair 6725000 1

Back

no Description art.no qty
1 Foldable footrest new, 33/36 left 6703301 1
Foldable footrest new, 33/36 right 6703302 1
Foldable footrest new, extended, 33/36 left 6723301 1
Foldable footrest new, extended, 33/36 right 6723302 1
Foldable footrest new, 39/42 left 6703901 1
Foldable footrest new, 39/42 right 6703902 1
Foldable footrest new, extended, 39/42 left 6723901 1
Foldable footrest new, extended, 39/42 right 6723902 1
Foldable footrest new, 45 left 6704501 1
Foldable footrest new, 45 right 6704502 1
Foldable footrest new, extended, 45 left 6724501 1
Foldable footrest new, extended, 45 right 6724502 1
Foldable footrest new, 50 left 6705001 1
Foldable footrest new, 50 right 6705002 1
Foldable footrest new, extended, 50 left 6725001 1
Foldable footrest new, extended, 50 right 6725002 1
2 Tube foldable footrest new, right (not sold separately)   1
Tube foldable footrest new, left (not sold separately)   1
Tube foldable footrest new extended, right (not sold separately)   1
Tube foldable footrest new extended, left (not sold separately)   1
3 Footplate new, 33/36 left 6713301 1
Footplate new, 33/36 right 6713302 1
Footplate new, 39/42 left 6713901 1
Footplate new, 39/42 right 6713902 1
Footplate new, 45 left 6714501 1
Footplate new, 45 right 6714502 1
Footplate new, 50 left 6715001 1
Footplate new, 50 right 6715002 1
4 Plastic shell footrest right 6701002 1
Plastic shell footrest left 6701003 1
5 Joint alu footrest 6701008 1
6 Middlepart plastic footrest right 6701006 1
Middlepart plastic footrest left 6701007 1
7 Middlepart alu footrest 6701005 1
8 Bushing tread footrest new 6701009 1
9 Bushing footrest new 6701001 2
10 Spring footrest 6701004 1
11 Locking bolt 6701014 1
12 Bolt MLC6S M5x35 fzb 6002535 1
13 Bolt MLC6S M5x30 fzb 6002530 1
14 Bolt MC6S M8x12 fzb 6002812 1
15 Bolt MF6S M6x18 fzb 6007618 2
16 Springy tube pin 3x20 6701018 1
17 Washer 8,4x15x1,6 fzb 8000815 1
18 Lock nut DIN 985 steel M5 fzb 7000050 2
19 End plug UKB 1917S 9000365 1


Choice Heal strap

NB! Heelstrap pair contains of 1 heel strap right, 1 heel strap left, 2 pin heel strap and 2 bolt MC6S M5x25.
no Description art.no qty
20 Heel strap 33/36, pair 3700335 1
Heel strap 39/42, pair 3700341 1
Heel strap 45, pair 3700347 1
Heel strap 50, pair 3700352 1
21 Heel strap 33/36, right 3700333 1
Heel strap 33/36, left 3700334 1
Heel strap 39/42, right 3700339 1
Heel strap 39/42, left 3700340 1
Heel strap 45, right 3700345 1
Heel strap 45, left 3700346 1
Heel strap 50, right 3700350 1
Heel strap 50, left 3700351 1
22 Pin heel strap 6701019 2
23 Bolt MC6S M5x25 fzb 6002525 2



Foldable footrest
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 No
U2 light No
Bambino No
Micro No
BT No
Panthera X No
Back



































Footrest tube pre-assembly

nr

Description

 art.no qty
1 Footrest tube foldable new right  pre assembly 6701110 1
Footrest tube foldable new left  pre assembly 6701111 1
Footrest tube foldable extended new right  pre assembly 6701112 1
Footrest tube foldable extended new left  pre assembly 6701113 1
2 Footrest tube foldable new , right  6701010 1
Footrest tube foldable new , left 6701011 1
Footrest tube foldable extended new , right  6701012 1
Footrest tube foldable extended new , left 6701013 1
3 Plastic shell folding right  6701002 1
Plastic shell folding left 6701003 1
4 Joint alu. folding new  6701008 1
5 Middle part plastic folding right  6701006 1
Middle part plastic folding left 6701007 1
6 Middle part alu. folding 6701005 1
7 Bushing threaded folding new  6701009 1
8 Bushing folding  6701001 2
9 Spring folding  6701004 1
10 Locking pin folding new  6701014 1
11 Bolt MLC6S M5x35 fzb 6002535 1
12 Bolt MLC6S M5x30 fzb 6002530 1
13 Bolt MF6S M6x18 Försänkt insex fzb 6007618 2
14 Nut DIN 985 M5 fzb lĺg nylock 7000050 2
15 Fjädrande rörpinne 3x20 rostfri 6701018 1
Back



























Footrest Bambino
no Description art.no 1
1 Footplate Bambino 24 cpl set +24 mm 4002125 1
Footplate Bambino, 27, complete set 4002127 1
Footplate Bambino 27 cpl set +24mm 4002128 1
Footplate Bambino, 30, complete set 4002130 1
Footplate Bambino 30 cpl set +24 mm 4002131 1
Footplate Bambino, 33, complete set 4002133 1
Footplate Bambino 33 cpl set +24 mm 4002134 1
Footplate Bambino, 36, complete set 4002136 1
Footplate Bambino 36 cpl set +24 mm 4002137 1
Footplate Bambino, 39, complete set 4002139 1
Footplate Bambino 39 cpl set +24 mm 4002140 1

2 Footplate (tray) Bambino 24 +24 mm 4003025 1
Footplate (tray) Bambino 27 4003027 1
Footplate (tray) Bambino 27 +24mm 4003028 1
Footplate (tray) Bambino 30 4003030 1
Footplate (tray) Bambino 30 +24 mm 4003031 1
Footplate (tray) Bambino 33 4003033 1
Footplate (tray) Bambino 33 +24 mm 4003034 1
Footplate (tray) Bambino 36 4003036 1
Footplate (tray) Bambino 36 +24mm 4003037 1
Footplate (tray) Bambino 39 4003039 1
Footplate (tray) Bambino 39 +24 mm 4003040 1
3 Attachment footrest Bambino 4380105 2
4 Hinge clamp 4601115 2
Hinge clamp inner 4601111 2
Hinge clamp outer 4601112 2
Springy Tube-pin 3x26 9000326 2
5 Clamp single basket 4601120 2
6 Calf-strap, Bambino 27-30 compl. 4380350 1
Calf-strap, Bambino 33-39 compl. 4380351 1
Calf-strap, Bambino 27-30 hard velcro 4380352 1
Calf-strap, Bambino 27-30 soft velcro 4380353 1
Calf-strap, Bambino 33-39 hard velcro 4380354 1
Calf-strap, Bambino 33-39 soft velcro 4380355 1
7 Washer, NB steel 6x16x1 fzb 8000616 8
8 Washer, BRB steel 6.4x12 fzb 8000612 2
9 Bolt, MLC6S 8,8 M6x16 fzb 6002617 4
10 Bolt, M6S 8.8 M6x55 6001655 2
11 Lock nut DIN 985 steel M6 fzb 7000061 2
12 Lock nut, DIN 985 steel M6 fzb 7000060 2
Footrest Bambino
Fits chair:
S2 Yes, up to width 39
S2 short Yes, up to width 39
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 Yes, up to width 42
U2 light NEJ
Bambino Yes, standard
Micro No
BT No
Panthera X No

Back

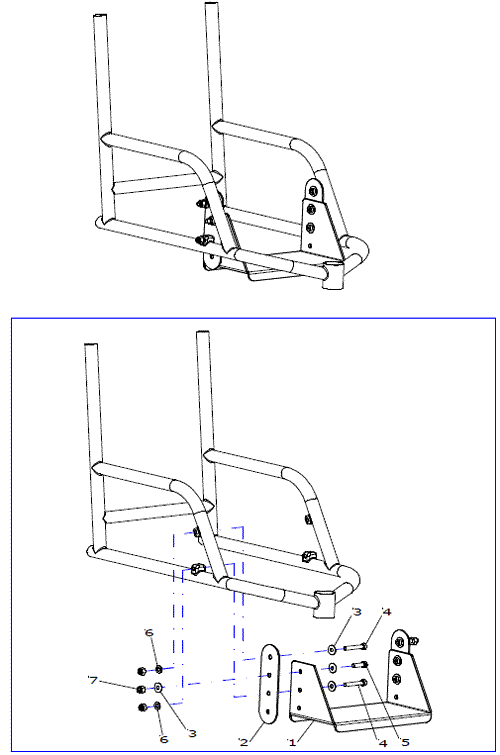

Footrest  Micro



no Description art.no qty
1 Footrest Micro 24 4380124 1
Footrest Micro 27 4380127 1
2 Attachment plate, footrest Micro 4380140 2
3 Washer, NB steel 6x16x1 fzb 8000616 8
4 Bolt, MLC6S M6x35, fzb 6002635 4
5 Bolt, MC6S 8,8 M6x16 fzb 6002617 2
6 Washer, BRB steel 6.4x12 fzb 8000612 4
7 Lock nut DIN 985 steel M6 fzb 7000061 6
Footrets  Micro
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
No No
Bambino With adaptation
Micro Yes, standard
BT No
Panthera X No

Back





















Footrest upper Swing
Back Assembly instr. Footplate Fits All footrest

no Description art.no qty
1 Footrest swing left upper part 6601001 1
Footrest swing right upper part 6601002 1
Footrest Swing left with footplate compl 33/36 6603601 1
Footrest Swing left with footplate compl 39/42 6603901 1
Footrest Swing left with footplate compl 45 6604501 1
Footrest Swing right with footplate compl 33/36 6603602 1
Footrest Swing right with footplate compl 39/42 6603902 1
Footrest Swing right with footplate compl 45 6604502 1
2 Leg support left 6601101 1
Leg support right 6601102 1
3 Plastic cover upper 4390121 1
4 Plastic cover lower 4390122 1
5 Knob swing 4390103 1
6 Lock plate 6601005 1
7 Flap swing right 4390126 1
8 Flap swing left 4390125 1
9 Spring flap swing 4390124 1
10 Tread pin swing 4390104 4
11 Spring case 6601007 1
12 Spring push swing 9004101 1
13 Spring pin swing 4390102 1
14 Screw PT WN1412 1,8mmx10mm 6005612 4
15 Nut DIN 934 M4, fzb 7000041 8
16 End plug IKPK 1916.5-17 black 9001916 1
17 End plug UKB 1917 black 9000365 1
18 Bolt K6S M5 / 6mm x 23 fzb 6003523 1
Footrest upper Swing
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing Yes
S2 swing-short Yes
U2 No
No No
Bambino No
Micro No
BT No
Panthera X No

Back

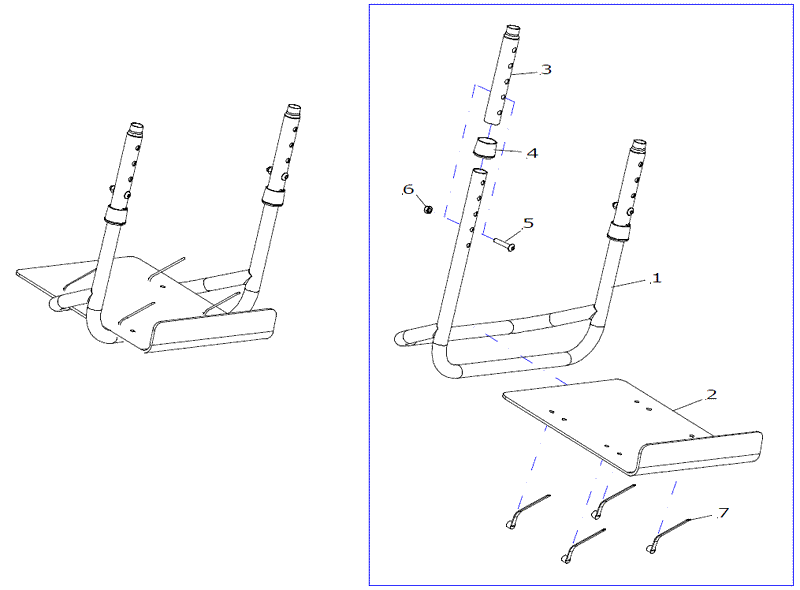

Footrest and footplate BT

no Description art.no qty
1 Footrest U2, 33 3691533 1
Footrest U2, 36 3691536 1
Footrest U2, 39 3691539 1
Footrest U2, 42 3691542 1
2 Footrest plastic BT 33 cm 4370133 1
Footrest plastic BT 36 cm 4370136 1
Footrest plastic BT 39 cm 4370139 1
Footrest plastic BT 42 cm 4370142 1
3 Plastic, footrest 3600111 2
4 Endplug, Typ UKB 19-15,5 S 9000367 2
5 Bolt, K6S 10.9 M5x25 fzb 6003525 2
6 Nut DIN982 M5 fzb, high nylock 7000051 2
7 Strapps 9000045 4
Footrest and footplate BT
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
No No
Bambino No
Micro No
BT Yes
Panthera X No

Back

























Footrest plate
no Description art.no qty
1 Footrest plate, 30/33 3601033 1
Footrest plate, 36 3601036 1
Footrest plate, 39 3601039 1
Footrest plate, 42 3601042 1
Footrest plate, 45 3601045 1
2 Strapps 9000045 8
Footrest plate
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing No
S2 swing-short No
U2 Yes
No Yes
Bambino No
Micro No
BT Yes
Panthera X No
Back



































Footrest X
Back

Assembly instr. pdf

 Fits All fotrest
no Description art.no qty
1 Footrest X 33     1
1 Footrest X 36     1
1 Footrest X 39     1
1 Footrest X 42     1
1 Footrest X 45     1
2 Bolt K6S 10.9 M5x28 black chrome 6003528 2
3 Nut Footrest X 4810162 2
4 Footrest X 33 cpl 3600433 1
4 Footrest X 36 cpl 3600436 1
4 Footrest X 39 cpl 3600439 1
4 Footrest X 42 cpl 3600442 1
4 Footrest X 45 cpl 3600445 1
Footrest X
Fits:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 Yes
U2 light Yes
Bambino No
Micro No
BT No
Panthera X Yes
Back




























Amputation support
Description art.no qty
Cushion ampsupport 6760510 1
Amputation leg support compl. right 6760501 1
Amputation leg support compl.  left 6760502 1
no Description art.no qty
1 Cushion ampsupport 6760510 1
2 Plate amp. supportcushion right 6760511 1
  Plate amp. supportcushion left 6760512 1
3 Tube amp. support 6760513 1
4 Clamp inner amp.support. right 6760521 1
  Clamp inner amp.support. Left 6760522 1
5 Clamp outer amp.support. right 6760531 1
  Clamp outer amp.support. Left 6760532 1
6 Adjustmentbolt 6760514 1
7 Washer M5x16x1 8000516 2
8 Bolt K6S 109 M5x20 fzb 6003520 2
9 Bolt MC6S 88 M6x20 fzb 6002620 2
10 Lock nut DIN 985 steel M6 fzb 7000060 2
11 Bolt MLC6S M6x30 fzb 6002630 2
12 Washer M5 8000510 2
13 Springy Tube-pin 3x26 9000336 1


Amp.support
Fits chair
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
No No
Bambino No
Micro No
BT No
Panthera X No
Back



























Footrest special

Forward turning Fits S2 anf S2 short. (also std, short, high, 13 and short 13)
Description art.no qty
Footrest, forward turning, 33 4120033 1
Footrest, forward turning, 36 4120036 1
Footrest, forward turning, 39 4120039 1
Footrest, forward turning, 42 4120042 1
Footrest, forward turning, 45 4120045 1
Without healsupport   Fits S2 anf S2 short. (also std, short, high, 13 and short 13)
Description art.no qty
Footrest, no healsupport, 33 3620033 1
Footrest, no healsupport, 36 3620036 1
Footrest, no healsupport, 39 3620039 1
Footrest, no healsupport, 42 3620042 1
Footrest, no healsupport, 45 3620045 1
Extended (reinforced) std Fits S2 and S2 short.
Description art.no qty
Footrest extended, std 33 3611033 1
Footrest extended, std 36 3611036 1
Footrest extended, std 39 3611039 1
Footrest extended, std 42 3611042 1
Footrest extended, std 45 3611045 1
Extended (reinforced) U2 Fits U2, U2 light and X
Description art.no qty
Footrest extended, U2 33 3600633 1
Footrest extended, U2 36 3600636 1
Footrest extended, U2 39 3600639 1
Footrest extended, U2 42 3600642 1
Footrest extended, U2 45 3600645 1
Back
