Sideguards / armrest

Plastic

With cover

With cover 26" wheel

With cover extended

With armrest


With armrest flat

U2 light

Carbon small cover

Carbon large cover

Bambino


Bambino  winter

Attachments































Sideguards plastic
Description art.no qty
Sideguards plastic new, pair 4400010 1
Sideguards plastic 26", pair 4400040 1
Sideguards plastic
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light No
Bambino with adaptation
Micro with adaptation
BT with adaptation
Panthera X No
Back

























Sideguards with cover

Description art.no qty
Sideguards with cover, pair 4420010 1
Sideguards with cover
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light No
Bambino with adaptation
Micro with adaptation
BT with adaptation
Panthera X No
Back























Sideguards with cover 26" wheel

Description art.no qty
Sideguards with cover 26", pair (inc.attachments) 4420040 1
Sideguards with cover 26" wheel
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light No
Bambino No
Micro No
BT No
Panthera X No
Back























Sideguards with cover extended

These sideguards only fits in attachment armrest.

Description art.no qty
Sideguards with cover, extended, pair 4420030 1
Sideguards with cover extended
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light No
Bambino No
Micro No
BT No
Panthera X No
Back

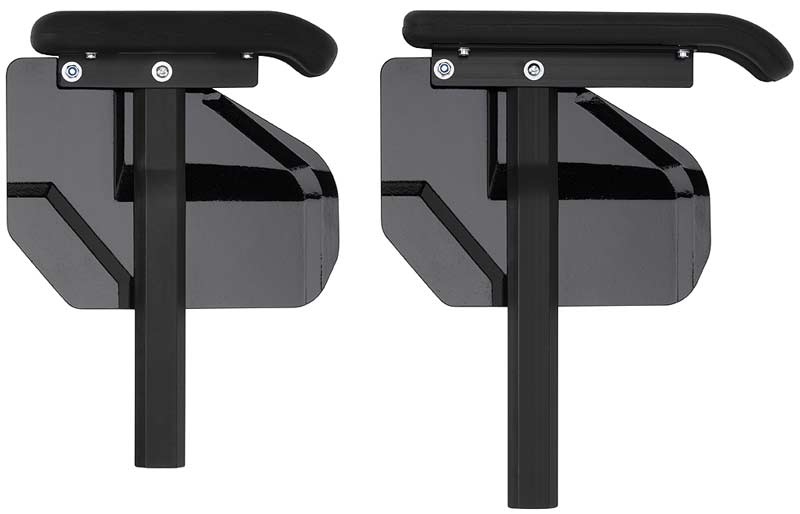

Sideguards with armrest

Description art.no qty
Armrest, compl, pair 4430100 pair
Armrest, Bambino compl, pair 4430110 pair
Armrest, compl, pair extended 35 mm 4430120 pair
Armrest, long cushion, compl, pair 4430130 pair
Armrest, long cushion, compl, pair extended 35 mm 4430140 pair

Sideguards with armrest
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light No
Bambino Yes, see art.no. 4430110
Micro No
BT No
Panthera X No
Back













Sideguards with armrest with flat cushion

Description  art.no

qty
Armrest flat cushion, compl, pair 4430150 pair
Armrest flat cushion right 4430151 pcs
Armrest flat cushion left 4430152 pcs

Sideguards with armrest with flat cushion
Fits:
S2 Yes
S2 shor Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 JA
U2 light No
Bambino with adaptation
Micro No
BT No
Panthera X No
Back

















Sideguards U2 light 24", 26"

Description art.no qty
Sideguards U2 light 24" with attachments, pair 4420510 1
Sideguards U2 light 24"on X cpl pair with attachments 4420515 1
Sideguards U2 light 26" with attachments, pair 4420530 1
Sideguards U2 light 26"on X cpl pair with attachments 4420535 1

Sideguards U2 light 24", 26"
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light Yes
Bambino No
Micro No
BT No
Panthera X Yes
Back























Sideguards Carbon small cover 264g /p incl. attachment

Description

 art.no qty
Side guard carbon small U2L 24" wheel compl. pair (U2 light) 4420730  1
Side guard carbon small U2L 25"-26" wheel Pair backrest 30-35 (U2 light) 4420733 1
Side guard carbon small U2L 25"-26" wheel Pair- backrest 25 (U2 light) 4420736 1
Side guard carbon small X 24" wheel compl. pair (Panthera X) 4420740  1
Side guard carbon small X 25-26" wheel compl. pair (Panthera X) 4420743 1
Sideguards Carbon small cover
Fits:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light Yes
Bambino No
Micro No
BT No
Panthera X Yes
Back

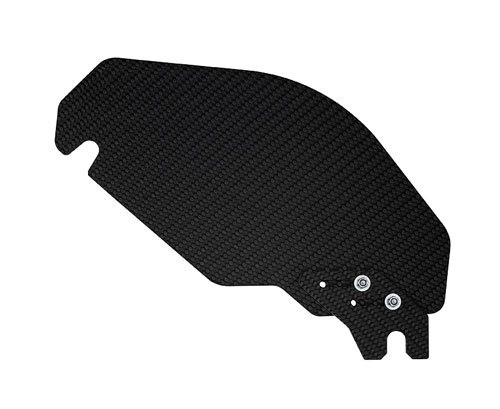

Sideguards Carbon large cover 280g /p incl. attachment

Description

 art.no qty
Sideguard carbon large U2L 24" wheel compl. pair (U2 light) 4420630  1
Sideguard carbon large U2L  25"-26" wheel Pair backrest 30-35 (U2 light) 4420633 1
Sideguard carbon large U2L 25"-26" wheel Pair backrest 25 (U2 light) 4420636 1
Sideguard carbon large X cover 24" wheel compl. pair (Panthera X) 4420640  1
Sideguard carbon large X 25-26" wheel compl. pair (Panthera X) 4420643 1
Sideguards Carbon large cover
Fits:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light Yes
Bambino No
Micro No
BT No
Panthera X Yes
Back





















Sideguards Bambino 20", 22", 24"

Description art.no qty
Sideguards Bambino 20"compl. with attachments 4410015 1
Sideguards Bambino 22"compl. with attachments 4410010 1
Sideguards Bambino 24"compl. with attachments 4410410 1
Sideguards Bambino 20", 22", 24"
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino Yes
Micro No
BT No
Panthera X No
Back





















Sideguard Bambino 20", 22", 24" winter
Description  art.no qty
Sideguard Bambino 20" Winter compl. with attachment 4410115 1
Sideguard Bambino 22" Winter compl. with attachment 4410110 1
Sideguard Bambino 24" Winter compl. with attachment 4410310 1

Sideguard Bambino 20", 22", 24" winter
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino Yes
Micro No
BT No
Panthera X No
Back





















Exploded view sideguard plastic

no Description art.no qty
1 Sideguards Plastic new pair 4400010 1
Sideguards Plastic 26" pair 4400040 1
2 Sideguards plastic right New model 4400011 1
Sideguards plastic left New model 4400012 1
Sideguards plastic right 26" 4400041 1
Sideguards plastic left 26" 4400042 1
3 Roll, sideguards 4400004 2
4 Clamp 4600008 2
5 Washer, BRB steel 6.4x12 fzb 8000612 1
6 Washer NB steel 6x19x1 fzb 8000619 4
7 Bolt, M6S 8.8 M6x45 6001645 1
Back

























Exploded view sideguard with cover

no Description art.no qty
1 Sideguard with cover right 4420011 1
Sideguard with cover left 4420012 1
2 Cover plate sideguard with cover right 4420211 1
Cover plate sideguard with cover left 4420212 1
3 Attachment tube sideguard with cover 4420061 1
4 Bushing sideguard 7001020 1
5 Bolt MELC6S M6X20, black 6004620 1
6 Rivet, sideguard 9000701 1
Back



























Exploded view sideguard with cover for 26" wheels

no Description art.no qty
1 Sideguards with cover 26", right 4420041 1
Sideguards with cover 26", left 4420042 1
2 Cover plate sideguard with cover right 26" 4420213 1
Cover plate sideguard with cover left 26" 4420214 1
3 Attachment tube sideguard with cover 26" 4420063 1
4 Bushing sideguard 7001020 1
5 Bolt MELC6S M6x20, black 6004620 1
6 Rivet, sideguard 9000701 1
7 Washer, M5 8000510 2
8 Bolt M6S M5x20, fzb 6001520 1
9 Lock nut DIN 985 steel M5 fzb 7000050 1
Back



























Exploded view sideguard with cover , extended

no Description art.no qty
1 Sideguard with cover right, extended 4420031 1
Sideguard with cover left, extended 4420032 1
2 Cover plate sideguard with cover right 4420211 1
Cover plate sideguard with cover left 4420212 1
3 Extended attachment tube sideguard with cover 4420062 1
4 Bushing sideguard 7001020 1
5 Bolt MELC6S M6X20, black 6004620 1
6 Rivet, sideguard 9000701 1
Back

























Exploded view sideguard with armrest

no Description art.no qty
1 Armrest, compl, right 4430101 1
Armrest, compl, right long cushion 4430131 1
Armrest, compl, right extended 35 mm 4430121 1
Armrest, compl, right long cushion extended 35 mm 4430141 1
Armrest, compl, left 4430102 1
Armrest, compl, left long cushion 4430132 1
Armrest, compl, left extended 35 mm 4430122 1
Armrest, compl, left long cushion extended 35 mm 4430142 1
Armrest, Bambino compl, right 4430101 1
Armrest, Bambino compl, left 4430102 1
2 Cover plate armrest right 4430011 1
Cover plate armrest left 4430012 1
3 Armrest tube 4410020 1
Armrest tube extended 35 mm 4410022 1
4 Armrest cuishon 4430200 1
Armrest cuishon long 4430201 1

5 L-profile armrest right 4412017 1
L-profile armrest right long 4412019 1
  L-profile armrest left 4412016 1
  L-profile armrest left long 4412018 1
6 Spacer, Casterwheel 9024000 3
7 Bushing armrest 7001021 1
8 Bolt, MLC6S M5x20, fzb 6002520 2
9 Bolt K6S 109 M6x20 6003620 1
10 Bolt K6S 109 M6x20 6003620 1
11 Washer, NB steel 6x16x1 fzb 8000616 4
12 Washer, M5 8000510 6
13 Lock nut, DIN 985 steel M6 fzb 7000060 1
14 Rivet, sideguard 9000701 1
Back

















Exploded view sideguards with armrest with flat cushionlång rak dy

no Description art.no qty
1 Cover plate armrest right 4430011 1
1 Cover plate armrest left 4430012 1
2 Armrest tube 4410020 1
3 L-profile armrest right 4412021 1
3 L-profile armrest left 4412020 1
4 End-plug IKPK 25-22S 9002400 1
5 Bolt MLC6S M5x20 fzb 6002520 2
6 Washer M5 8000510 2
7 Washer NB steel 6x16x1 fzb 8000616 4
8 Bolt K6S M6x20 fzb 6003620 2
9 Bushing armrest 7001021 1
10 Lock nut DIN 985 steel M6 fzb 7000060 1
11 Rivet sideguard 9000701 1
12 L-profile armrest  4412022 1
13 Armrest flat cushion long 4430202 1
Back













Exploded view sideguard U2 light 24", 26"

no Description art.no qty
1 Sideguard U2 light 24", right 4420511 1
Sideguard U2 light 24", left 4420512 1
Sideguard U2 light 26", right 4420531 1
Sideguard U2 light 26", left 4420532 1
2 Cover plate sideguard U2 light 24" left 4420523 1
Cover plate sideguard U2 light 24" right 4420523 1
Cover plate sideguard U2 light 26" left 4420541 1
Cover plate sideguard U2 light 26" right 4420542 1
3



 Attachment plate Sideguard U2 light 4420520 2
Attachment plate Sideguard U2 light II Temp 4420625 2
4 Bolt K6S M5x9 alu black 6003509 4
  Washer M5x16x1 black 8000517 4
5 Bushing nut sideguard U2 light 4420218 4
Back























Exploded view sideguard Bambino 20", 22", 24"

nr Description  art.no qty
1 Sideguard Bambino 20" right 4410016 1
  Sideguard Bambino 20" left 4410017 1
  Sideguard Bambino 22" right 4410011 1
  Sideguard Bambino 22" left 4410012 1
  Sideguard Bambino 24" right 4410411 1
  Sideguard Bambino 24" left 4410412 1
2 Cover plate sideguard Bambino 20" right  4410516 1
  Cover plate sideguard Bambino 20" left  4410517 1
  Cover plate sideguard Bambino 22" right  4410511 1
  Cover plate sideguard Bambino 22" left  4410512 1
  Cover plate sideguard Bambino 24" right  4410511 1
  Cover plate sideguard Bambino 24" left  4410512 1
3 Attachment tube 20" right sideguard Bambino 4410073 1
  Attachment tube 20" left sideguard Bambino 4410074 1
  Attachment tube 22" right sideguard Bambino 4410071 1
  Attachment tube 22" left sideguard Bambino 4410072 1
  Attachment tube 24" right sideguard Bambino 4410061 1
  Attachment tube 24" left sideguard Bambino 4410062 1
4 L-profil sidoskydd Bambino höger 4410051 1
  L-profil sidoskydd Bambino vänster 4410052 1
5 Fästbussning sidoskydd 7001020 1
6 Bult MELC6S M6X20 svartkromat 6004620 1
7 Bult MELC6S M6X12 svartkromat 6004612 1
8 Bricka NB stål 6x16x1 fzb 8000616 3
9 Mutter DIN 985 M6 fzb låg nylock 7000060 1
10 Popnit sidoskydd 9000701 1
Back

















Exploded view sideguard Carbon smal  cover

nr Description  art.no qty
1 Sideguard Carbon small cover right 4420721 1
Sideguard Carbon small cover left 4420722 1
2 Attachment plate Sideguard X 4420720 1
Attachment plate Sideguard U2 light 4420520 1
Attachment plate Sideguard X 26" 4420719 2
3 Bolt K6S 10.9 M5x8 fzb 6003508 2
4 Bushing nut sideguard U2 light 4420218 2
5 Washer M5x16x1 8000517 2
Back



















Exploded view sideguard Carbon large cover

nr Description  art.no qty
1 Sideguard Carbon large cover right 4420621 1
Sideguard Carbon large cover left 4420622 1
2 Bolt K6S 10.9 M5x8 fzb 6003508 2
3 Washer M5x16x1 8000517 2
2 Attachment plate Sideguard X 4420620 1
4 Bushing nut sideguard U2 light 4420218 2
5 Attachment plate Sideguard X 4420720 1
Attachment plate Sideguard U2 light 4420520 1
Attachment plate Sideguard X 26" 4420719 2
Back























Exploded view sideguard Bambino 20",22", 24" winter
nr Benämning   art.nr antal
1 Sideguard, Bambino, 20", Winter, right 4410116 1
  Sideguard, Bambino, 20", Winter, left 4410117 1
  Sideguard, Bambino, 22", Winter, right 4410011 1
  Sideguard, Bambino, 22", Winter, left 4410012 1
  Sideguard, Bambino, 24", Winter, right 4410311 1
  Sideguard, Bambino, 24", Winter, left 4410312 1
2 Cover plate sideguard Bambino 20" Winter, right 4410613 1
  Cover plate sideguard Bambino 20" Winter, left 4410614 1
  Cover plate sideguard Bambino 22" Winter, right 4410511 1
  Cover plate sideguard Bambino 22" Winter, left 4410512 1
  Cover plate sideguard Bambino 24" Winter, right 4410611 1
  Cover plate sideguard Bambino 24" Winter, left 4410612 1
3 Attachment tube 20" sideguard Bambino right  4410073 1
  Attachment tube 20" sideguard Bambino left  4410074 1
  Attachment tube 22" sideguard Bambino right  4410071 1
  Attachment tube 22" sideguard Bambino left  4410072 1
  Attachment tube 24" sideguard Bambino right  4410061 1
  Attachment tube 24" sideguard Bambino left  4410062 1
4 L-profile sideguard Bambino, right 4410051 1
  L-profile sideguard Bambino, left 4410052 1
5 Bushing sideguard 7001020 1
6 Bolt MELC6S M6X20   6004620 1
7 Bolt MELC6S M6X12   6004612 1
8 Washer, NB steel 6x16x1 fzb 8000616 3
9 Lock nut, DIN 985 steel M6 fzb 7000060 1
10 Rivet, sideguard 9000701 1
Back
