Seats
Standard S2 short width 30-33 U2 (all) & S2 short width 36-45 S2 large
Bambino Micro X





























Seat Standard

NB! Seat upholstery for S2 50, is delivered with 2 screws, 2 washers and bar seat, Bambino.

no Description art.no qty
1 Seat upholstery with bar, 33 3273340 1
Seat upholstery with bar, 36 3273640 1
Seat upholstery with bar, 39 3273940 1
Seat upholstery with bar, 42 3274240 1
Seat upholstery with bar, 45 3274540 1
Seat upholstery with bar, 50 3275040 1
2 Seat upholstery, 33 3283340 1
Seat upholstery, 36 3283640 1
Seat upholstery, 39 3283940 1
Seat upholstery, 42 3284240 1
Seat upholstery, 45 3284540 1
Seat upholstery, 50 3285040 1
3 Bar, seat 3890000 2
4 Screw KFXS steel B8x16 fzb 6004816 6
5 Washer upholstery 8001313 6

Seat Standard
Fits chair:
S2 Yes
S2 short No
S2 short-low No
S2 large No
S2 swing Yes
S2 swing-short No
U2 No
U2 light No
Bambino No
Micro Yes
BT Yes
Panthera X No

Back



























Seat S2 short width 30-33

NB! This seat is standard on S2 short in width 30 and 33. The seatdepth is adjustable 27-33 cm. If you want a fixed seatdepth of 35 cm, you can order a regular short seat.
no Description art.no qty
1 Seatupholstery compl. S2 30 3273038 1
Seatupholstery compl. S2 33 3273338 1
2 Seat upholstery S2 Short, 30 3283036 1
Seat upholstery S2 Short, 33 3283336 1
3 Seat extension, S2 30 3273037 1
Seat extension, S2 33 3273337 1
4 Bar Short, seat 3893500 2
5 Cover, seat-bar 3893502 2
6 Screw KFXS steel B8x16 fzb 6004816 6
7 Washer upholstery 8001313 6

Seat S2 short width 30-33
Fits chair:
S2 No
S2 short Yes, width 30-33
S2 short-low Yes, width 30-33
S2 large No
S2 swing No
S2 swing-short No
U2 Yes, with adaptation
U2 light No
Bambino No
Micro No
BT No
Panthera X No

Back

























Seat U2 (all) and S2 short width 36-45

NB! This seat fits S2 short. However not with seat extension. The seatdepth is 35 cm.
nr Benämning  art.nr antal
1 Seat  U2 33 cpl 3273314 1
Seat  U2 36 cpl 3273614 1
Seat  U2 39 cpl 3273914 1
Seat  U2 42 cpl 3274214 1
Seat  U2 45 cpl 3274514 1
2 Seat  m bar Short 30 (326mm) 3273035 1
Seat  m bar Short 33 (326mm) 3273335 1
Seat  m bar Short 36 (326mm) 3273635 1
Seat  m bar Short 39 (326mm) 3273935 1
Seat  m bar Short 42 (326mm) 3274235 1
Seat  m bar Short 45 (326mm) 3274535 1
3 Sitsförlängare U2 bredd 33 3273316 1
Sitsförlängare U2 bredd 36 3273615 1
Sitsförlängare U2 bredd 39 3273915 1
Sitsförlängare U2 bredd 42 3274215 1
Sitsförlängare U2 bredd 45 3274516 1
4 Bar Short sits 3893500 2
5 Skruv KFXS stål B8x16 fzb 6004816 6
6 Klädselbricka AL 8001313 6

Seat U2 and S2 short width 36-45
Fits chair:
S2 No
S2 short Yes, (width 36-45 cm)
S2 short-low Yes, (width 36-45 cm)
S2 large No
S2 swing Yes
S2 swing-short No
U2 Yes
U2 light Yes
Bambino No
Micro Yes
BT Yes
Panthera X No

Back





















Seat S2 large width 39-50

no Description art.no qty
1 Seat upholstery large with bar, 39 3273945 1
Seat upholstery large with bar, 42 3274245 1
Seat upholstery large with bar, 45 3274545 1
Seat upholstery large with bar, 50 3245045 1
2 Bar, seat 3890000 2
3 Screw KFXS steel B8x16 fzb 6004816 6
4 Washer upholstery 8001313 6

Seat S2 large
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large Yes
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino No
Micro No
BT No
Panthera X No



















Seat Bambino

no Description art.no qty
1 Seat upholstery w bar Bambino, 27 3272730 1
Seat upholstery w bar Bambino, 30 3273030 1
Seat upholstery w bar Bambino, 33 3273330 1
2 Seat upholstery Bambino, 27 w bar 3282731 1
Seat upholstery Bambino, 30 w bar 3283031 1
Seat upholstery Bambino, 30 w bar 3283331 1
3 Seat extension, Bambino 27 3272715 1
Seat extension, Bambino 30 3273015 1
Seat extension, Bambino 33 3273315 1
4 Bar, seat bambino 3893501 2
5 Screw KFXS steel B8x16 fzb 6004816 4
6 Washer upholstery 8001313 4

Seat Bambino
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino Yes
Micro No
BT No
Panthera X No

Back





















Seat Bambino with abduction front

no Description art.no qty
1 Seat upholstery Bambino 24 3282430 1
  Seat upholstery Bambino 27 3282730 1
  Seat upholstery Bambino 30 3283030 1
  Seat upholstery Bambino 33 3283330 1
2 Screw KFXS steel ST4,2x16 fzb 6004816 6
3 Washer upholstery AL 8001313 6
4 Bar, seat bambino ABD 3893510 2
5 Cover bar seat 3893502 2
6 Seat extension S2 short 27 3272737 1
Seat extension S2 short 30 3273037 1
Seat extension S2 short 33 3273337 1
Seat extension S2 short 36 3273637 1

Seat Bambino with abduction front
Fits:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino Yes with abduction front
Micro No
BT No
Panthera X No

Back



















Seat Micro

nr Description  art.no qty
1 Seat  Micro 24 cpl 3272420 1
Seat  Micro 27 cpl 3272720 1
Seat  Micro 24 long cpl 3272421 1
Seat  Micro 27 long cpl 3272721 1
2 Seat  Micro 24 3272430 1
Seat  Micro 27 3272729 1
Seat  Micro 24 long  3272431 1
Seat  Micro 27 long  3272731 1
3 Seat  Micro 24 extender 3272440 1
Seat  Micro 27 extender 3272740 1
Seat  Micro 24 long extender 3272441 1
Seat  Micro 27 long extender 3272741 1
4 Upholstery holder Micro 3272499 2
5 Screw KFXS steel B8x16 fzb 6004816 4
6 Upholstery washer AL 8001313 8

Seat Micro
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino No
Micro Yes
BT No
Panthera X No

Back

























Seat X

nr  Description  art.no

qty

1

Seat uppholstery X 33 short compl 3273312

1

Seat uppholstery X 33 long compl 3273313

1

Seat uppholstery X 36 short compl 3273612

1

Seat uppholstery X 36 long compl 3273613

1

Seat uppholstery X 39 short compl 3273912 1
Seat uppholstery X 39 long compl 3273913 1
Seat uppholstery X 42 short compl 3274212 1
Seat uppholstery X 42 long compl 3274213 1
Seat uppholstery X 45 short compl 3274512 1
Seat uppholstery X 45 long compl 3274513 1
2 Seat uppholstery X short 33 without bar 3283310 1
Seat uppholstery X long 33 without bar 3283311 1
Seat uppholstery X short 36 without bar 3283610 1
Seat uppholstery X long 36 without bar 3283611 1
Seat uppholstery X short 39 without bar 3283910 1
Seat uppholstery X long 39 without bar 3283911 1
Seat uppholstery X short 42 without bar 3284210 1
Seat uppholstery X long 42 without bar 3284211 1
Seat uppholstery X short 45 without bar 3284510 1
Seat uppholstery X long 45 without bar 3284511 1
3 Bar seat X 3893503 2
4 Tension strap X seat 33 3273318 1
Tension strap X seat 36 3273618 1
Tension strap X seat 39 3273918 1
Tension strap X seat 42 3274218 1
Tension strap X seat 45 3274518 1
5 Bolt MELC6S M5X20 phosphated 6004520 6
6 Seat extension X 33 3273317 1
Seat extension X 36 3273617 1
Seat extension X 39 3273917 1
Seat extension X 42 3274217 1
Seat extension X 45 3274517 1

Seat X
Fits:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino No
Micro No
BT No
Panthera X Yes

Back

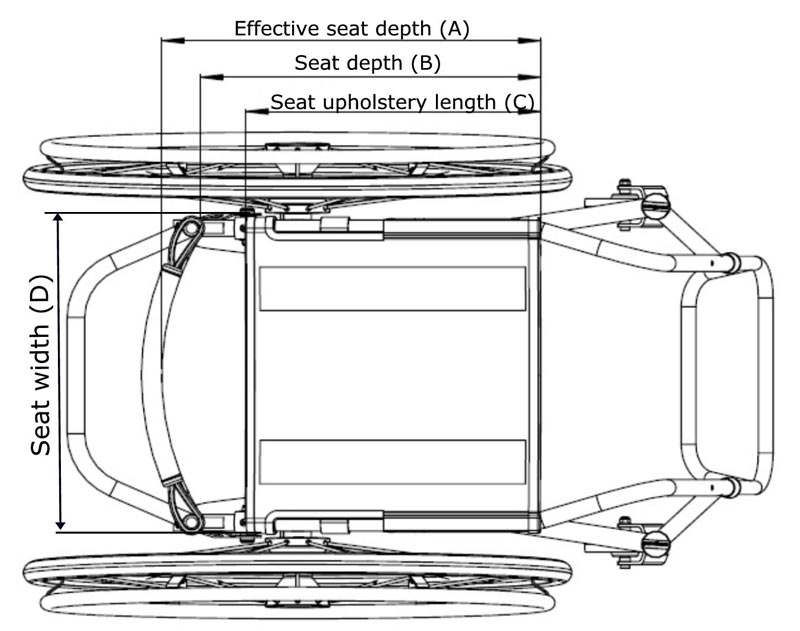

Seat depth

Back

Model

A

A with seat extender

B

B with seat extender

C

S2 410 - 500 - 410 - 376
S2 short 30 - 33 280 - 350 330 - 400 280 330 246
S2 short 36 - 45 360 - 450 - 360 - 326
S2 swing 410 - 500 - 410 - 376
U2 360 - 450 440 - 530 360 440 326
U2 light 360 - 450 440 - 530 360 440 326
Bambino 240 - 290 310 - 360 240 310 200
Micro 140 - 180 200 - 230 140 200 120
Micro long 190 - 230 250 - 280 190 250 170

Effective seatdepth (A) is measured from the middle of the back upholstery to the front of the seat. Effective seat depth (A) vary depending on how much you slack the back upholstery, and what backrest angle you have. Seat depth (B) is measured from the backrest frame to the front of the seat.

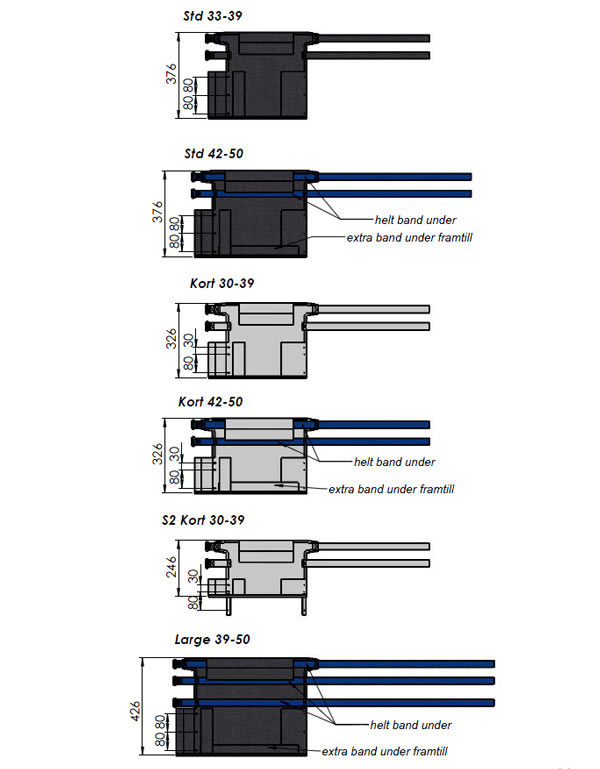

Guide sittklädslar
