Anti-tip device

Standard

Bambino

Micro

Micro long

BT

U2 light

































Anti-tip standard (weight 910 g / pair)

Description art.no qty
Anti Tip Device, comp pair 4351000 1
Anti Tip Device, extended 30 mm, comp pair 4351030 1
Anti Tip Device, extended 60 mm, comp pair 4351060 1
Anti Tip Device, S2 short-low, comp pair 4351200 1
What anti-tip should I choose?
Anti-tip standard
Fits chair:
S2 Yes
S2 short Yes
S2 short-low Yes
S2 large Yes
S2 swing Yes
S2 swing-short Yes
U2 Yes
U2 light No
Bambino No
Micro No
BT No
Panthera X No
Back





























What anti-tip should I choose?? Choice of anti-tip  (pdf)

How to tell the difference of the anti-tip device?
Back

Raising

 Rearwheel Anti-tip +0 mm Anti-tip +30 mm Anti-tip+60 mm

Raising-kit

 art.no. 4351000 art.no. 4351030 art.no. 4351060
+  0 mm 24” X
+  0 mm 25” X
+  0 mm 26” X
+ 10 mm 24” X
+ 10 mm 25” X
+ 10 mm 26” X
+ 20 mm 24” X
+ 20 mm 25” X
+ 20 mm 26” X
+ 30 mm 24” X
+ 30 mm 25”   X
+ 30 mm 26”   X
+ 40 mm 24”   X
+ 40 mm 25”   X
+ 40 mm 26”   X
+ 50 mm 24”   X
+ 50 mm 25”   X
+ 50 mm 26”   X
+ 60 mm 24”     X
+ 60 mm 25”     X
+ 60 mm 26”     X
+ 70 mm 24”     X
+ 70 mm 25”     X
+ 70 mm 26”     X
Back









How to tell the difference of the anti-tip device?
Back
Anti-tip +0 mm X=80 mm
Anti-tip +30 mm X=110 mm
Anti-tip +60 mm X=140 mm
Back





















Anti-tip Bambino (weight 516 g / pair)

Description art.no qty
Anti-tip device, Bambino, pair 4351001 1

Anti-tip Bambino
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino Yes
Micro No
BT No
Panthera X No
Back



























Anti-tip Micro


Anti-tip Micro
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino No
Micro Yes
BT No
Panthera X No
Back































Anti-tip Micro Long


Anti-tip Micro Long
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino No
Micro Yes for Micro long
BT No
Panthera X No
Back





































Anti-tip BT

Benδmning   art.nr antal
Tippskydd basket 33 4370033 1
Tippskydd basket 36 4370036 1
Tippskydd basket 39 4370039 1
Tippskydd basket 42 4370042 1


Anti-tip BT
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light No
Bambino No
Micro No
BT Yes
Panthera X No
Back













































Anti-tip U2 light only when ordering a new chair
Back Assembly instr pdf Exploded view Fits All anti-tip

Description  art.no. QTY
Anti-tip U2 light pcs + assembly kit 4361010 1
Anti-tip U2 light pair + assembly kit 4361000 2


Anti-tip U2 light
Fits chair:
S2 No
S2 short No
S2 short-low No
S2 large No
S2 swing No
S2 swing-short No
U2 No
U2 light Yes
Bambino No
Micro No
BT No
Panthera X No
Back

























Exploded view anti-tip standard

  Description art.no qty
1 Anti Tip Device, pcs, new 4351010 1
Anti Tip Device, extended 30 mm, pcs, new 4351031 1
Anti Tip Device, extended 60 mm, pcs, new 4351061 1
2 Wheeltube, alu 4352030 1
3 End-tube anti tip device new 4351102 1
4 Attachment anti tip device 4351101 1
Attachment anti tip device, extended 30 mm 4351106 1
Attachment anti tip device, extended 60 mm 4351107 1
5 Bushing anti tip 4351123 1
6 Clamp anti tip 4351111 2
7 Spring attachment 4351122 1
8 Cone attachment outer 4351113 1
9 Cone attachment 4351114 1
10 Pulling spring anti tip 4351121 1
11 Springy Tube-pin 5x36 9000536 1
12 Springy Tube-pin 3x36 9000336 1
13 Springy Tube-pin 4x26 9000426 1
14 Springy Tube-pin 2,5x6 9000206 1
15 Bolt, M6S 8.8 M6x40 6001640 2
16 Bolt, MLC6S M6x40 fzb 6002640 1
17 Bolt M6S 8.8 M6x30 6001630 1
18 Washer, BRB steel 6.4x12 fzb 8000612 6
19 Lock nut DIN 985 steel M6 fzb 7000061 3
20 End-plug IKPK 22-20S 9002222 1
21 Endplug, Typ UKB 25205S 9000364 1
22 Anti-tip tube inner 4352022 1
23 Spring, anti-tip, double, plastic 4352015 1
24 Cone fork anti-tip 4352013 1
25 Fork, anti-tip left 4352011 1
26 Fork, anti-tip right 4352012 1
27 Anti-tip wheel 4352017 1
28 Spacer anti-tip 4352014 1
29 Washer, springy, anti-tip 4352019 1
30 Bolt MC6S 8.8 M5x50 fzb 6002550 1
31 Bolt MC6S M5x25 fzb 6002525 1
32 Lock nut DIN 985 steel M5 fzb 7000050 2
33 Cone attachment inner 4351115 1
Back

























Exploded view anti-tip Bambino

no Description art.no qty
1 Anti-tip device, Bambino, pcs 4351011 1
2 Wheeltube, alu 4352030 1
3 End-tube anti tip device new 4351102 1
4 Bushing anti tip 4351123 1
5 Spring attachment 4351122 1
6 Pulling spring anti tip 4351121 2
7 Endplug, Typ UKB 25205S 9000364 1
8 End-plug IKPK 22-20S 9002222 1
9 Springy tube-pin 5x36 9000537 1
10 Springy tube-pin 4x26 9000426 1
11 Springy tube-pin 3x36 9000336 1
12 Springy tube-pin 2,5x6 9000206 1
13 Screw, MRX 4.8 M5 x 40 fzb 6005540 1
14 Washer, M5 8000510 2
15 Lock nut DIN 985 steel M5 fzb 7000050 3
16 Anti-tip tube inner 4352022 1
17 Spring, anti-tip, double, plastic 4352015 1
18 Cone fork anti-tip 4352013 1
19 Fork, anti-tip left 4352011 1
20 Fork, anti-tip right 4352012 1
21 Anti-tip wheel 4352017 1
22 Spacer anti-tip 4352014 1
23 Washer, springy, anti-tip 4352019 1
24 Bolt MC6S 8.8 M5x50 fzb 6002550 1
25 Bolt MC6S M5x25 fzb 6002525 1
Back

























Exploded view anti-tip  Micro

  Description art.no qty
1 Anti tip tube Micro 24 4380224 1
Anti tip tube Micro 27 4380227 1
2 Wheel anti tip Micro 4380230 1
3 Bushing anti tip-wheel Micro 4380231 2
4 Screw, RXS B6x9,5 6005609 4
5 Endplug, Typ UKB 19-15,5 S 9000367 2
Back



























Exploded view anti-tip Micro long

no Description art.no qty
1 Anti tip tube Micro 24 4380224 1
Anti tip tube Micro 27 4380227 1
2 Castorwheel 3"/87mm hard without bearing and bushing 2000051 1
3 Bushing anti tip-wheel Micro 4380231 2
4 Screw, RXS B6x9,5 6005609 4
5 Endplug, Typ UKB 19-15,5 S 9000367 2
Back

















Exploded view anti-tip BT  (10, 12, and 14 degree camber)

  Description art.no qty
1 Anti tip device basket 33 4370033 1
Anti tip device basket 36 4370036 1
Anti tip device basket 39 4370039 1
Anti tip device basket 42 4370042 1
2 Wheel-tube anti-tip basket compl. 4370021 1
3 Tube, anti tip, 33 4370233 1
Tube, anti tip, 36 4370236 1
Tube, anti tip, 39 4370239 1
Tube, anti tip, 42 4370242 1
4 Casterfork anti-tip basket compl. 4370020 1
5 Wheel tube, anti tip, basket 4370002 1
6 Antitip wheel basket 2404003 1
7 Wheel anti-tip basket 4370005 1
8 Hinge Clamp double 4601116 1
Clamp Pin outer double 4601113 1
Hinge clamp inner 4601111 2
Springy Tube-pin 3x26 9000326 2
9 Quick-Release 4250007 1
10 Bearing 2000021 4
11 Spacer anti-tip basket 4370004 2
12 Socket plastic, basket 4370001 1
13 Bushing anti-tip basket 4370003 1
14 Endplug, IKP 19-15/17, black 9000330 1
15 Bolt M6S 8.8M8x45 fzb 6001845 1
16 Lock nut DIN 985 steel M8 fzb 7000080 1
17 Bolt, MLC6S M6x40 fzb 6002640 1
18 Washer, BRB steel 6.4x12 fzb 8000612 9
19 Washer, M8 8000816 1
20 Washer, BRB steel 4,3x9x0,8 fzb 8000409 1
21 Screw RXS 4,2 x 9,5 6005611 1
22 Screw, RXS B6x9,5 6005609 3
23 Nut DIN 439 B steel M8 fzb 7000082 1
24 Lock nut, DIN 985 steel M6 fzb 7000060 1
25 Clamp basket anti tip 28 4370011 2
26 Clamp basket anti tip 19 4370010 2
27 Bolt, MC6S M6x65, fzb 6002665 8
Bolt, MC6S 8.8 M6x75 fzb 6002675 8

Position 27 depends what camber your rear axle has:

Camber 10 degree - Bolt with art.nr 6002665
Camber 12 degree - Bolt with art.nr 6002665
Camber 14 degree - Bolt with art.nr 6002675
Back

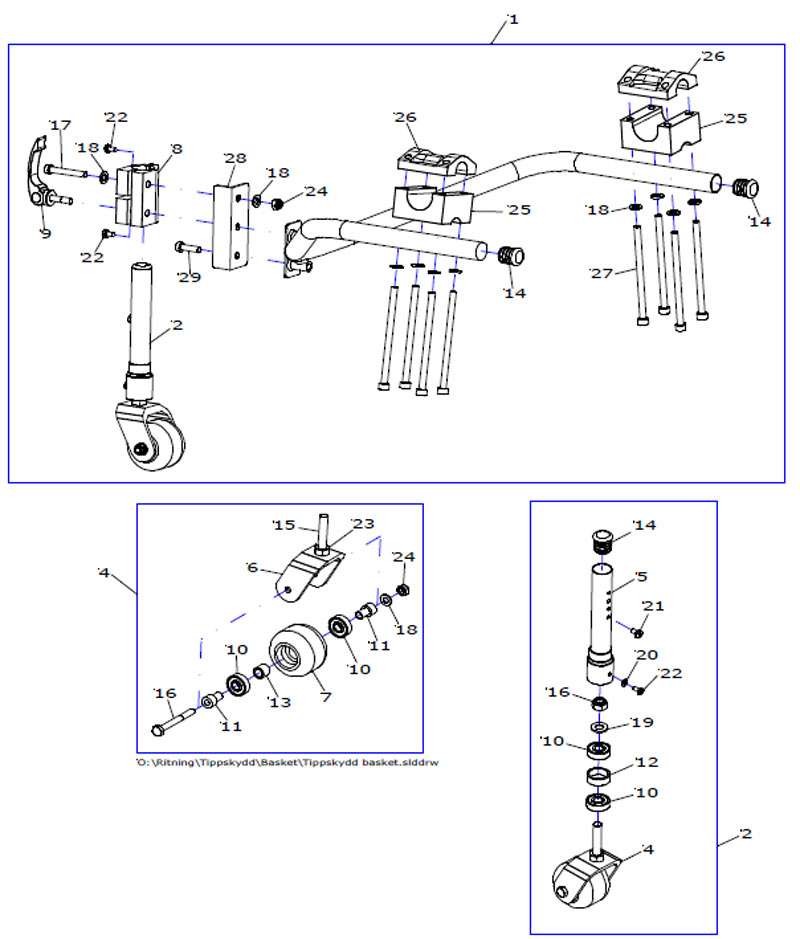

Exploded view anti-tip BT  (18 degree camber)

  Description art.no qty
1 Anti tip device basket 33 4370033 1
Anti tip device basket 36 4370036 1
Anti tip device basket 39 4370039 1
Anti tip device basket 42 4370042 1
2 Wheel-tube anti-tip basket compl. 4370021 1
3 Tube, anti tip 33 4370233 1
Tube, anti tip, 36 4370236 1
Tube, anti tip, 39 4370239 1
Tube, anti tip, 42 4370242 1
4 Casterfork anti-tip basket compl. 4370020 1
5 Wheel tube, anti tip, basket 4370002 1
6 Antitip wheel basket 2404003 1
7 Wheel anti-tip basket 4370005 1
8 Hinge Clamp double 4601116 1
Clamp Pin outer double 4601113 1
Hinge clamp inner 4601111 2
Springy Tube-pin 3x26 9000326 2
9 Quick-Release 4250007 1
10 Bearing 2000021 4
11 Spacer anti-tip basket 4370004 2
12 Socket plastic, basket 4370001 1
13 Bushing mellan anti-tip basket 4370003 1
14 Endplug, IKP 19-15/17, black 9000330 1
15 Bolt M6S 8.8M8x45 fzb 6001845 1
16 Lock nut DIN 985 steel M8 fzb 7000080 1
17 Bolt, MLC6S M6x40 fzb 6002640 1
18 Washer, BRB steel 6.4x12 fzb 8000612 10
19 Washer, M8 8000816 1
20 Washer, BRB steel 4,3x9x0,8 fzb 8000409 1
21 Screw RXS 4,2 x 9,5 6005611 1
22 Screw, RXS B6x9,5 6005609 3
23 Nut DIN 439 B steel M8 fzb 7000082 1
24 Lock nut, DIN 985 steel M6 fzb 7000060 2
25 Clamp basket anti tip 28 4370011 2
26 Clamp basket anti tip 19 4370010 2
27 Bolt MC6S8.8 M6x110, fzb 6002601 8
28 Adapter 18gr antitip. Basket 4370025 2
29 Bolt, MC6S 8,8 M6x20 fzb 6002620 8
Back



















Exploded view clamps anti-tip BT

Clamps 10 degrees

Clamps 12 degrees

  Description art.no qty
1 Clamp c-axle, 19 tube 3331019 2
2 Bracket c-axle, 2 track 3331928 2
3 Clamp basket anti-tip 28 4370011 2
4 Clamp basket anti-tip 19 4370010 2
5 Bolt MC6S M6x65, fzb 6002665 8
6 Washer, BRB steel 6,4x12, fzb 8000612 8
no Description art.no qty
1 Clamp c-axle, 19 tube 3331019 2
2 Bracket c-axle, 2 track 3331928 2
3 Clamp basket anti-tip 28 4370011 2
4 Clamp basket anti-tip 19 4370010 2
5 Bolt MC6S M6x65, fzb 6002665 8
6 Washer, BRB steel 6,4x12, fzb 8000612 8

Clamps 14 degrees

Clamps 18 degrees

no Description art.no qty
1 Clamp c-axle, 19 tube 3331019 2
2 Bracket c-axle, 2 track 3331928 2
3 Bracket c-axle, o19 track 3331900 2
4 Clamp basket anti-tip 28 4370011 2
5 Clamp basket anti-tip 19 4370010 2
6 Bolt MC6S M6x75, fzb 6002675 8
7 Washer, BRB steel 6,4x12, fzb 8000612 8
  Description art.no qty
1 Clamp c-axle, 19 tube 3331019 2
2 Bracket c-axle, 2 track 3331928 2
3 Bracket c-axle, o19 track 3331900 2
4 Clamp basket anti-tip 28 4370011 2
5 Spacer bracket, c-axle 3331000 6
6 Clamp basket anti-tip 19 4370010 2
7 Bolt MC6S M6x110, fzb 6002601 8
8 Washer, BRB steel 6,4x12, fzb 8000612 8
Back
