DESCRIPTION ART.N0. QTY
One hand brake U2 light 33, 24" right 3673033 1
One hand brake U2 light 36-39, 24" right 3673600 1
One hand brake U2 light 42, 24" right 3674200 1
One hand brake U2 light 33, 24" left 3683033 1
One hand brake U2 light 36-39, 24" left 3683600 1
One hand brake U2 light 42-45, 24" left 3684200 1
You are here: start / support / expired articles / one hand brake U2 light

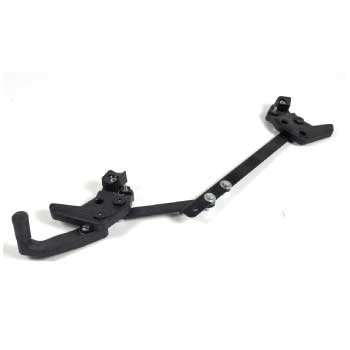

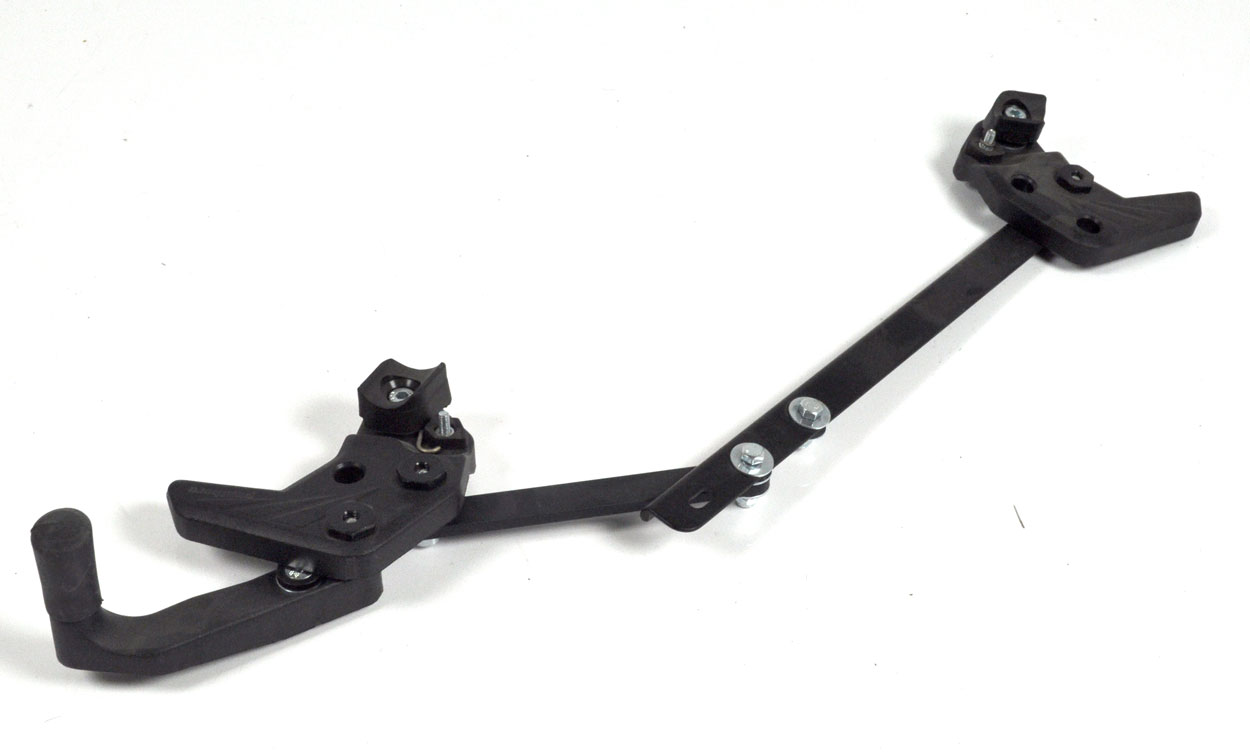

ONE HAND BRAKE U2 LIGHT FOR 24" REAR WHEEL

Highslide JS
large image
oLightBox.com v3.0

EXPLODED VIEW RIGHT

pos Description art.no qty
1 Brake onehand U2 light 33, 24" right 3673300 1
  Brake onehand U2 light 36-39, 24" right 3673600 1
  Brake onehand U2 light 42, 24" right 3674200 1
2 Jointlink long U2 light 33 3670230 1
  Jointlink long U2 light 36-39 3670236 1
  Jointlink long U2 light 42-45 3670242 1
3 Jointlink single-handed brake, 33 3670126 1
  Jointlink single-handed brake, 36-39 3670127 1
  Jointlink single-handed brake, 42-45 3670128 1
4 Brake arm, right single-handed brake 3670119 1
5 Brake arm, left single-handed brake 3670120 1
6 Lever, right single-handed brake 3670121 1
7 Link, small single-handed brake, New 3670117 1
8 Spring-attachment right 3670124 1
9 Spring-attachment left 3670125 1
10 Spring, right single-handed brake 3670112 1
11 Spring, left single-handed brake 3670113 1
12 Bushing single-handed brake 3670111 1
13 Bushing armrest 7001021 4
14 Stop, single-handed brake 3670123 2
15 Bushing S2 brake light 3670204 1
16 Bushing link single-handed brake 3670118 3
17 Attachment plate brake U2 light 3670206 2
18 Bolt MLC6S M6x25, fzb 6002626 2
19 Bolt, MLC6S M6x18 fzb 6002618 1
20 Bolt MC6S M4x20 fzb 6002421 2
21 Bolt MF6S M5x16  insex fzb 6007516 2
22 Washer, BRB steel 6.4x12 fzb 8000612 2
23 Washer, NB steel 6x19x1 fzb 8000619 5
24 Washer, M5x16x1 8000516 8
25 Washer NB 5x13x1 fzb 8000513 1
26 Lock nut DIN 985 steel M5 fzb 7000050 3
27 Nut DIN 934 M4 fzb 7000041 2
28 Friction plate brake U2 light 3670207 1
29 Bolt M6S M5x20, fzb 6001520 1
30 Bolt M6S M5x14, fzb 6001514 1
31 Washer M5, fzb 8000510 2
32 Washer FBB M5, fzb 8000511 2
oLightBox.com v3.0

EXPLODED VIEW LEFT

pos Description art.no qty
1 Brake onehand U2 light 33, 24" left 3683300 1
  Brake onehand U2 light 36-39, 24" left 3683600 1
  Brake onehand U2 light 42, 24" left 3684200 1
2 Jointlink long U2 light 33 3670230 1
  Jointlink long U2 light 36-39 3670236 1
  Jointlink long U2 light 42-45 3670242 1
3 Jointlink single-handed brake, 33 3670126 1
  Jointlink single-handed brake, 36-39 3670127 1
  Jointlink single-handed brake, 42-45 3670128 1
4 Brake arm, right single-handed brake 3670119 1
5 Brake arm, left single-handed brake 3670120 1
6 Lever, left single-handed brake 3670122 1
7 Link, small single-handed brake, New 3670117 1
8 Spring-attachment right 3670124 1
9 Spring-attachment left 3670125 1
10 Spring, right single-handed brake 3670112 1
11 Spring, left single-handed brake 3670113 1
12 Bushing S2 brake 3670111 1
13 Bushing armrest 7001021 1
14 Stop, single-handed brake 3670123 2
15 Bushing S2 brake light 3670204 4
16 Bushing link single-handed brake 3670118 2
17 Attachment plate brake U2 light 3670206 2
18 Bolt MLC6S M6x30, fzb 6002630 1
19 Bolt MLC6S M6x25, fzb 6002626 2
20 Bolt MC6S M4x20 fzb 6002421 2
21 Bolt MF6S M5x16  insex fzb 6007516 2
22 Washer, BRB steel 6.4x12 fzb 8000612 2
23 Washer, M5x16x1 8000516 7
24 Washer NB steel 6x16x1 fzb 8000616 1
25 Washer, NB steel 6x19x1 fzb 8000619 7
26 Washer FBB M5 fzb 8000511 2
27 Washer M5 8000510 1
28 Friction plate brake U2 light 3670207 1
29 Bolt M6S M5x20, fzb 6001520 1
30 Bolt M6S M5x14, fzb 6001514 1
31 Bolt, MF6S M6x40 fzb 6007640 1
32 Knob left single-handed brake 3670129 1
33 Knob LN 93 20-M6 9000400 1
34 Lock nut DIN 985 steel M5 fzb 7000050 3
35 Nut DIN 934 M4 fzb 7000041 2
36 Washer, NB steel 5x13x1 fzb 8000513 1

LOWERING-KIT

pos Description art.no qty
  Lowering kit single-handed brake U2 light 3670070

  Description
1 Spacer widening high brake 10mm 4600040 3
2 Bolt MLC6S M6x30 fzb 6002630 1
3 Bolt MLC6S M6x35 fzb 6002635 1
4 Bolt MF6S M5x30  insex fzb 6007530 1
5 Washer, NB steel 6x16x1 fzb 8000616 2
6 Washer, NB M5x16x1 fzb 8000516 1

ADDITION KIT ONEHAND BRAKE, U2 LIGHT, FOR 26” REAR WHEELS

pos Description art.no qty
1 Spring attachment right, single hand brake new 3670124 2
2 Spacer castorwheel 9024000 2
3 Bolt MC6S M6x22, fzb 6002622 2
4 Washer NB steel 6x19x1, fzb 8000619 2
5 Washer BRB steel 6,4x12, fzb 8000612 2
6 Lock nut DIN 985 steel M6, fzb 7000060 2
