FITS
S2 / S3 NO / NO
S2 short / S3 short NO / NO
S2 short-low NO
S2 large NO
S2 swing / S3 swing NO / NO
S2 swing-short NO
U2 / U3 NO / NO
U2 light YES
Bambino NO
Micro NO
Panthera X NO

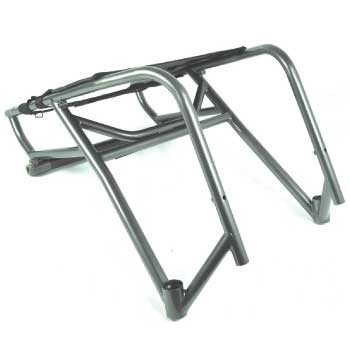

Chassis for model U2 light.
DESCRIPTION ART.N0. QTY
Chassis U2 light 33 gray metallic w rear axle 3033340 1
Chassis U2 light / L 33 gray metallic 3033350 1
Chassis U2 light 33 black w rear axle 3033340BL 1
Chassis U2 light 36 gray metallic w rear axle 3033640 1
Chassis U2 light 36 black w rear axle 3033640BL 1
Chassis U2 light 39 gray metallic w rear axle 3033940 1
Chassis U2 light 39 black w rear axle 3033940BL 1
Chassis U2 light 42 gray metallic w rear axle 3034240 1
Chassis U2 light 42 black w rear axle 3034240BL 1
Chassis U2 light 45 gray metallic w rear axle 3034540 1
Chassis U2 light 45 black w rear axle 3034540BL 1
You are here: start / products / parts / chassis / U2 light

CHASSIS U2 LIGHT

Highslide JS
large image
oLightBox.com v3.0

EXPLODED VIEW

pos Description art.no qty
1 Chassis U2 light, w 36 3033640 1
  Chassis U2 light/L, w 36 3033650 1
  Chassis U2 light, w 39 3033940 1
  Chassis U2 light/L, w 39 3033950 1
  Chassis U2 light, w 42 3034240 1
  Chassis U2 light/L, w 42 3034250 1
2 Calf strap, 33 bred 3700033 1
  Calf strap, 36 bred 3700036 1
  Calf strap, 39 bred 3700039 1
  Calf strap, 42 bred 3700042 1
  Calf strap, 45 bred 3700045 1
3 Velcro 3700100 2
4 End plug U2 light 9030012 2
5 Screw, RXS B6x9,5 6005609 2
6 Bolt M5x35 insex stainless 6002536 2
7 Lock nut DIN 985 stainless steel M5 7000052 2
8 Rubber protection 10x45 R3 Not possible to order separately 4810224 2
