FITS
S2 / S3 NO / NO
S2 short / S3 short NO / NO
S2 short-low NO
S2 large NO
S2 swing / S3 swing NO / NO
S2 swing-short NO
U2 / U3 NO / YES
U2 light NO
Bambino NO
Micro NO
Panthera X NO
Chassis to model S3.
DESCRIPTION ART.NO. QTY
Chassi U3 33 black sparepart 5110033BL 1
Chassi U3 36 black sparepart 5110036BL 1
Chassi U3 39 black sparepart 5110039BL 1
Chassi U3 42 black sparepart 5110042BL 1
Chassi U3 45 black sparepart 5110045BL 1
You are here: start / products / parts / chassis / U3

CHASSIS U3

Highslide JS
large image
oLightBox.com v3.0

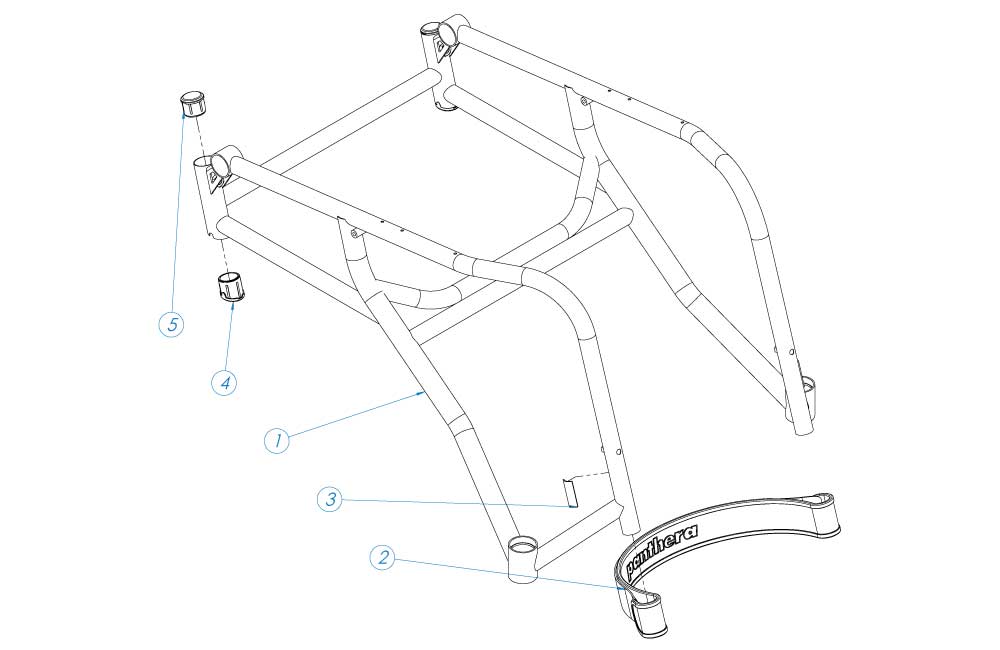

EXPLODED VIEW

pos Descriptiom   art.no qty
1 Chassi U3 33 black sparepart 5110033BL 1
  Chassi U3 36 black sparepart 5110036BL 1
  Chassi U3 39 black sparepart 5110039BL 1
  Chassi U3 42 black sparepart 5110042BL 1
  Chassi U3 45 black sparepart 5110045BL 1
2 Calf strap Panthera 33 3700233 1
  Calf strap Panthera 36 3700236 1
  Calf strap Panthera 39 3700239 1
  Calf strap Panthera 42 3700242 1
  Calf strap Panthera 45 3700245 1
  Calf strap Panthera 50 3700250 1
3 Velcro cut 3700100 2
4 End-plug S3 lower 9030014 2
5 End-plug S3 Upper 9030013 2
