FITS
S2 / S3 NO / NO
S2 / S3 short YES,width 36-45 / NO
S2 / S3 short-low YES, width 33-39 / NO
S2 / S3 large NO / NO
S2 / S3 swing NO / NO
S2 / S3 sw-short YES, width 36-4 / NO
U2 / U3 YES / NO
U2 / U3 light YES / NO
Bambino NO
Micro NO
Panthera X NO
NB! This seat fits U2 short and also S2 short. However not with seat extension. The seatdepth is 35 cm.

NOTE ! Read info sheet about new fabric in textile. Also, see image 2.
NOTE ! Read info sheet about the seat extension,
DESCRIPTION ART.N0. QTY
Seat  U2 33 cpl 3273314 1
Seat  U2 36 cpl 3273614 1
Seat  U2 39 cpl 3273914 1
Seat  U2 42 cpl 3274214 1
Seat  U2 45 cpl 3274514 1
Seat S2 short with bar Short 30 (326mm) without extender 3273035 1
Seat S2 short with bar Short 33 (326mm) without extender 3273335 1
Seat S2 short with bar Short 36 (326mm) without extender 3273635 1
Seat S2 short with bar Short 39 (326mm) without extender 3273935 1
Seat S2 short with bar Short 72 (326mm) without extender 3274235 1
Seat S2 short with bar Short 45 (326mm) without extender 3274535 1
You are here: start / products / parts / seat / U2

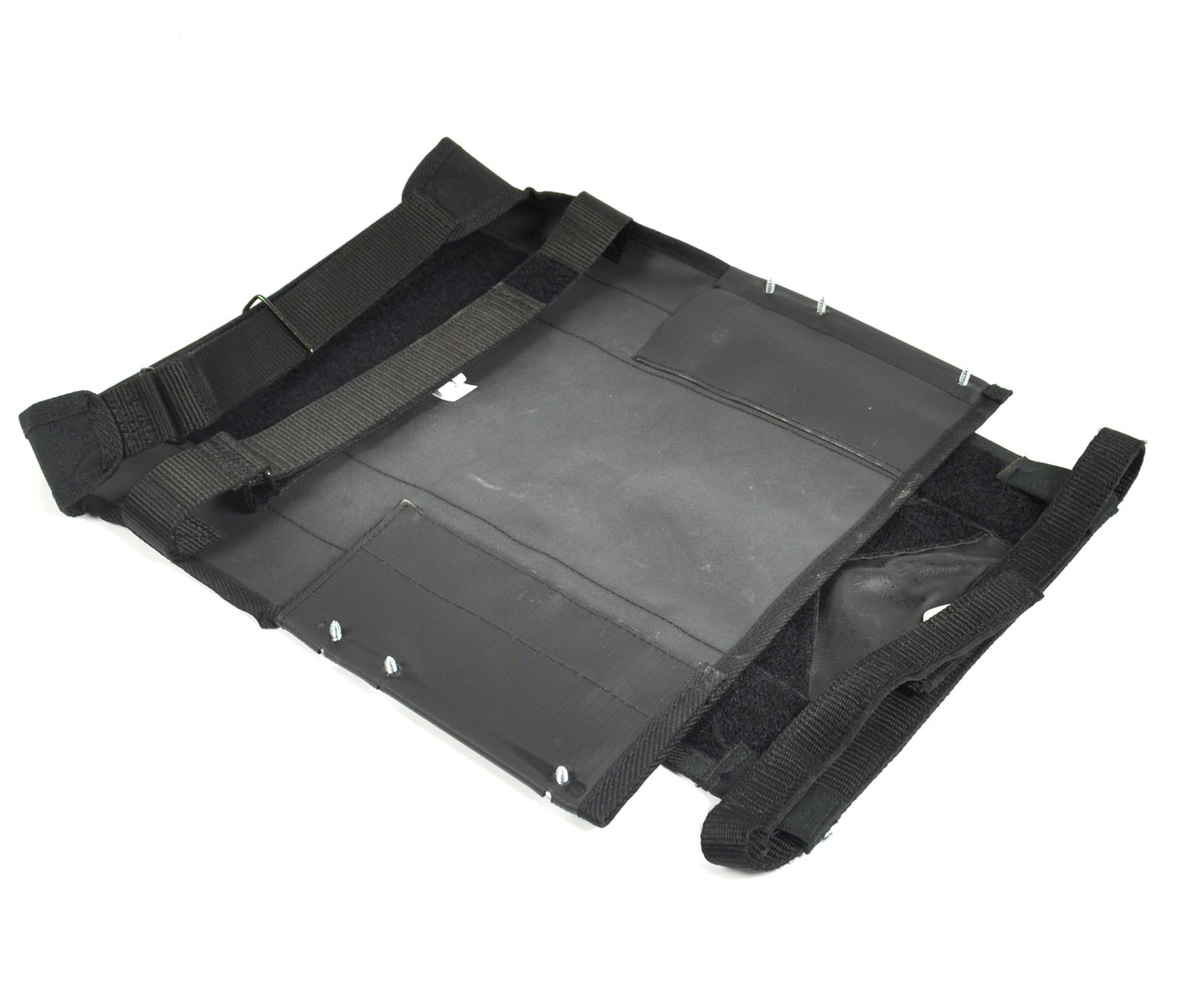

SEAT U2(ALL), S2 SHORT WIDTH 36-45

Highslide JS
large image
oLightBox.com v3.0

EXPLODED VIEW

pos Benämning  art.nr antal
1 Seat  U2 33 cpl 3273314 1
  Seat  U2 36 cpl 3273614 1
  Seat  U2 39 cpl 3273914 1
  Seat  U2 42 cpl 3274214 1
  Seat  U2 45 cpl 3274514 1
2 Seat  m bar Short 30 (326mm) 3273035 1
  Seat  m bar Short 33 (326mm) 3273335 1
  Seat  m bar Short 36 (326mm) 3273635 1
  Seat  m bar Short 39 (326mm) 3273935 1
  Seat  m bar Short 42 (326mm) 3274235 1
  Seat  m bar Short 45 (326mm) 3274535 1
3 Seat extension U2 33 Replaced with 5273337 see info sheet above 3273316 1
  Seat extension U2 36 Replaced with 5273637 see info sheet above 3273615 1
  Seat extension U2 39 Replaced with 5273937 see info sheet above 3273915 1
  Seat extension U2 42 Replaced with 5274237 see info sheet above 3274215 1
  Seat extension U2 45 Replaced with 5274537 see info sheet above 3274516 1
4 Bar Short sits 3893500 2
5 Screw KFXS steel B8x13 fzb 6004816T 6
6 Klädselbricka AL 8001313 6
