Seat upholstery for X.

NOTE ! Read info sheet about the seat extension,
DESCRIPTION ART.N0. QTY
Seat upholstery X br 33 short complete 3273312 1
Seat upholstery X br 36 short complete 3273612 1
Seat upholstery X br 39 short complete 3273912 1
Seat upholstery X br 42 short complete 3274212 1
Seat upholstery X br 45 short complete 3274512 1
You are here: start / products / parts / seat / X

SEAT X

Highslide JS
large image
oLightBox.com v3.0

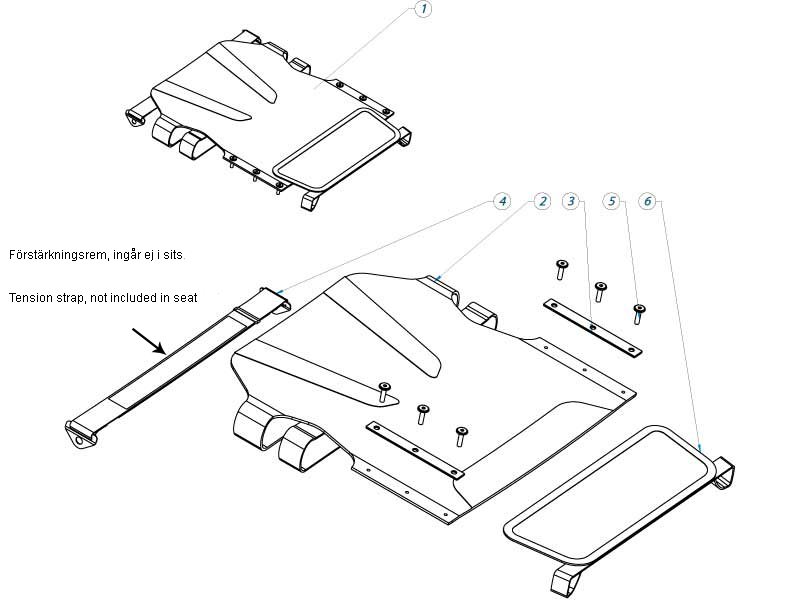

EXPLODED VIEW

pos Description  art.no qty
1 Seat uppholstery X 33 short compl 3273312 1
  Seat uppholstery X 36 short compl 3273612 1
  Seat uppholstery X 39 short compl 3273912 1
  Seat uppholstery X 42 short compl 3274212 1
  Seat uppholstery X 45 short compl 3274512 1
2 Seat uppholstery X short 33 without bar 3283310 1
  Seat uppholstery X short 36 without bar 3283610 1
  Seat uppholstery X short 39 without bar 3283910 1
  Seat uppholstery X short 42 without bar 3284210 1
  Seat uppholstery X short 45 without bar 3284510 1
  Seat uppholstery X short 33 WITH bar 3273310 1
  Seat uppholstery X short 36 WITH bar 3273610 1
  Seat uppholstery X short 39 WITH bar 3273910 1
  Seat uppholstery X short 42 WITH bar 3274210 1
  Seat uppholstery X short 45 WITH bar 3274510 1
3 Bar seat X 3893503 2
4 Tension strap X seat 33 3273318 1
  Tension strap X seat 36 3273618 1
  Tension strap X seat 39 3273918 1
  Tension strap X seat 42 3274218 1
  Tension strap X seat 45 3274518 1
5 Bolt MELC6S M5X20 phosphated 6004520 6
6 Seat extension X 33 Replaced with 5273337 see info sheet above 3273317 1
  Seat extension X 36 Replaced with 5273637 see info sheet above 3273617 1
  Seat extension X 39 Replaced with 5273937 see info sheet above 3273917 1
  Seat extension X 42 Replaced with 5274237 see info sheet above 3274217 1
  Seat extension X 45 Replaced with 5274537 see info sheet above 3274517 1
