FITS
S2 / S3 YES / NO
S2 / S3 short NO / NO
S2 / S3 short-low NO / NO
S2 / S3 large NO / NO
S2 / S3 swing YES / NO
S2 / S3 swING-short NO/ NO
U2 / U3 NO/ NO
U2 / U3 light NO/ NO
Bambino NO
Micro NO
Panthera X NO
NB! Seat upholstery for S2 50, is delivered with 2 screws, 2 washers and bar seat, Bambino.

See info sheet about new fabric in textile. Also, see image 2.
DESCRIPTION ART.N0. QTY
Seat upholstery with bar, 33 (376mm) 3273340 1
Seat upholstery with bar, 36 (376mm) 3273640  1
Seat upholstery with bar, 39(376mm) 3273940 1
Seat upholstery with bar, 42 (376mm) 3274240 1
Seat upholstery with bar, 45 (376mm) 3274540 1
Seat upholstery with bar, 50 (376mm) 3275040 1
You are here: start / products / parts / seat / standard

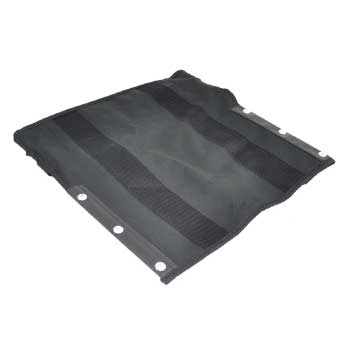

SEAT STANDARD

Highslide JS
large image
oLightBox.com v3.0

EXPLODED VIEW

pos Benämning art.nr antal
1 Seat upholstery with bar, 33 (376mm) 3273340 1
  Seat upholstery with bar, 36 (376mm) 3273640 1
  Seat upholstery with bar, 39 (376mm) 3273940 1
  Seat upholstery with bar, 42(376mm) 3274240 1
  Seat upholstery with bar, 45 (376mm) 3274540 1
  Seat upholstery with bar, 50 (376mm) 3275040 1
2 Bar, seat 3890000 2
3 Screw KFXS steel B8x13 fzb 6004816T 6
4 Washer upholstery 8001313 6
