PANTHERA U3 LIGHT Y-FRONT HIGH 4˚


- 4 degree seat angle

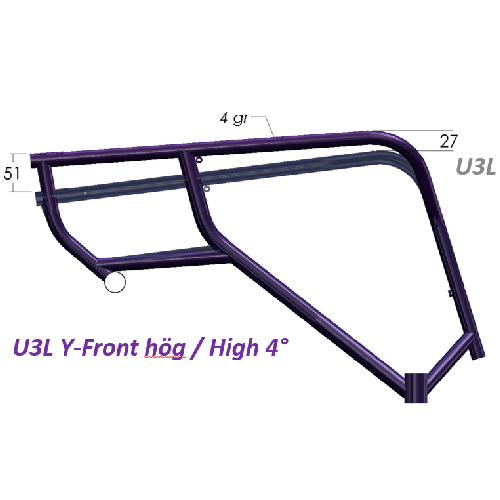

- U3 Light Y-front High is 27 mm highre at the front and 51 mm higher at    the rear than the U3 Light

- Full frame witdth for the user thighs

- Narrows in the front to collect the feet on a foot bow.

- Otherwise it has the same specifications as U3 LIGHT
Highslide JS
You are here: start / products / extended range wheelchairs / U3 ligh Y-front High
TRANSPORT WEIGHT: from 3730g
Panthera AB • Gunnebogatan 26 • 163 53 Spånga • Sweden• SE_Box_Spanga@permobil.com • Tel: +46-8-761 50 40

FACTS U3 LIGHT Y-FRONT HIGH


Model code G5808 G5808 G5808 G5808 G5808
A Seat width cm 33 36 39 42 45
B Total width 54 57 60 63 66
C Total length cm 76,5 76,5 76,5 76,5 76,5
D Total height cm 69-79 69-79 69-79 69-79 69-79
E Seat angle degrees 4° 4° 4° 4° 4°
F Seat height rear cm 48 48 48 48 48
G Seat height front cm 50 50 50 50 50
H Seat depth cm 35, 37,5 35, 37,5 35, 37,5 35, 37,5 35, 37,5
I Backrest angle back - forwards 17,3° - (-5°) 17,3° - (-5°) 17,3° - (-5°) 17,3° - (-5°) 17,3° - (-5°)
J Backrest height cm 20 - 45 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height in cm for the footrest positions
  Footrest standard 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44
  Footrest extended 38*,40,42,44,46 38*,40,42,44,46 38*,40,42,44,46 38*,40,42,44,46 38*,40,42,44,46
L Footrest angle degrees 100° 100° 100° 100° 100°
M Width cm 41 44 47 50 53
N Length cm 73 73 73 73 73
O Height cm 40 40 40 40 40
  Weight
Total U3 Light Y Front High (g) 6030 6080 6130 6180 6230
  Transport U3 Light Y Front High (g) 3730 3780 3830 3880

3930


  User weight (kg) 100 100 100 100 100
WEIGHT CONFIGURATION Art.no. for konfiguration. Not possible to order separately.
Chassis Chrome molybdenum tubing
Rear axle U3 light Width 33 5808133GP
Balancing 3 backrest positions Width 36 5808136GP
Rear wheels 24" X wheels Width 39 5808139GP
Push rim Aluminium Width 42 5808142GP
Brakes Onehand brake  Width 45 5808145GP
Castors 87 mm X castors
Foot rest Aluminum X
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual *Need to shorten the footrest

ACCESSORIES U3 LIGHT Y-FRONT HIGH

ARM SUPPORT S3
SIDE GUARD S3
SIDE GUARD CARBON
SIDE GUARD CARBON SMALL
SIDE GUARD CARBON LARGE
PUSH HANDLE FOLDABLE
CUSHION
SEAT BAG
OTHER

PARTS U3 LIGHT Y-FRONT HIGH

Drivhjul Drivhjul Bakaxel Bakaxel sITS SITS cHASSI cHASSI Fotsstöd Rygglås Rygglås Framgaffel Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
