Fäste till sidoskydd med skärm.
DESCRIPTION ART.NO. QTY
Attachment, sideguard with cover, pair 4420013 pair
You are here: start / products / accessories / side guard / attachment / with cover

ATTACHMENT FOR SIDE GUARD COVER

Highslide JS
large image
oLightBox.com v3.0

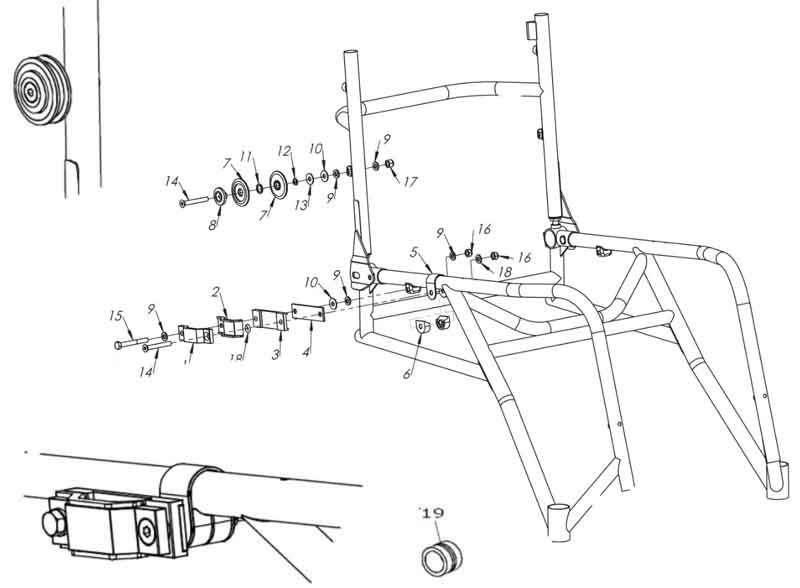

EXPLODED VIEW

Upp
pos Description art.no qty
1 Clamp armrest attachment 4410081 2
2 Bushing armrest 4410082 2
3 Bushing sideguard Bambino 4430050 2
4 Attachment plate sideguard Bambino 4430030 2
5 Reinforcment-loop 9000601 2
6 Bracket armrest clamp 4410021 4
7 Plastic roll, backrest (sideguards with cover) 4420020 4
8 Roll, backrest (sideguards with cover) 4420027 2
9 Washer, BRB steel 6.4x12 fzb 8000612 10
10 Washer, NB steel 6x16x1 fzb 8000616 4
11 Washer AL, 10x14x1 8001014 2
12 Washer AL, 6x10x1 8000610 2
13 Washer, 6x25x1,5 fzb 8000625 2
14 Bolt MF6S M6x45 6007645 4
15 Bolt M6S M6x45 10.9 6001646 2
16 Lock nut, DIN 985 steel M6 fzb 7000060 4
17 Lock nut DIN 985 steel M6 fzb 7000061 2
18 Washer, FBB M6 fzb 8000611 4
19 Spacer, Axle housing, 16 mm 9018016 2
