FITS
S2 / S3 YES / NO
S2 short / S3 short YES / NO
S2 short-low / S3 short-low YES / NO
S2 large / S3 large YES / NO
S2 swing / S3 swing YES / NO
S2 swing-short / S3 swing-short YES / NO
U2 / U3 YES / NO
U2 light / U3 light NO / NO
Bambino YES w. adaptation
Micro NO
Panthera X NO

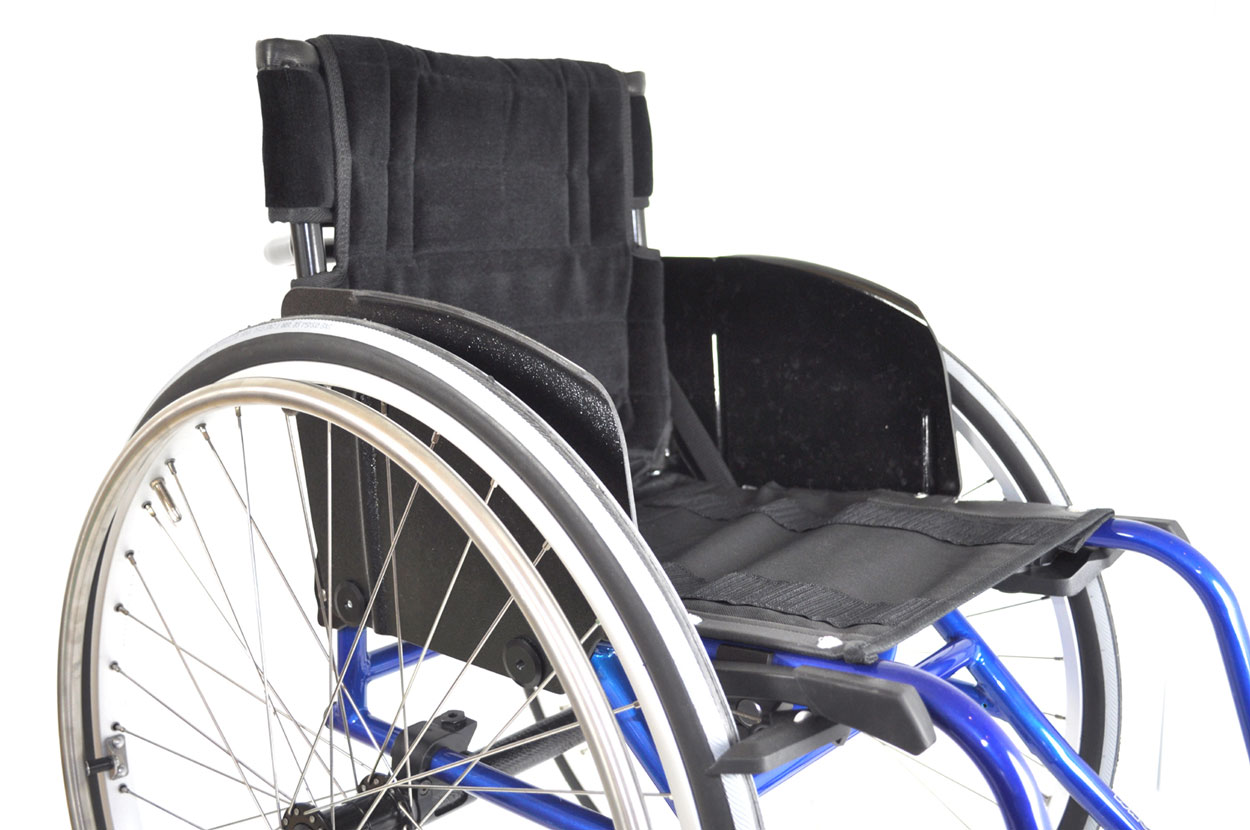

  A light weight sideguard without cover with attachment only to the chassis which makes it possible to fold the back rest without removing the side guard.
Side guard Plastic 26” will stop being produced due to low consumtion. Will be delivered as long as we have them in stock. (2018 May-25)
DESCRIPTION ART.NO. QTY
Sideguards plastic new, pair 4400010  pair
Sideguards plastic 26", pair 4400040  pair
You are here: start / products / accessories / side guard / plastic

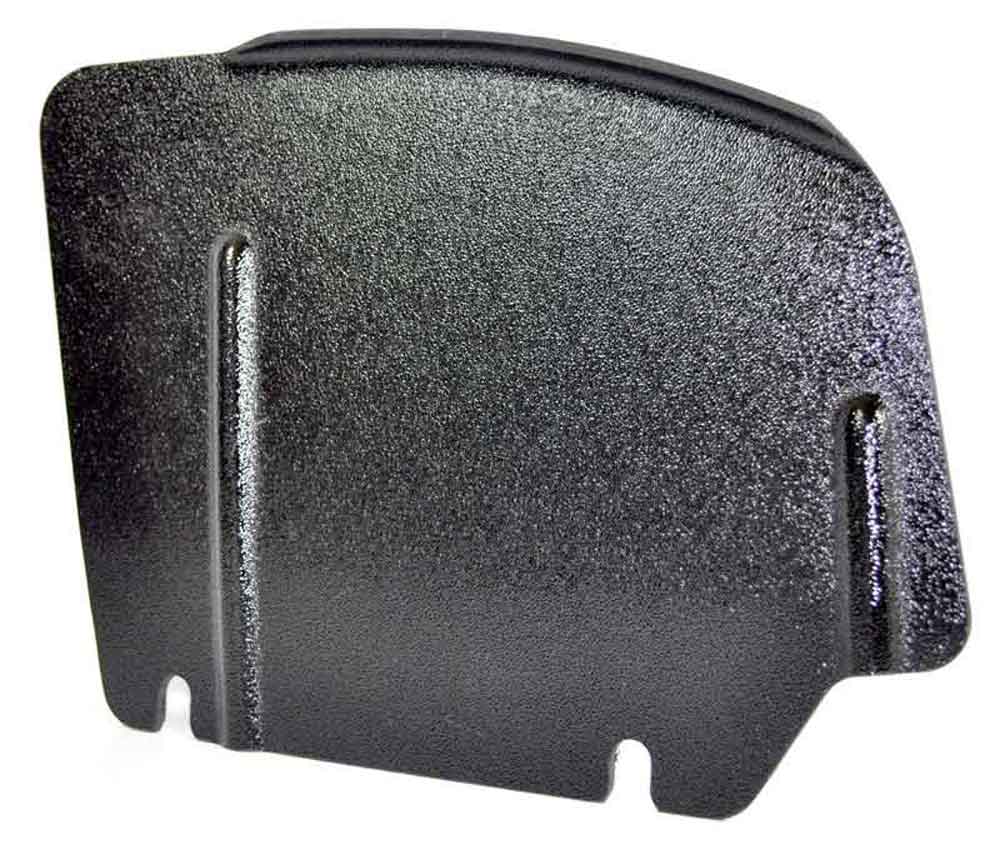

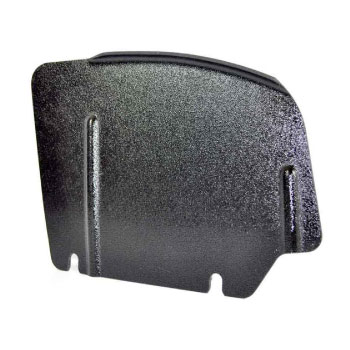

SIDE GUARD PLASTIC

Highslide JS
large image
oLightBox.com v3.0

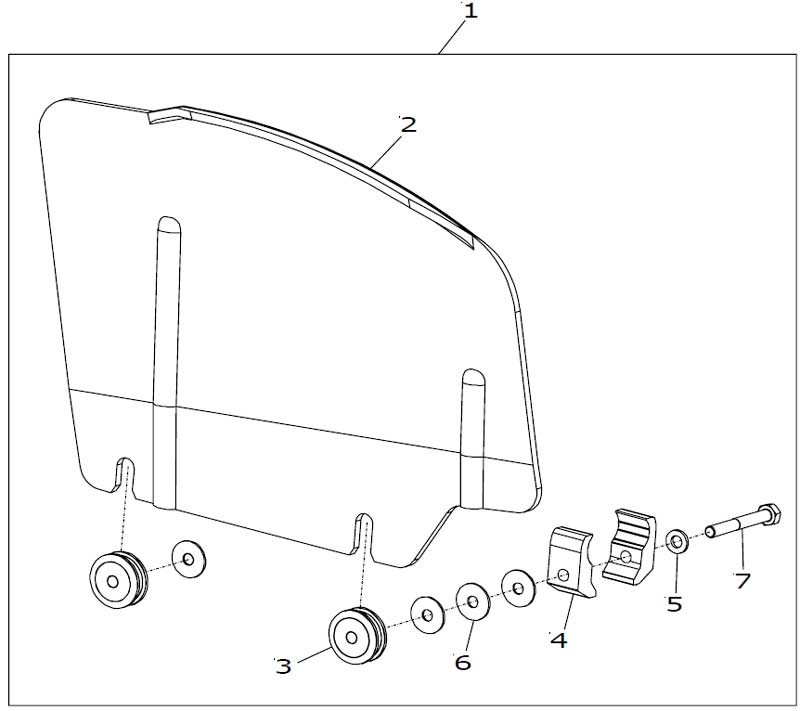

EXPLODED VIEW

Upp
pos Description art.no qty
1 Sideguards Plastic new pair 4400010 1
  Sideguards Plastic 26" pair 4400040 1
2 Sideguards plastic right New model 4400011 1
  Sideguards plastic left New model 4400012 1
  Sideguards plastic right 26" 4400041 1
  Sideguards plastic left 26" 4400042 1
3 Roll, sideguards 4400004 2
4 Clamp 4600008 2
5 Washer, BRB steel 6.4x12 fzb 8000612 1
6 Washer NB steel 6x19x1 fzb 8000619 4
7 Bolt M6S M6x45 10.9 6001646 1
