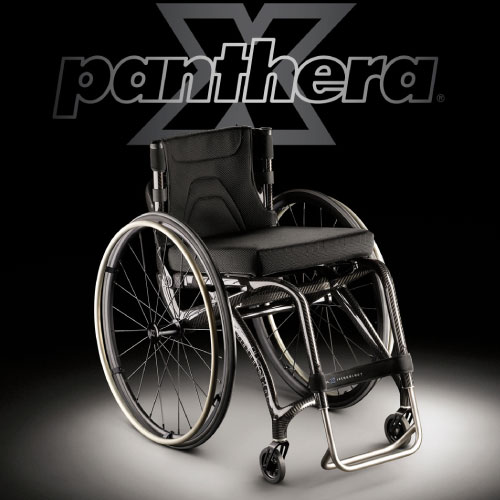

PANTHERA X

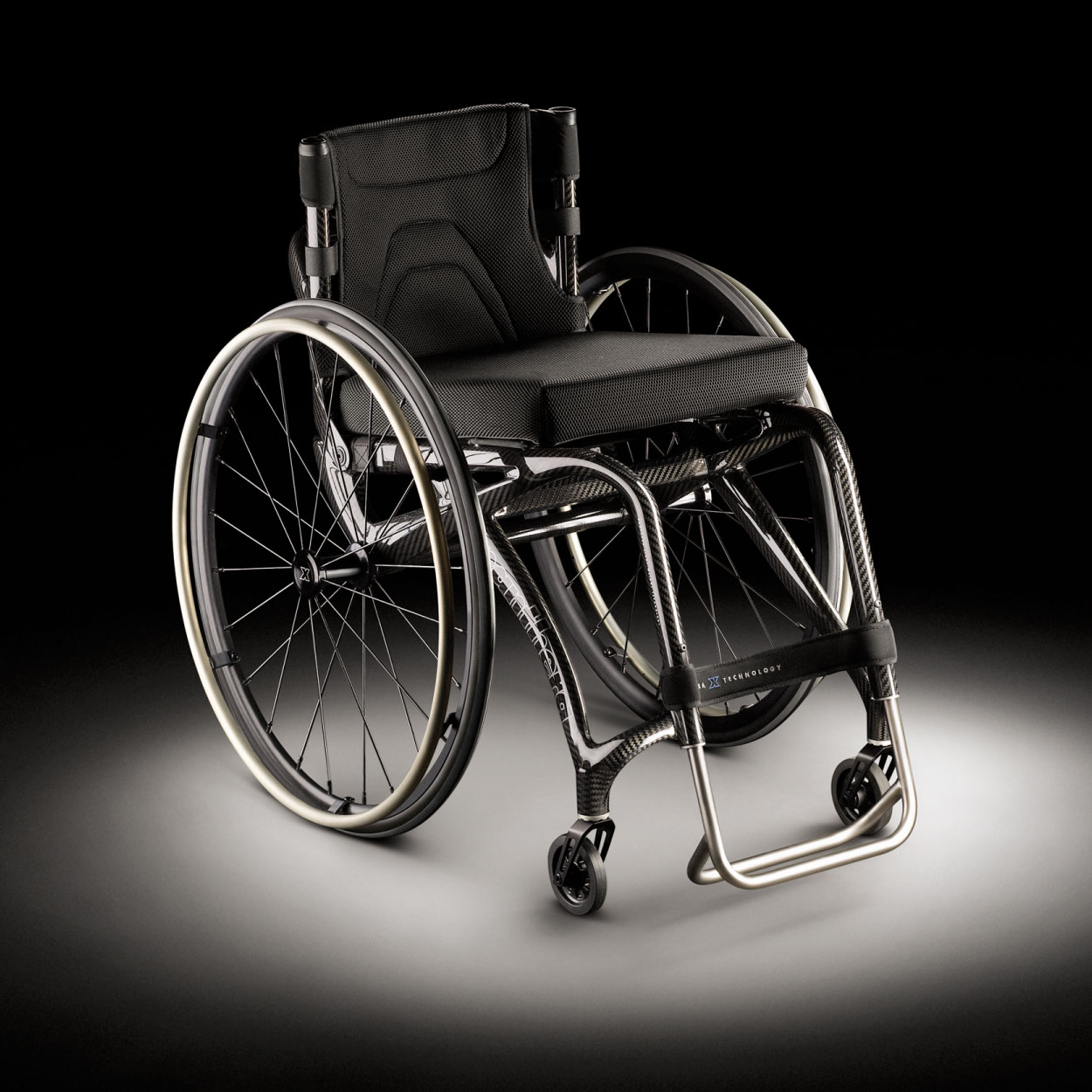

Panthera X is completely new construction with chassis and back rest frame made of carbon fibre The carbon fibres fantastic lightness and strength makes Panthera X by far the lightest wheelchair in the world, with a transport weight of incredible 2,1 kg.

With new state of the art technology to place the fibres in the right direction we have increased the strength even more. The lightness and stiffness of the chassis makes Panthera X fantastic to drive and to lift into, e.g. a car.

Panthera X has a built-in rear axle, just like Panthera U2 light, To balance the chair you choose one of the 4 positions of the attachment for the backrest. The angle of the backrest is adjustable and the backrest height can be selected between 22 and 35 in steps of 1 cm. The footrest is adjustable in height.



You are here: start / products / Panthera X
TRANSPORT WEIGHT: from 2100 g      MORE INFO ABOUT CARBON FIBRE

FACTS X

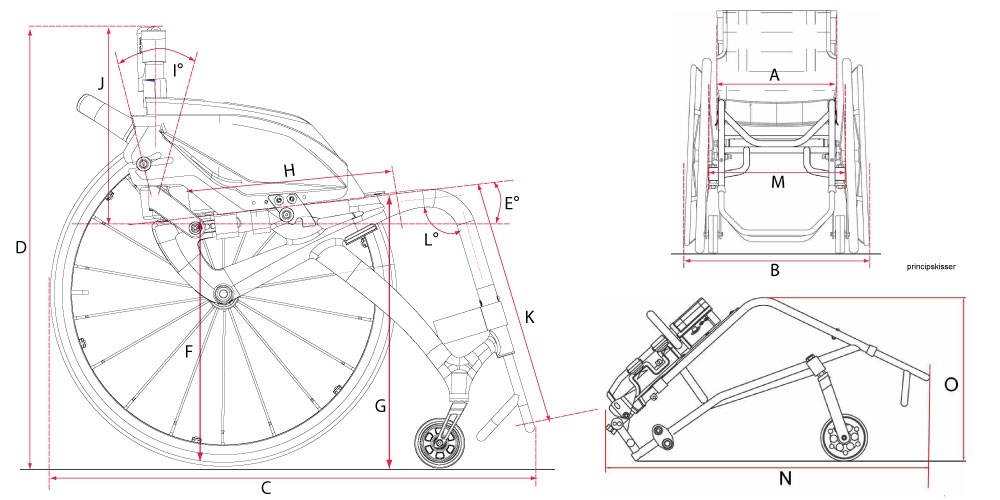

  Model code G350 G350 G350 G350 G350
A Seat width cm 33 36 39 42 45
B Total width 54 57 60 63 66
C Total length cm 82,5 82,5 82,5 82,5 82,5
D Total height cm 64-84 64-84 64-84 64-84 64-84
E Seat angle degrees
F Seat height rear cm 43 43 43 43 43
G Seat height front cm 47 47 47 47 47
H Seat depth cm 35-46 35-46 35-46 35-46 35-46
I Backrest angle back - forwards 4,5°-11,5° 4,5°-11,5° 4,5°-11,5° 4,5°-11,5° 4,5°-11,5°
J Backrest height cm 22 - 35 22 - 35 22 - 35 22 - 35 22 - 35
K Footrest height mm min - max

L Footrest angle degrees 100° 100° 100° 100° 100°
M Width cm 40 43 46 49 51
N Length cm 74 74 74 74 74
O Height cm 38,5 38,5 38,5 38,5 38,5
  Weight


Total (g) 4400 4450 4500 4550 4600
Transport (g) 2100 2150 2200 2250 2300

User weight (kg) 100 100 100 100 100
STANDARD DESIGN Art.no. for configuration, not possible to order separately
Chassis Carbon fibre Width 33 3503311G
Rear axle X rear axle Width 36 3503611G
Balancing 4 positioning holes Width 39 3503911G
Rear wheels 24" X Width 42 3504211G
Push rim Titanium  Width 45 3504511G
Brakes Onehand brake X
Castors 3"
Foot rest Footrest, aluminum
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual

ACCESSORIES X

SIDEGUARD CARBON
SMALL
SIDEGUARD CARBON
LARGE
SIDEGUARD U2 LIGHT
CUSHION
TUBE PROTECTION
TRANSPORT
PROTECTION
ARM HOOK
OTHER

PARTS X

Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul Brake Brake Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul

MORE INFO ABOUT CARBON FIBRE

Carbon fiber is a fantastic light and strong material that provides incredibly beautiful properties to a wheelchair. However, carbon fiber is sensitive to impact, shock and scratches. If you happen to fall off the chair at high speed and hit the ground hard, you can have the misfortune to have damage to the chassis or backrest. Therefore, we now present a list of different types of repairs that can be done at Panthera X. See info sheet 2012-08!
