PASSAR TILL
S2 / S3 YES / NO
S2 kort / S3 kort YES / NO
S2 kort låg YES
S2 large YES
S2 swing / S3 swing YES / NO
S2 swing kort YES
U2 / U3 YES / NO
U2 light NO
Bambino NO
Micro NO
X NO
Foldable push handles. To be mounted on the back res. Possible to swing away sideways.
DESCRIPTION ART.NO. QTY
Push Handles foldable, pair EXPIRED replaced with 4245000 4230000 pair
You are here: start / products / accessorie /push handle / foldable

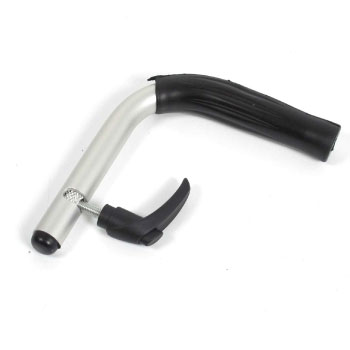

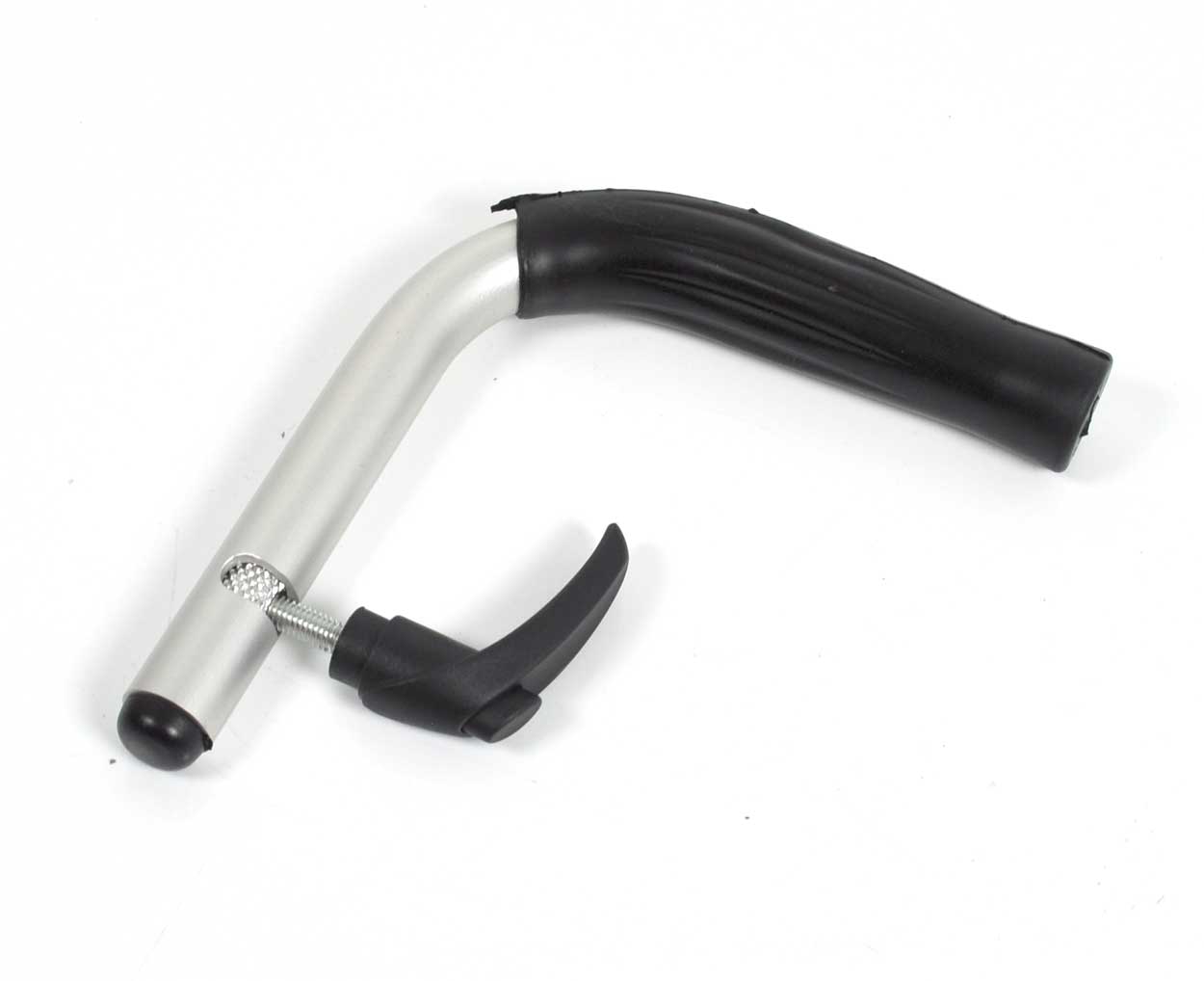

PUSH HANDLE FOLDABLE

Highslide JS
large image
oLightBox.com v3.0

EXPLODED VIEW

pos Description art.no qty
1 Handle fold, left, assembled 4230111 1
  Handle fold, right, assembled 4230112 1
2 Push-handle foldable, tube left 4230011 1
  Push-handle foldable, tube right 4230012 1
3 Push Handle, plastic 4200004 1
4 End-plug IK 16-12 black 9001612 1
5 Ratchet 4200001 1
6 Quick-Release 4250008 1
7 Washer, BRB steel 6.4x12 fzb 8000612 1
