FITS
S2 / S3 YES / NO
S2 short / S3 short YES / NO
S2 short-low YES
S2 large YES
S2 swing / S3 swing YES / NO
S2 swing-short YES
U2 / U3 YES / NO
U2 light NO
Bambino YES
Micro NO
Panthera X NO
DESCRIPTION ART.NO. QTY
Armrest, compl, pair 4430100 pair
Armrest, compl, pair, S2 large 4430105 pair
Armrest, Bambino compl, pair 4430110 pair
Armrest, compl, pair extended 35 mm 4430120 pair
Armrest, compl, pair extended 35 mm, S2 large 4430115 pair
Armrest, long cushion, compl, pair 4430130 pair
Armrest, long cushion, compl, pair, S2 large 4430125 pair
Armrest, long cushion, compl, pair extended 35 mm 4430140 pair
Armrest, long cushion, compl, pair extended 35 mm, S2 large 4430135 pair
You are here: start / products / accessories / side guard / arm rest

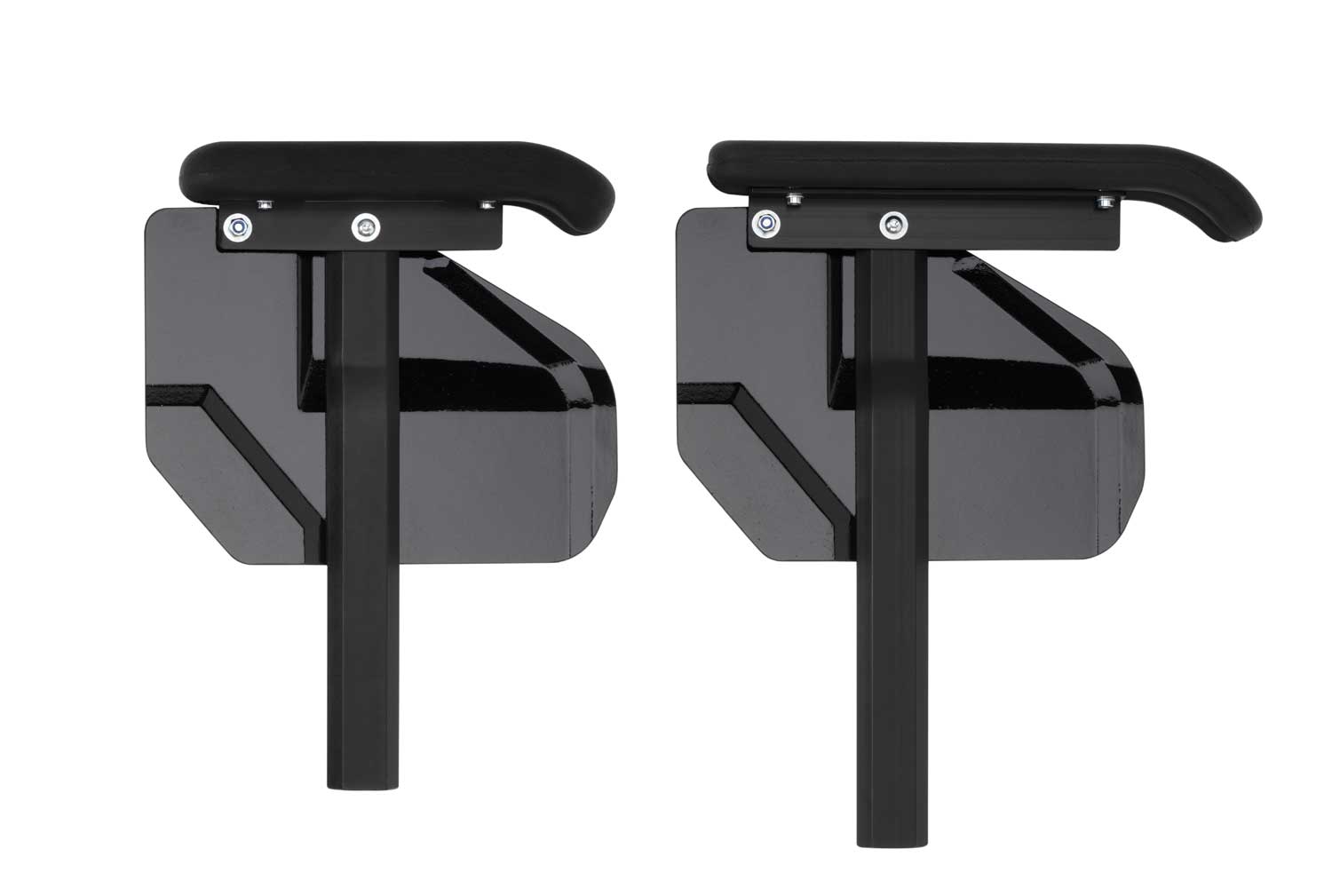

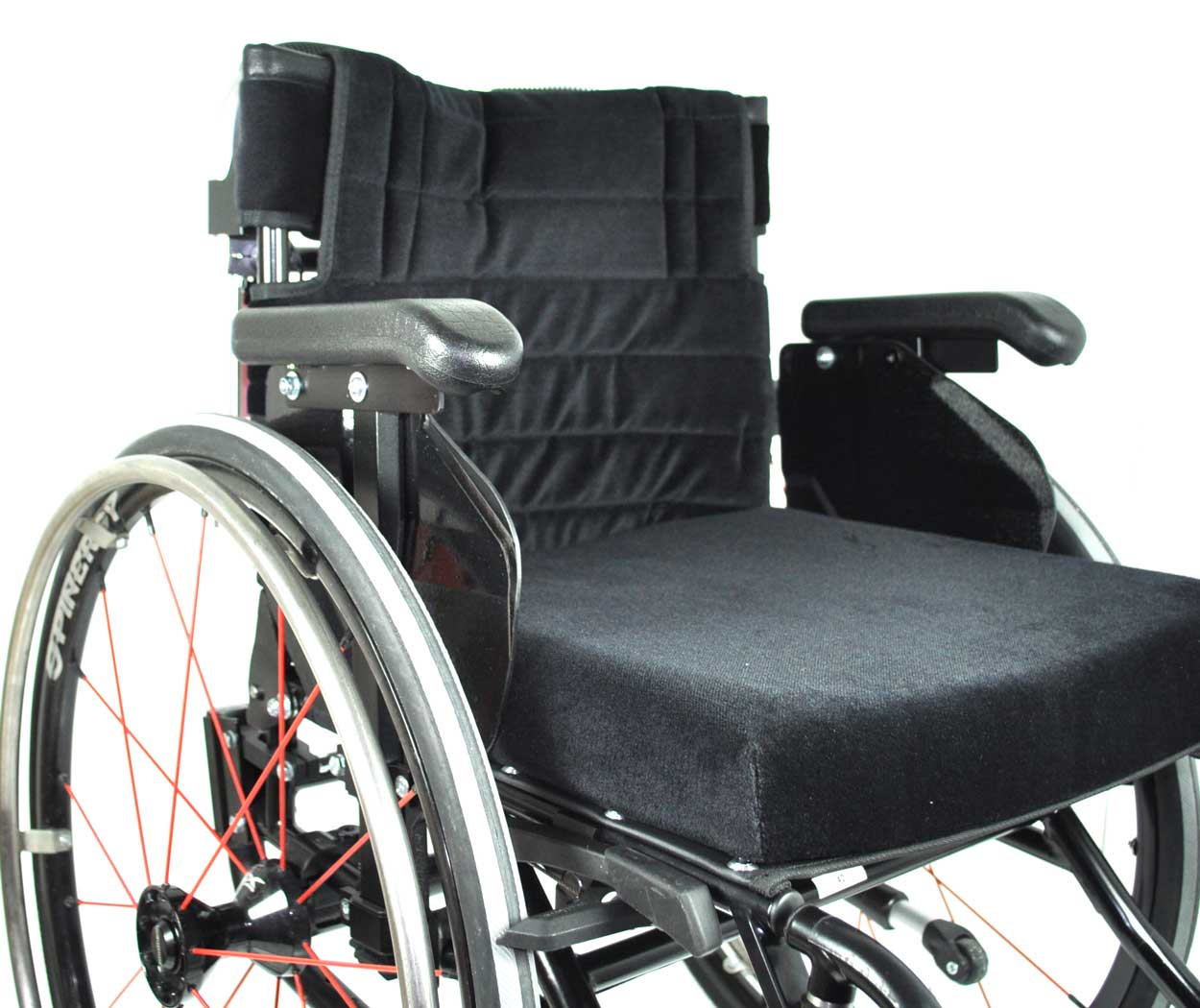

ARM REST WITH COVER PLATE

Highslide JS
large image
oLightBox.com v3.0

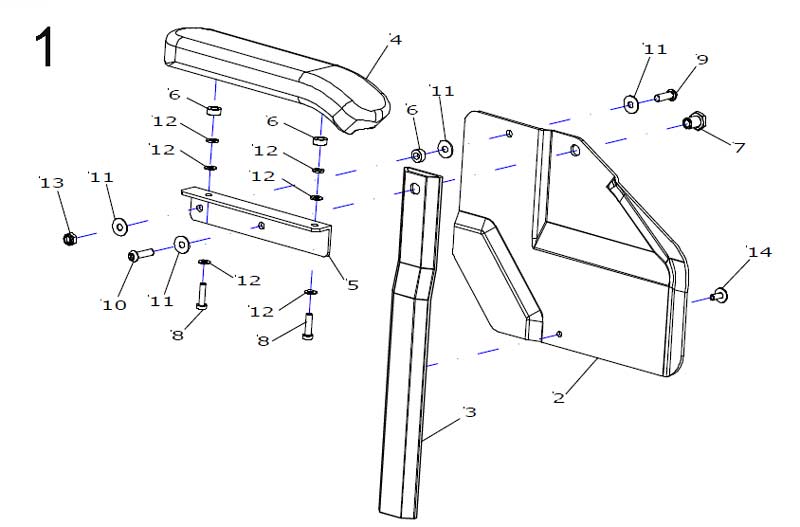

EXPLODED VIEW

Upp
pos Description art.no qty
1 Armrest, compl, right 4430101 1
  Armrest, compl, right long cushion 4430131 1
  Armrest, compl, right extended 35 mm 4430121 1
  Armrest, compl, right long cushion extended 35 mm 4430141 1
  Armrest, compl, left 4430102 1
  Armrest, compl, left long cushion 4430132 1
  Armrest, compl, left extended 35 mm 4430122 1
  Armrest, compl, left long cushion extended 35 mm 4430142 1
  Armrest, Bambino compl, right 4430101 1
  Armrest, Bambino compl, left 4430102 1
2 Cover plate armrest right 4430011 1
  Cover plate armrest left 4430012 1
3 Armrest tube 4410020 1
  Armrest tube extended 35 mm 4410022 1
4 Armrest cuishon 4430200 1
  Armrest cuishon long 4430201 1

5 L-profile armrest right 4412017 1
L-profile armrest right long 4412019 1
  L-profile armrest left 4412016 1
  L-profile armrest left long 4412018 1
6 Spacer, Casterwheel 9024000 3
7 Bushing armrest 7001021 1
8 Bolt, MLC6S M5x20, fzb 6002520 2
9 Bolt K6S 109 M6x20 6003620 1
10 Bolt K6S 109 M6x20 6003620 1
11 Washer, NB steel 6x16x1 fzb 8000616 4
12 Washer, M5 8000510 6
13 Lock nut, DIN 985 steel M6 fzb 7000060 1
14 Rivet, sideguard 9000701 1
