FITS
S2 / S3 YES / YES
S2 short / S3 short YES / YES
S2 short low YES
S2 large YES
S2 swing / S3 swing YES / YES
S2 swing short YES
U2 / U3 YES / YES
U2 light YES
Bambino NO
Micro NO
X YES
DESCRIPTION ART.NO QTY
Tetra Q-R compl Set pair 4800000 par
You are here: start / products / accessories / tetra QR / SPOX std

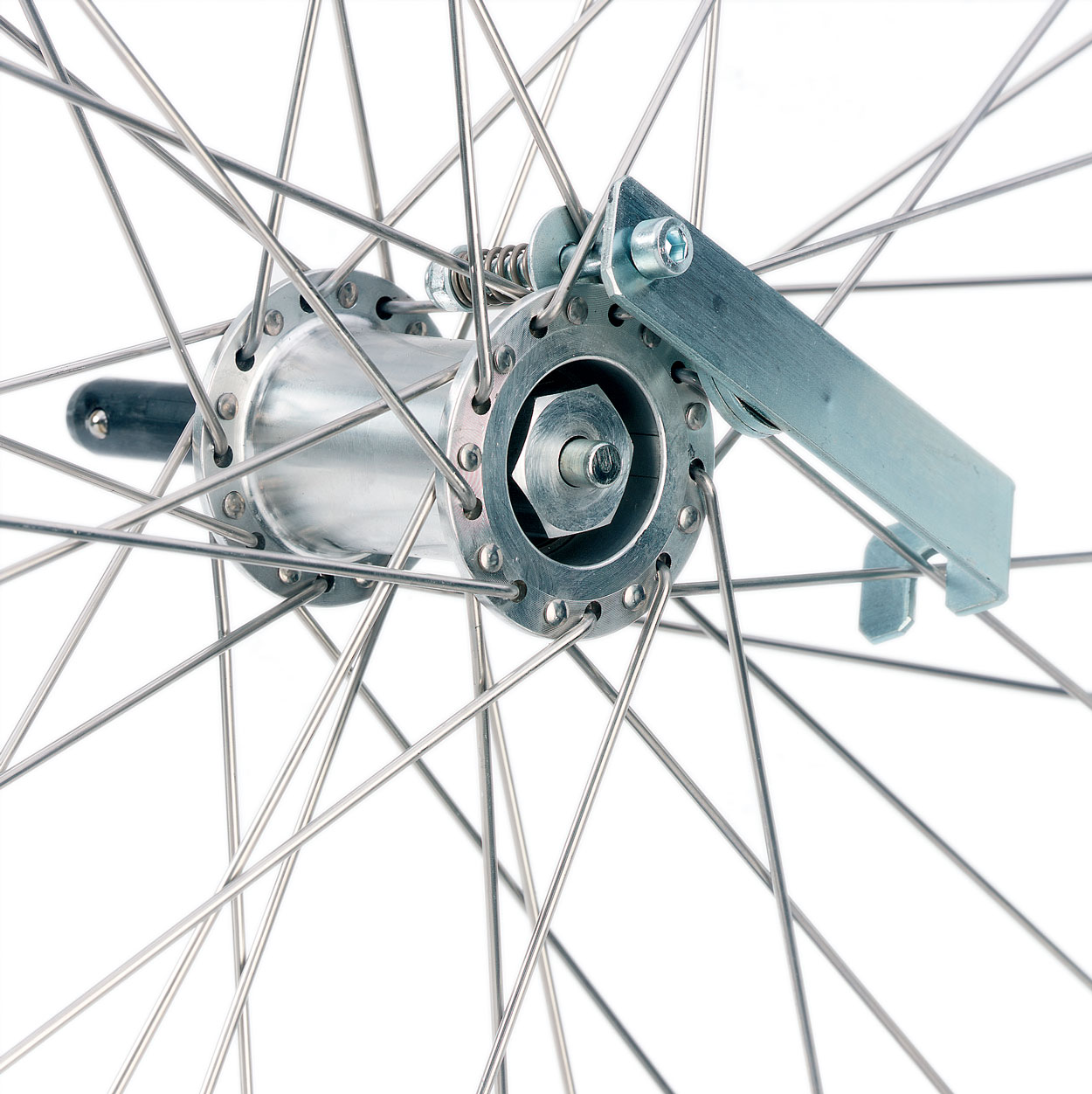

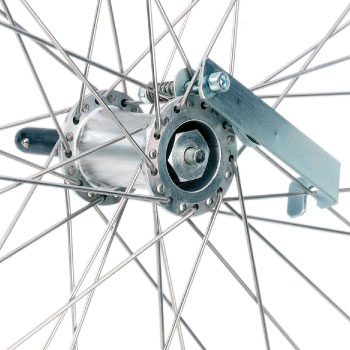

TETRA QUICK RELEASE STANDARD

Highslide JS
large image
oLightBox.com v3.0

EXPLODED VIEW

pos Description   art.no qty
1 Tetra Q-R comp Set pair 4800000 1
2 Tetra Q-R plate 4800001 2
3 Spring tetra Q-R RF 4800010 2
4 Bolt M5x35 Insex 6002535 2
5 Washer BRB steel 5,3x10x1 fzb 8000510 2
6 Washer NB M5x16x1 8000516 2
7 Nut DIN 985 M5 fzb low nylock 7000050 2
