FITS
S2 / S3 YES / NO
S2 short / S3 short YES / NO
S2 short-low YES
S2 large YES
S2 swing YES / NO
S2 swing-short YES
U2 / U3 YES / NO
U2 light NO
Bambino NO
Micro NO
Panthera X NO
For wheelchair with 26" rearwheels
DESCRIPTION ART.NO. QTY
Sideguards with cover 26", pair (inc.attachments) 4420040  pair
You are here: start / products / accessories / side guard / with cover 26"

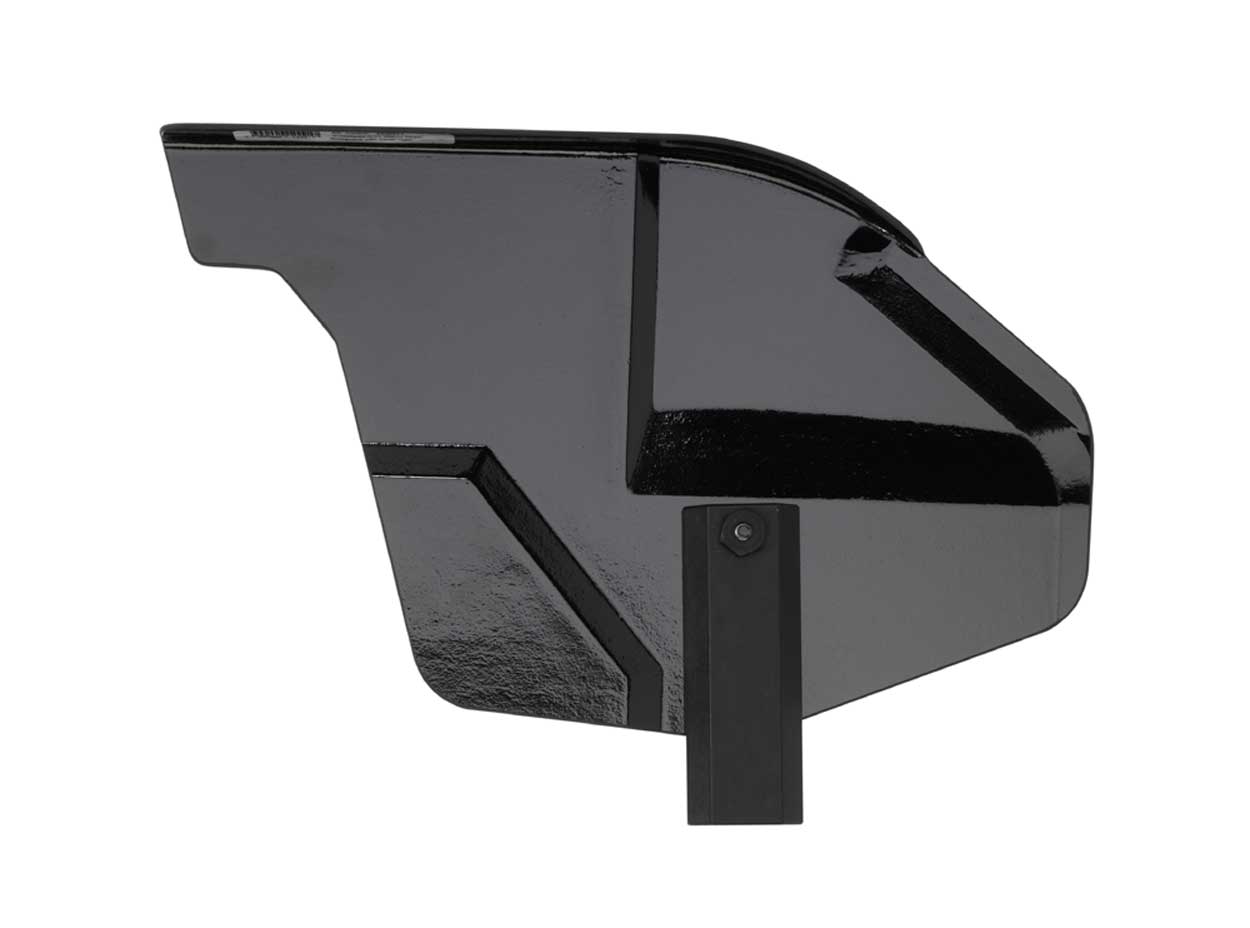

SIDE GUARD WITH COVER 26"

Highslide JS
large image
oLightBox.com v3.0

EXPLODED VIEW

Upp
pos Description art.no qty
1 Sideguards with cover 26", right 4420041 1
  Sideguards with cover 26", left 4420042 1
2 Cover plate sideguard with cover right 26" 4420213 1
  Cover plate sideguard with cover left 26" 4420214 1
3 Attachment tube sideguard with cover 26" 4420063 1
4 Bushing sideguard 7001020 1
5 Bolt MELC6S M6x20, black 6004620 1
6 Rivet, sideguard 9000701 1
7 Washer, M5 8000510 2
8 Bolt M6S M5x20, fzb 6001520 1
9 Lock nut DIN 985 steel M5 fzb 7000050 1
