FITS
S2 / S3 YES with reinforced footrest
S2 / S3 short YES with reinforced footrest
S2 / S3 short-low YES with reinforced footrest
S2 / S3 large YES with reinforced footrest
S2/ S3 swing NO
S2 / S3 swing-short NO
U2 / U3 YES with reinforced footrest
U2 light / U3 light YES with reinforced footrest
Bambino / Bambino 3 YES / YES
Micro / Micro 3 NO / NO
Panthera X YES with reinforced footrest
- Easily mounted on the wheelchair's footrest
- It dramatically increases accessibility on lawns, snowy parking lots, paths, gardens, curbs, etc.
- Intended for outdoor use
- Mounting, detaching of Freewheel is easily be done by the user sitting in the wheelchair
- Not intended as a sports equipment or to run at high speeds
- The weight of Freewheel is 2,3 kg

- Attachment to hang it on the backrest of the wheelchair when it´s not in use is also included
- (Attachment for backrest does not fit Panthera X)
- Panthera wheelchairs must have a reinforced footrest
- Bambino, a footrest with a Freewheel -kit mounted.
- Freewheel is an invention of Pat Dougherty from the USA and is manufactured there.
DESCRIPTION ART.NO. QTY
Freewheel Panthera( 6 - 11,5 cm footrest height) 2600102 1
Freewheel special height 5,5 ”(11,5-16,5 cm footrest height). 2600105 1
Freewheel special height 6,5” (14-  19 cm footrest height) 2600106 1
Freewheel special height 7,5” (16,5- 21,5 cm footrest height) 2600107 1
Freewheel special height 8,5” (19-  24 cm footrest height) 2600108 1
You are here: start / products / accessories/ freewheel

FREEWHEEL

Highslide JS

EXPLODED VIEW

pos. Description Art.no.
P003 Bearing 2602003
P004 Bushing2602004
P005 Fork2602005
P006 Ball2602006
P007 Spring2602007
P008 Cap/Knob2602008
P009 Steering Stem Bolt2602009
P010 Axel Screw (2)2602010
P011 Handle2602011
P012 Bolt Set 2602012
P013 Angle Bolt2602013
P014 Screw Set (6)2602014
P015 Barrel A2602015
P017 Barrel B in Brick2602017
P018 Rear End—LONG2602018
P019 Rear End—Short2602019
P020 Straight Shim—Thin2602020
P021 Straight Shim—Medium2602021
P022 Straight Shim—Thick2602022
Straight Shim—Thick105mm - Panthera2602039
P023 Brick2602023
P024 Pivot Pins (2)2602024
P025 Cup Shim w/screws (Not for Panthera footrest 19 mm)2602025
  Cup Shim w/screws for Panthera footrest 16 mm 2602041
P026 Clamp2602026
P027 Complete Perch Set - contains POS. P028, P029, P030, P31, P032, P033 2602027
P028 Round Perch Post (NOT for Panthera) Not possible to order separately 2602028
Round Perch Post - for Panthera Not possible to order separately 2602042
P029 Little D Perch Post Not possible to order separately 2602029
P030 Med. D Perch Post (NOT for Panthera) Not possible to order separately 2602030
P031 Big D Perch Post (NOT for Panthera) Not possible to order separately 2602031
P032 Perch Clamp Panthera ( 2602032+2602038 for Panthera wheelchairs) Not possible to order separately 2602032
P033 Q7 Perch Clamp Not possible to order separately 2602033
P034 Tire 2602034
P035 Tube 2602035
P037 Custom Frame 2602037
P038 FW Panthera SET shim/cup/post -- panthera model 2602038

P039

FW straight shim - Panthera 105 mm version A Not possible to order separately 2602039
P040 FW straight shim - Panthera 105 mm version B Not possible to order separately 2602040
P041 FW Cup shim w/screws 16 mm, for Panthera footrest 16 mm Not possible to order separately 2602041
P042 FW Perch post- PANTHERA 16 mm Not possible to order separately 2602042
P043 FW Perch post / Panthera- Kit, contains ( (P029 + PO32 + PO33 + P042))   2602070

BAMBINO / BAMBINO 3

To order a Freewheel for any of the Bambino-models do like this, NOTE footplate is not includedj.

ART.NO. QTY
1 ) Choose a Freewheel based upon the height of the footplate (measure between the floor and top of the footplate) INFO
Freewheel Panthera Bambino (excl.footplate) For footplate height 8-14 cm 2600102 1
Freewheel Panthera Bambino (excl.footplate) For footplate heigh 14-19 cm 2600106 1
Freewheel Panthera Bambino (excl.footplate) For footplate heigh 16,5-21,5 cm 2600107 1
Freewheel Panthera Bambino (excl.footplate) For footplate heigh 19-24 cm 2600108 1

2) Choose assembly-kit: ASSEMBLY VIDEO BAMBINO KIT

For wheelchair Bambino you add: Kit for assembly FreeWheel on Bambino art no, 2602061



Art.no 2602061 contains:
Location piece Freewhee 2602050 1
Attachment Bambino FreeWheel 2602053 1
Clamp standard, with thread M6 3331505 1
Strut 5 slots FW for B3 4360038 1
Clamp 4600008 1
Bolt M6S 88 M6x22 6001622 1
Bolt MF6S M6x40 6007640 1
Washer BRB steel 6,4x12 fzb 8000612 1
Washer NB steel 6x16x1 fzb 8000616 1
Springy Tube-pin 3x8 9000308 1

For wheelchair Bambino 3 (or if Footplate Bambino 3 is used) you add any of the following kit based upon the seat width of the wheelchair.
NOTE! The Bambino 3 FOOTPLATE swing-up function does not work in combination with Freewheel
Reinforcement kit FW Bambino 3 w 24 4234224 1
Reinforcement kit FW Bambino 3 br27 4234227 1
Reinforcement kit FW Bambino 3 br30 4234230 1
Reinforcement kit FW Bambino 3 br33 4234233 1

oLightBox.com v3.0

WHAT HEIGHT DOES THE FREEWHEEL HAVE

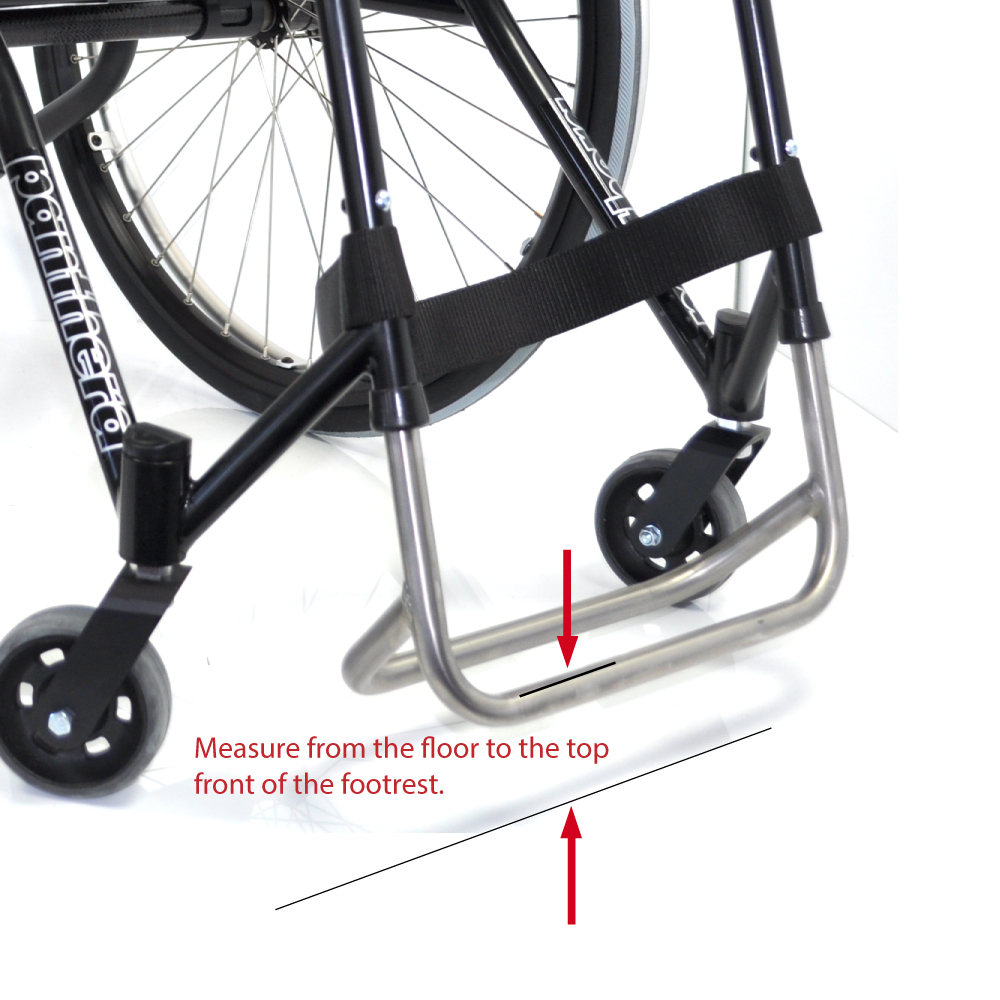

HOW TO MEASURE HEIGHT OF FOOTREST
